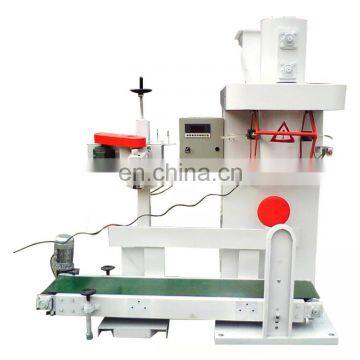

Animal Feed Pellet Packing Machine With Capacity 20kg per Bag
- China main port
- T/T Credit Card
You May Like
-
Clothing Baling Machine/clothes Bale Machine
-
China Sweet Potato Starch Extracting Machine
-
0086 13676938131 The Most Advanced Automatic Mushroom Bag Filling Machine Production Line
-
Automatic Mushroom Bagging Machine_mushroom Bag Filling Machine 0086 13676938131
-
Flammulina Velutipes Mushroom Bag Filling Machine 0086 13676938131
-
Tooth Claw Type Milling Machine, Animal Feed Milling Machine 0086-13676938131
Product Details
| Brand Name | Taizy | Place of Origin | Henan, China | |
| Certification | CE | Voltage | 380V | |
| Power | 1.1kw | Condition | New | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Packaging Type | Bags |
Product Description
animal feed pellet packing machine with capacity 20kg per bag
Feature:
1) Take three speeds feeding to guarantee the precision at min weight and the speed at max
weight.
2) The head of bag stitching machine, conveyor, and hot sealing machine can rise and fall.
And at the same time, the system is applied to sealing and convey with max and min bags.
3) There is shock-absorbing device in weighing system; it could avoid the shock of
other devices through floor and tube to affect the weighing system.
4) There is good seal in system, and it has dust catcher and aspirator.
5) The is guide groves in conveyor roller and guide bars in conveyor belts to avoid cracks.
Function:
1 .There is detecting device in system.
2 .Processes function of automatic modifying drop height.
3. Processes function of self-test, error pilot and fault code indication.
4.With the serial interfere to communicate the computer.
5.With five-figure password to control the accumulator in system.
6.Pre-set filling number in system.
Main technical parameters
Host Control:
Weighing capacity | 3~4 packs/min |
Weighing range | 2-50 kg / pack |
Weighing errors | ±0.3% |
Control method | PLC microcomputer control |
Power supply | AC380V |
Host power | 1.1kw |
Gas supply | No oil, clean instrument air |
Pressure | 0.4---0.5MPa |
Air Consumption | 0.4Nm3/min |
Conveyor:
The length of the conveyor | 2.0m |
Conveyor belt width | 400mm |
Maximum transmission capacity | 15 bags / min |
Power supply | AC380V |
Power | 0.75kw |
Joint charter:
Sealing Sewing Machine Model | SLGK3-18 |
Maximum sewing speed | 1700 stitches / min |
Needle gauge length | 6.5—11mm |
Maximum sewing thickness | 8 mm |
The stitches form of | double chain |
Suture Specification | 21S / 5,20 S / 3 Polyester line 30S / cotton |
Needle type | 80800 200-250 # |
Power supply | AC380V |
Power | 0.55kw |
Bags Type | spacious pockets |
Form | polypropene |
Detailed photos:
