Product Details
| Brand Name | TZ | Place of Origin | Henan, China | |
| After-sales Service Provided | Overseas third-party support available | Warranty | 1year | |
| Weight | 300kg | Dimension(L*W*H) | 1500*980*1360mm | |
| Voltage | 220-380V | Certification | ISO | |
| Condition | New | Power(W) | 5.5kw |
Product Description

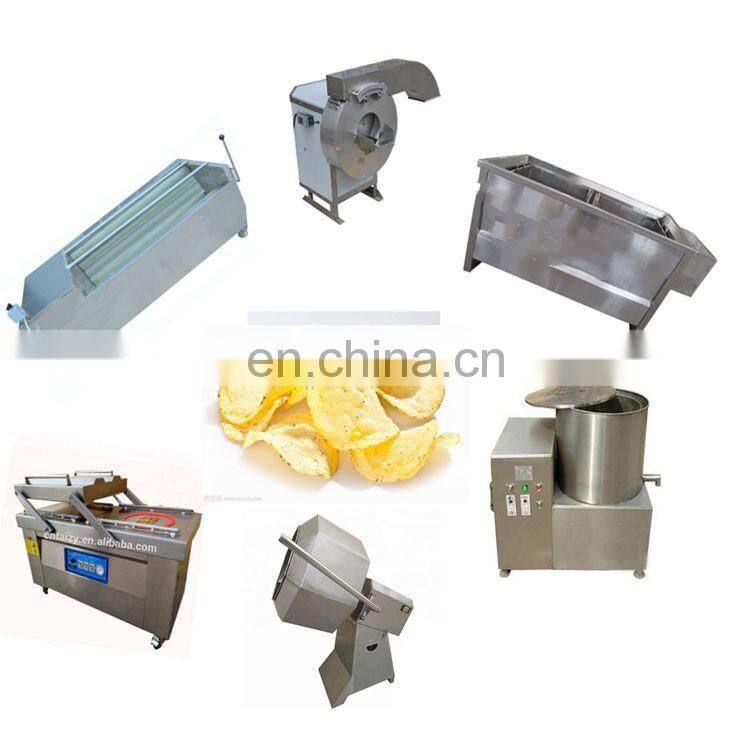

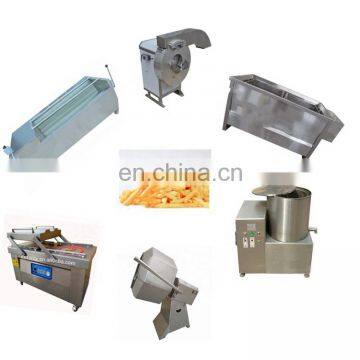

Potato chips production line

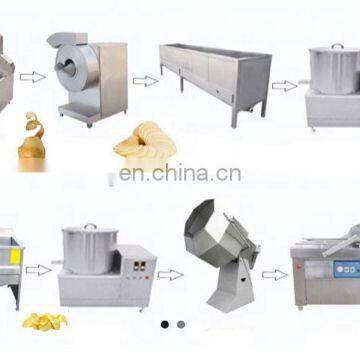

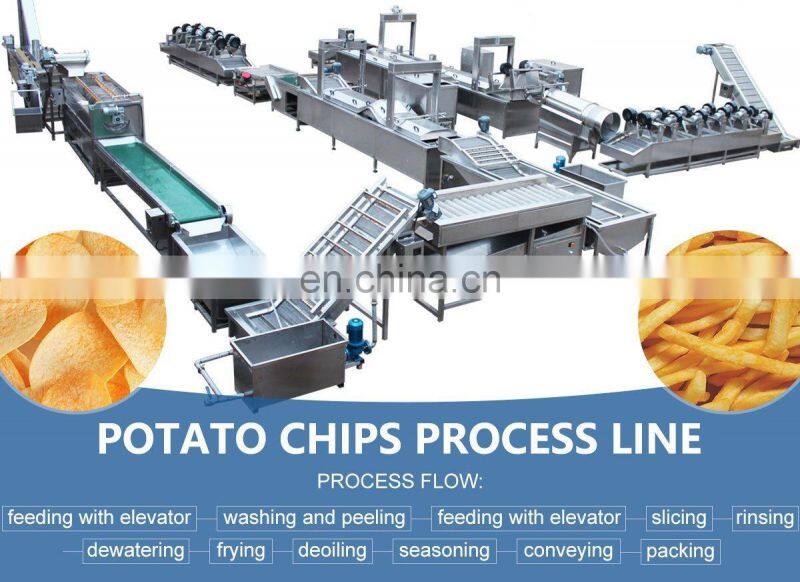

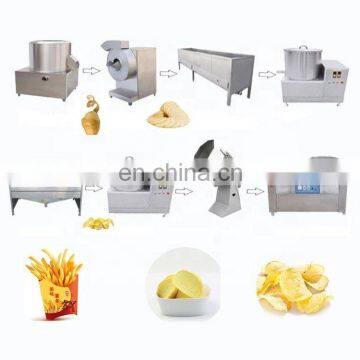

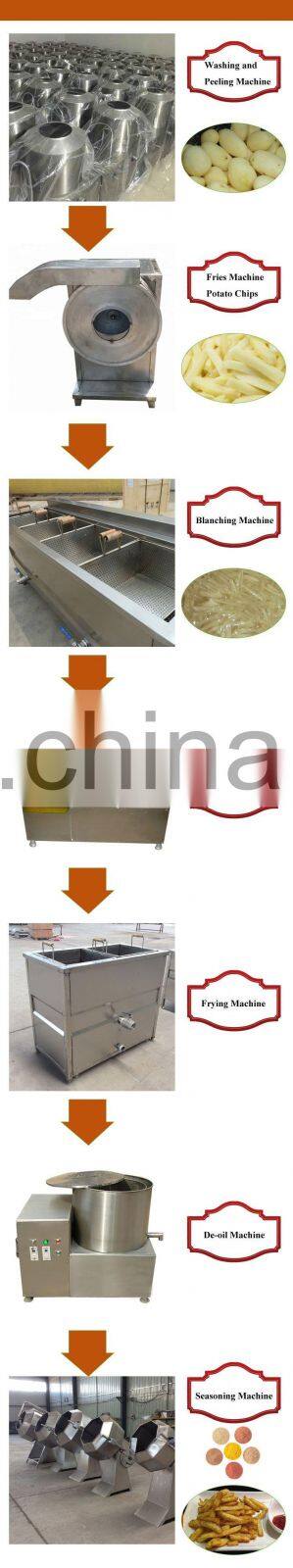

Process flowchart-potato crisp making machine
1.Cleaning and peeling machine
First connect the machine to the power, open water pipes, and then Add potatoes to the hopper,
about 3-5 minutes later, move the baffle at the expect mouth , potatoes will be out automatically.
2.Potato chips machine
Switch on the power, put the peeled clean potatoes into the feed continuously, then they will be cut into chips automatically.
3.Blanching machine
Shaped chips need to be rinsed or blanched, you can take the process in accordance with the choice of your treatment.
4.Dewaterer
Put the rinsed chips into the dewaterer for about two minutes ,then they can be fried.
5.Frying machine
Heat the oil to 170 degrees Celsius, then put the dehydrated potato chips into the frying machine for about 1.5 minutes,
french-fries about 5 minutes.
6.De-oiling machine:
De-oiling machine: put the fried chips into the De-oiling machine, then the chips will be ok for one minutes.
7.Automatic Seasoning machine
Put the deoiled chips into the seasoning machine , adding spices according to the tastes of your choice,
switch on the power, spices will be evenly attached to the French fries on potato chips.
8.Nitrogen Packing
The capacity is 60-100bags/hour
Generally ,these chips should be packed with Nitrogen.
Machines | Model | Motor(kw) | Size(mm) |
Cleaning and Peeling machine | TZTP-30 | 1.1kw/380v | 720*680*850 |
Potato chips machine | TZQS-400 | 1.5/380V | 730*590*860 |
Blanching machine | TZPT-1000 | 15/380v | 1350*650*700 |
Dewaterer | TZTS-500 | 0.75/380v | 940*830*560 |
Frying machine | TZDY-500 | 9kw/380v | 580*620*950 |
De-oiling machine: | TZTY-500 | 0.75/380V | 940*830*560 |
Seasoning machine | TZ--800 | 0.75/220V | 1000*800*1350 |
Packing machine | TZDZ-400 | 1/220v/380v | 1220*800*900 |
Pre-sales services
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements and circumstance to make the best design
* cost/benefit analysis
* to support factory layout
In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions
After-sales service
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
* use friendly English software, user manual and detailed Videos/CD
1. MOQ(Minimum Order Quantity)
One set is welcome, and mix products for order are welcome.
2. Delivery Time
Depending on your quantity, for goods we have in stock. Delivery takes few days to comply with your
request to replace the plug or other configurations. For regular order, by ocean shipping takes 20-40
days. For small machines, express delivery for 3-8 days.
3. Deviation
There might be sightly difference in color, because of the computer monitor settings .
With the difference in the measurement method, please allow 1-3cm in size deviation.
4. Package
Standard export wooden case or other packages depending on products
packaging weight is subject to the actual pack.
5. Service
welcome your compliments / complaints and suggestions. Any inquiries or complaints will be responsed within 24 hours
