Best Price Hot Compressed Wood Pallet Making Production Line

Mainly use wood sawdust and shaving or other scrap wood as raw materials,mixing with glue

in an certain ratio,extruding wood block by hot press heating pressure.The final wood block can be used as tray and foot pier replaced log.

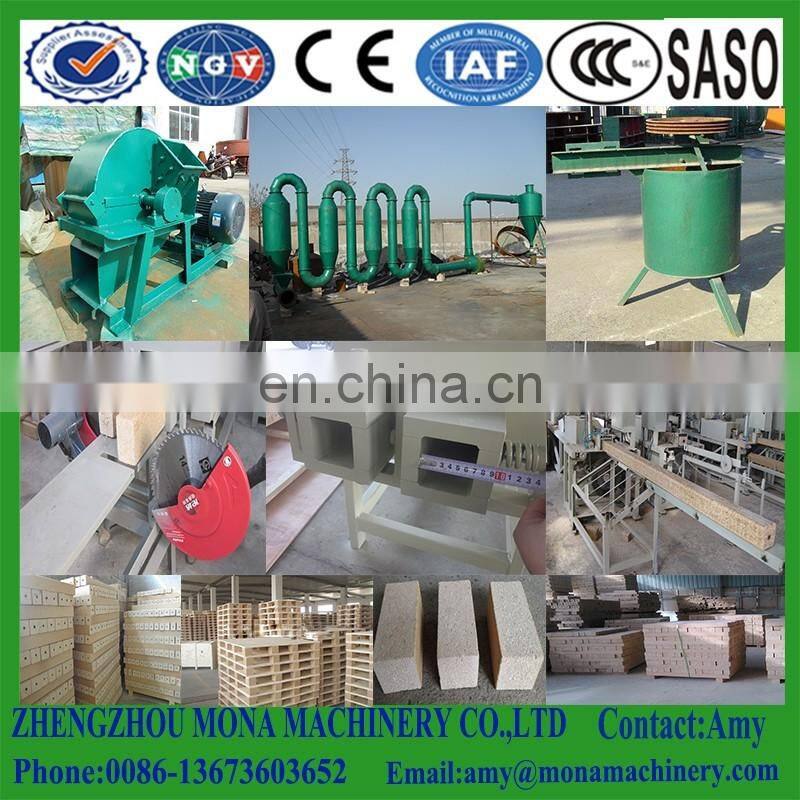

crusher→ dryer →glue blending → wood block pressing machine → sawing equipment

Raw materials

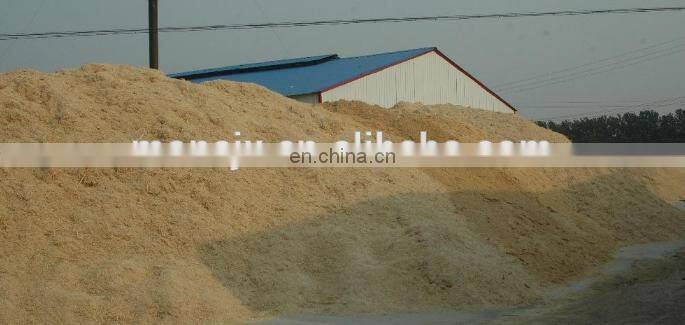

wood shavings, sawdust and the other wood waste material

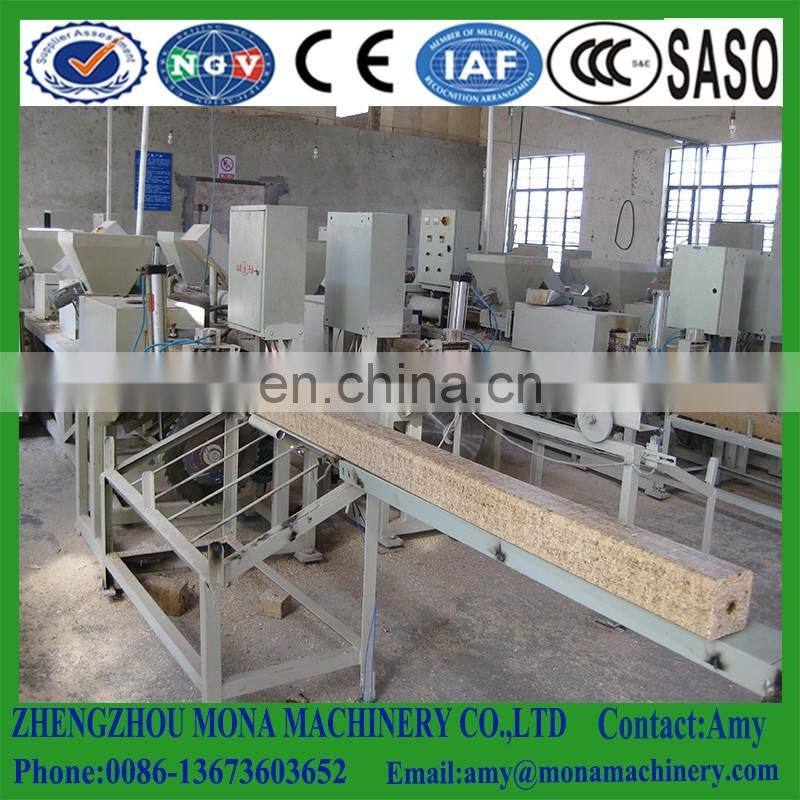

Introduction of Wood Pallet Block Making Machine

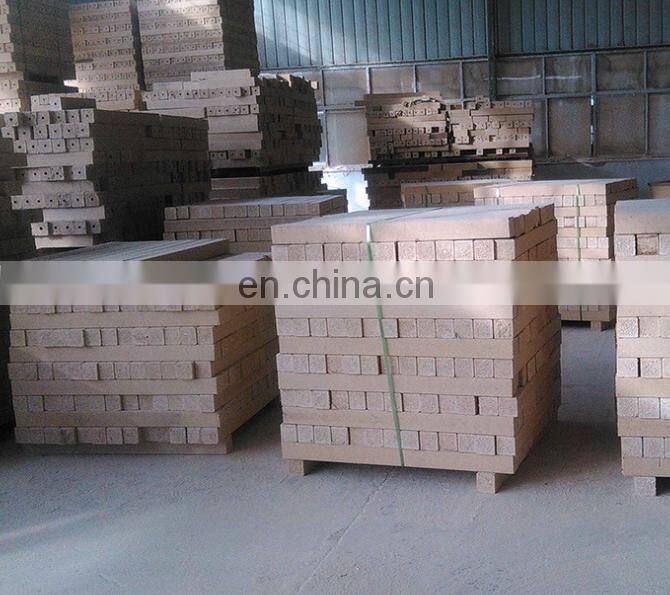

It is used to turn the wood waste such as sawdust, wood wools into the pallet feet which is for the transportation pallet. The final product could get the E1 grade.

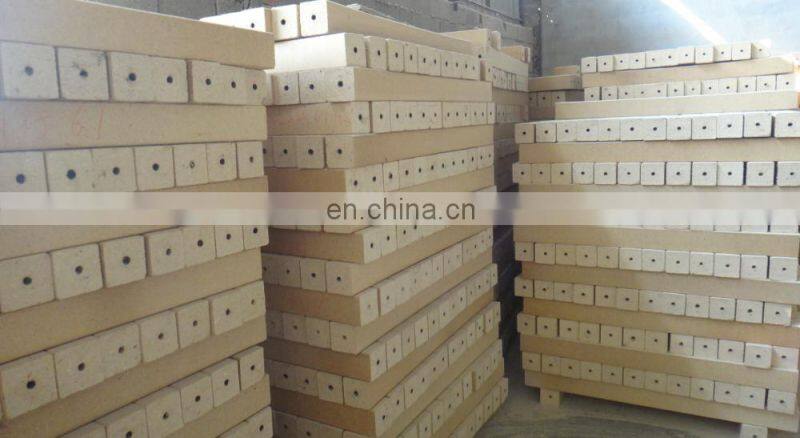

The pallet feet could be solid without hole in the center, also could be hollow.

Besides, you could customise the mold for other shape wood waste compressed products.

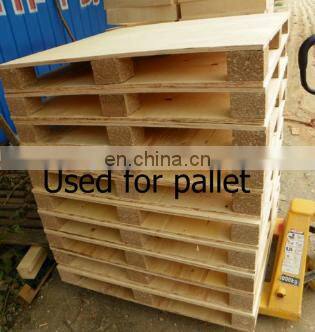

--Usage: This wood sawdust block making machine is used to make blocks/feet/log for pallets, which is can be used in packing industry and logistics(transportation);

--Raw Material: Sawdust, wood shavings, wood chips, waste wood, used pallet and so on,also the glue(urea formaldehyde resin);

--Block Size: Mainly 75*75,80*80,80*100,80*120,90*90,100*100,100*115,100*120,90*120, 145*145 etc and can be customized.

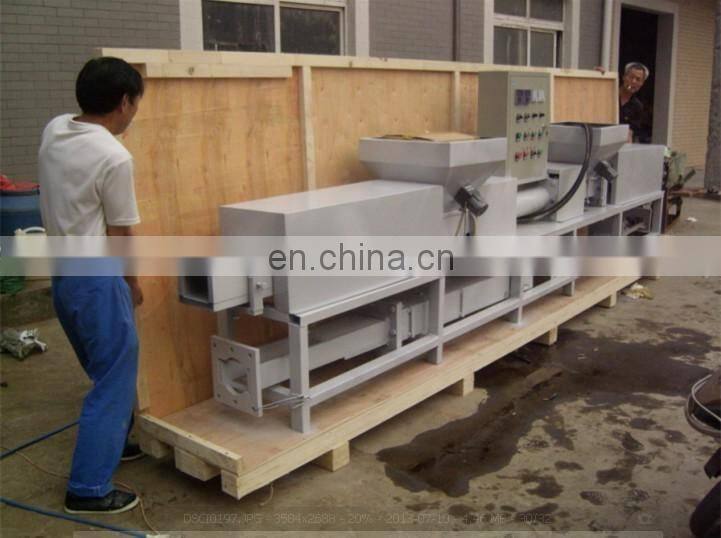

Parameter of Wood Block Press Machine

Diameter of pallet hole:  18-28mm

Inside combination Power: 1.76Mpa

Vertical bear power: 1950N

Horizontal bear power: 1600N

Stabdard bearing pallet size : 100*1455mm  inside diameter : < 32mm and  145*145mm  inside diameter <40mm

 Work flow of Wood Pallet Block Making Machine

a, Crushing the wood, branch, wood waste into sawdust, wood shavings or wood wools (or you have the raw material already);

b, Drying the raw material to 8% (solid block) or 10%(hollow block);

c, Mixing the raw material with glue;

d, Pressing them in the wood pallet block machine;

e, First cutting the product from pallet block machine into bar;

f, Second cutting the strip into the single blocks.

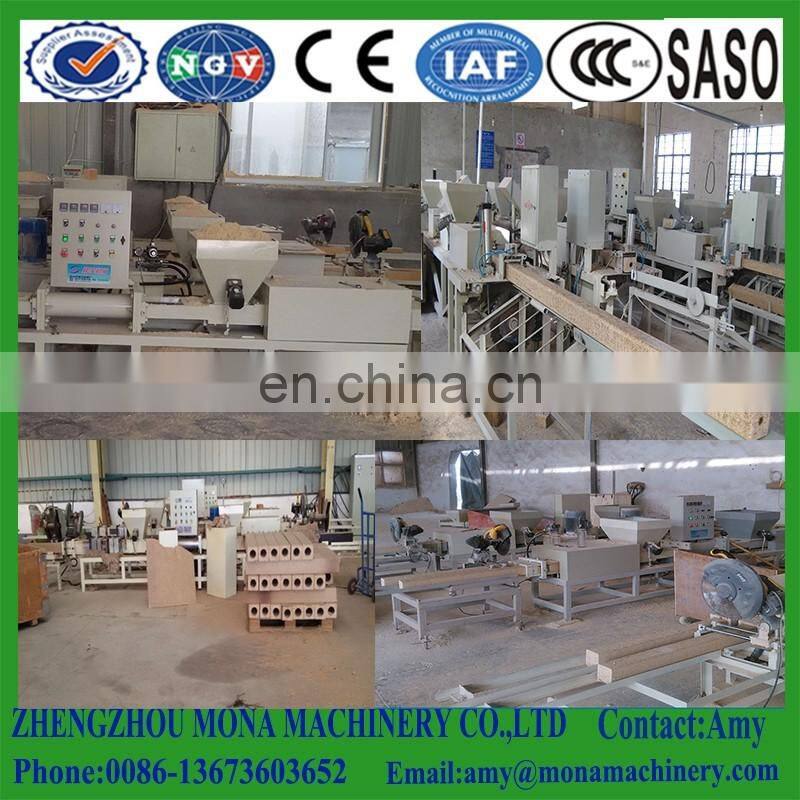

More details of Wood Block Press Machine

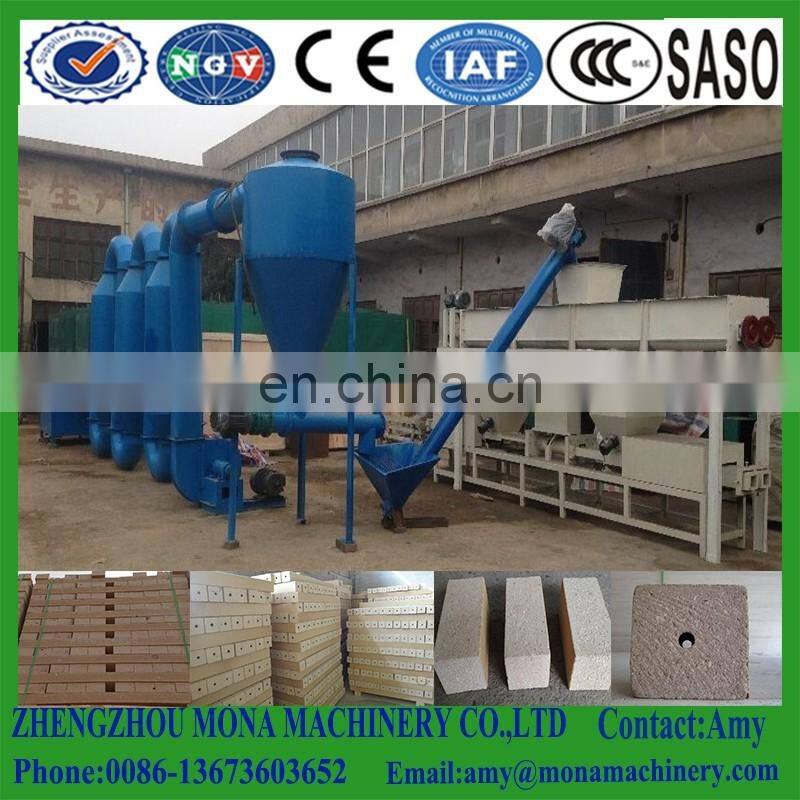

Equipment disposition: Generally four hot presses are a production line, must provide the dryer, the gluing machine, grinder each. (dryer, gluing machine, grinder and so on supporting facility customer buys in addition).



Personnel disposition: Production personnels 4-5 person of/classes. And raw material sort (screening), drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines).

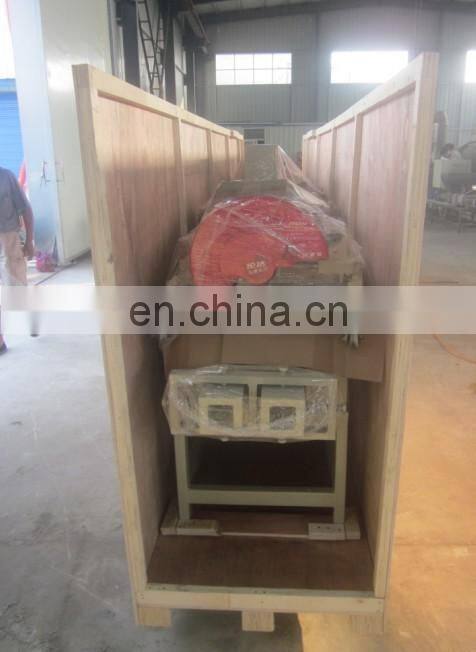

Production cycle: After confirmation order form and payment advanced payment, 40 super craft manship factory delivery.



Equipment investment recoupment period: 10— 12 months.



Our factory is responsible for the technical training, and provides the consummation the post-sale service.
