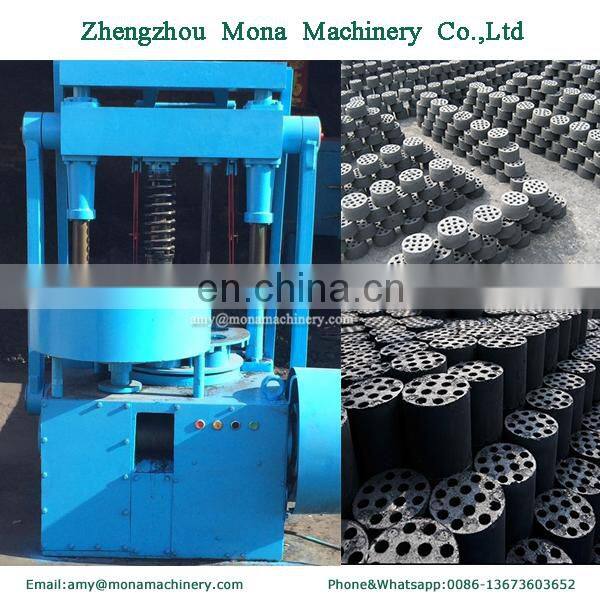

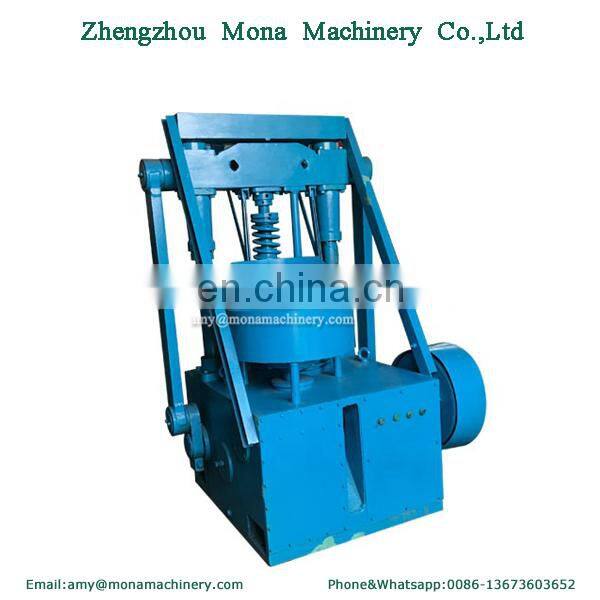

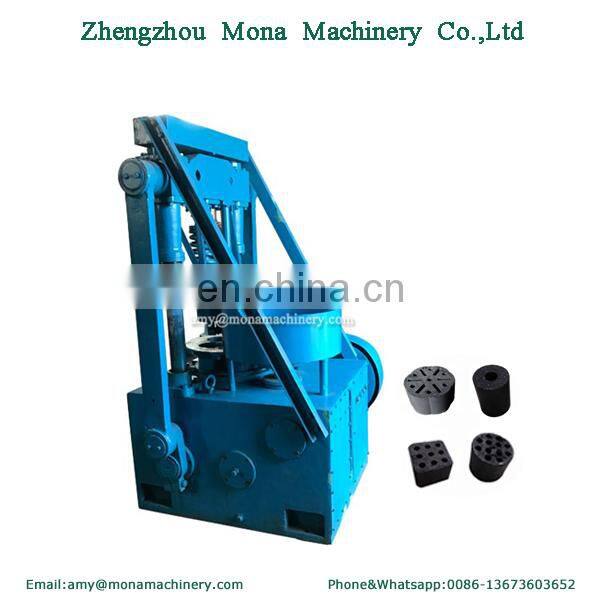

Honeycomb Charcoal Briquette Machine Coal Press Machine

 Introduction of Coal Honeycomb charcoal briquette making machine :

Honeycomb coal forming machine is to regard the well processed coal dust as raw material, after crush, mix, and then compress to coal briquettes.

After several improvements, improved structure, increased density, improved performance, extended service life.

It is also known as briquette briquette forming machine because the holes on the coal briquette make them look like honeycomb, and also because of this holes, the surface of the coal briquette expands, so the coal briquette can be easily and completely burned, reducing energy waste.

Main Features of Coal Honeycomb charcoal briquette making machine :

1. With different types, we have 140, 160, 180, 220, 260, 300, etc, several different modes to provide you different capacity according to your needs.
2. The coal briquettes produced by our honeycomb coal powder briquette molding machine are no chemical additives, smelless, smokless, non-toxic, combustible. So it is really an energy saving, environment protect coal molding equipment.

3. The molds are adjustable, one machine can with several different types of molds, and the change of molds are very easy. Even you can have your own thoughts, we can manufacture the ideal moulds for you.
4. Applicable raw materials: such as coal powder, coal dust, charcoal powder, coal ash, coal gangue, middlings, brown coal, breeze, furnance slag, coke powder, etc.

5. The coal briquettes of honeycomb coal powder briquette molding machine can be round, cylinder, square, rectangle, polygon, hexagon, sector, etc, or as your special requirements to make the ideal shapes for you.

Briquette of honeycomb coal forming machine

Shape: honeycomb coal powder briquette forming machine The Shape of briquette can be round, cylindrical, square, rectangle, Polygon, Hexagon, fan and so on many kinds, or you can have your own ideal shape, we can help you to be your need.

Size: final size according to the shape and machine mold, also can be decided within a certain range.

Features: export briquetting with high density, flammable, long burning time, non-toxic, smoke-free and other advantages.

Production of honeycomb coal forming machine:

The following are the brief introduction of the procedures, please have a check:

First you need our coal crusher to crush the coal into powder material.

2.Secondly, you have to mix the coal powder with a certain proportation of clay or water by the Double-shaft Mixer.

3.The third step you have to do is to feed the material into the briquette making machine to produce the briquettes.

4.The final step, you need to dry the coal briquettes onto the liquid adhesive through our box dryer or, if it is strong enough, you need to dry in the sun.

5.If you wish, we can also offer you automatic packing machine for packing after the briquettes are completely dried.

Structure and operating principle:

The honeycomb coal forming machine is simple in structure and comprises five parts, such as a valve body, a drive, a feed, a punching, a conveying and the like.

1.Body parts:by the pressure plate, the engine base composition, forming a skeleton entity.

2.Drive parts:composed of motor, belt pulley, gear, transmission shaft, etc.The motor causes the gear shaft to rotate through a belt pulley and pass through two gears to the shaft, which is then composed of a pair of bevel gears and an axis.Rotate to drive the dial and then pass the movement to the four panels.

3.Feeding part:composed by main shaft, Hopper, agitator, axial gear mixer, hit Coal machine and loading mode barrel.

4.Stamping parts: it consists of four sliders, sliding beam, punch, punch holder, punch pin, movable Platen, active end mode, spring and other components.When the machine is driven by two gears, the sliding beam is driven by the pull rod, the well is drilled, the spring is tightened, the pulverized coal is pressed into the coal briquette, the coal briquette is rushed to the conveyor, and the density of the coal briquette is output; and the density of the coal briquette is determined by the spring

5.Conveying parts: by the transmission rack, pulley, bracket, conveyor belt and other components.The conveyor belt is free to rotate the forming coal briquette to leave the machine body, and the adjustable screws on the conveyor frame can adjust the tightness.

Technical parameters of Coal Honeycomb charcoal briquette making machine :

Any questions and inquiry you are warmly welcome :
