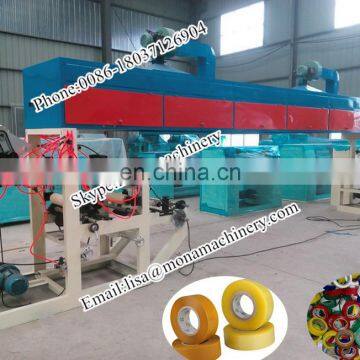

0086-18037126904 BOPP Tape Coating Machine

Raw   materials of the machine adapt to

OPP, PET, PVC, PA, CPP film, Aluminum foil and   other types of plastic film and paper, etc.

Width   of material

800mm,   1000mm, 1100mm, 1300mm, 1600mm, 1800mm

Max.   mechanical speed

150-180m/min

Max.   Speed of laminating

120-160m/min (According to the material)

Dry   oven length

12.5-18m,   can be customized.

Operation   or control system

Potentiometer

Operation   panel

PLC

Mode   of unwinding and rewinding

Single   shaft,

Or   double-station rotary rollers for unwinding

Diameter   of unwinding and rewinding

600mm-1500mm

Unwinding   brake

Magnetic   powder brake or air brake

Tension   controller

Automatic   constant tension control for unwinding, torque motor or variable frequency   motor for rewinding

Edge   position system

E.P.C or L.P.C automatic edge   system, control accuracy≤1mm

Coating   modes

Cobwebbing   rollers coating,

Three-roller,   steel wire, comma coating, or anti-comma coating

Oven

Side-opening   or bottom opening door type

Arc   top-opening door type (controlled by pneumatic system)

Arc   top-opening door type (controlled by pneumatic system)

Temperature   control system

PID intelligent temperature   controller, temperature control accuracy≤±2°C

Electric   heating controller

AC   contactor

Solid-state   contractor

Silicon-controlled   rectifier

Reflector   cover

Stainless   steel

Stainless   steel corridor

Optional

Rewinding   controller

Torque   motor

Variable   frequency motor

Over-heating   protection

All   the motors of the fans are equipped with over-heating protecting system

Alarm   of density of combustible gas

Without

Optional

Equipped

Other   protecting system

Tension   hold when machine stops, Static elimination
