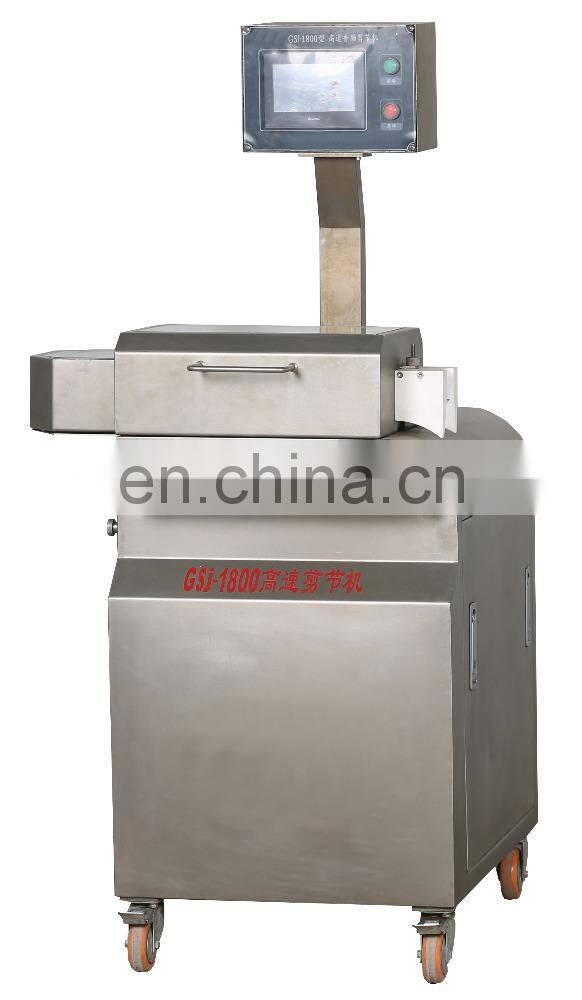

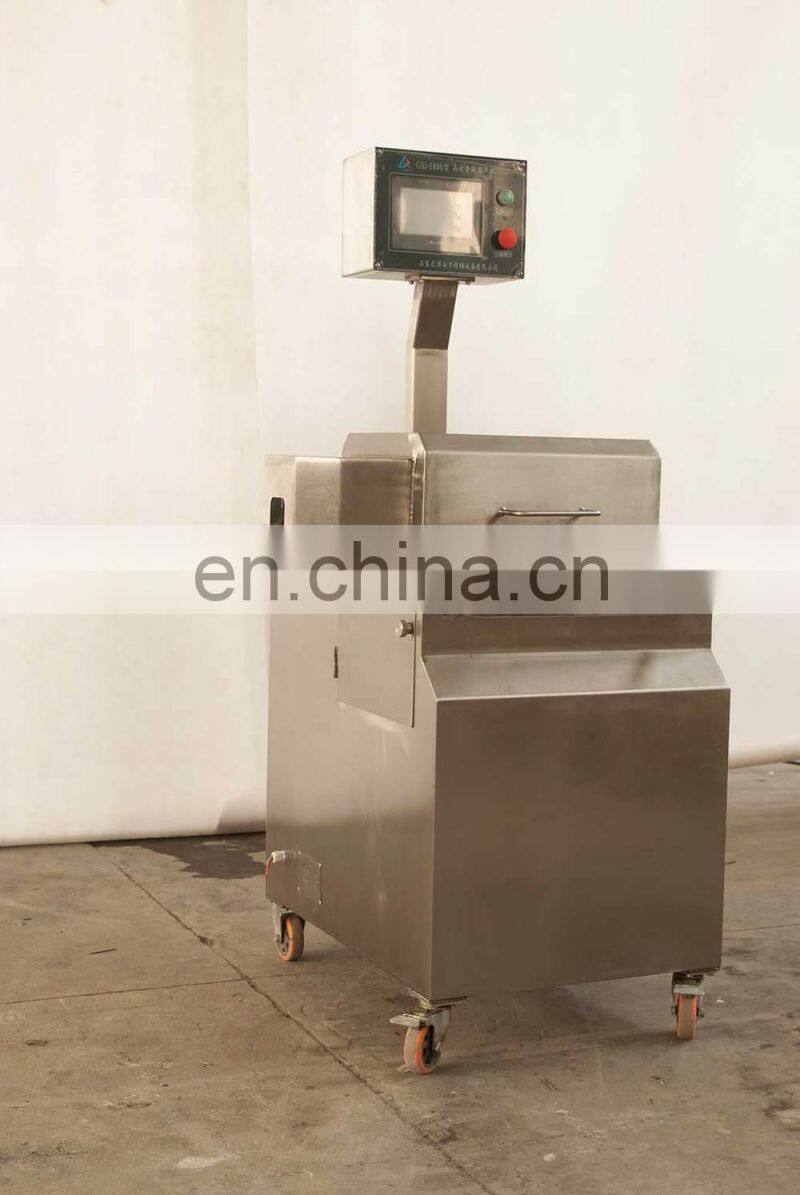

Fast Speed Sausage Cutter Machine for the Artificial Casing

.

Sausage cutting machine

The machine can cut a hand of cooked sausage ,it cut various kinds of casing (natural, collagenic, cellulose, nylon etc) in the kink position .

1, Cutting into single sausage and two sausages ,ect. According to the demand quantity setting range 1-40 root .

2, There are two sets of servo motor drive in the machine , the conveyor belt operation of a motor reduction drive , the conveyor speed can be adjusted ; another group of motor directly driven cutter rotation .

3, The operating system is independent of the invention ,cutting more stable ,and in the case of

Product relative to the eligibility criteria .broken rate is zero .

4,The machine can cut long sausage (no kinks) into equal length segment .Each cutting Length

Can be adjusted separately,ranging from 1mm to 5mm .cutting length adjustment range is from

20mm-512mm .

Main technical parameters :

Machine must include sausages quantity counter and it must provide changeable settings for different quantity of cut sausages

Conveyor speed – 0-96 m/min

Cutting speed – (sausage length 60 mm) – up to 1600 cuts/min

Casing size – 10-50mm

Machine size: about 800*790*1650mm, weight 180 kg

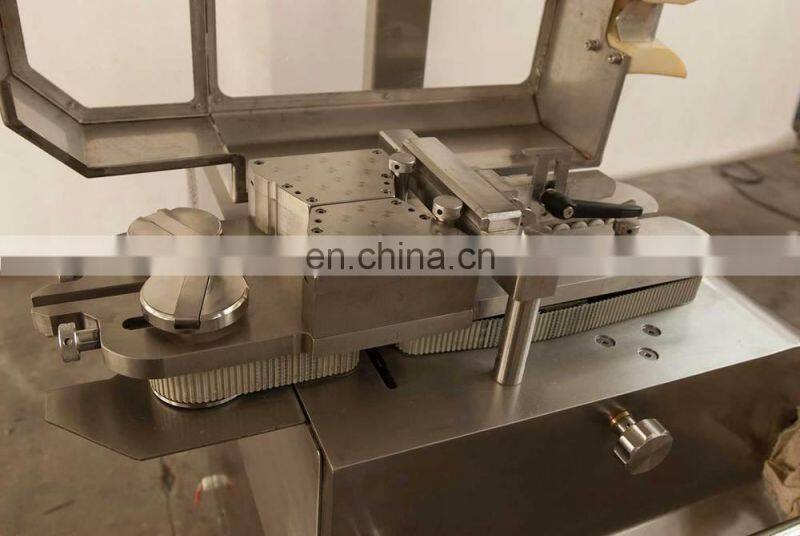

cutting mechanism type – two-edge scissors (2 pcs),

slide bushingof cutting mechanism (2pcs), conveyor (2 pcs),

sausage size: diameter – 10-50 mm, length min 30 mm

220 V, 50 Hz, 1 phase

Electromotor proection index – min IP54

Gear driver – servo motor

Total power max 2.5 kw

 WOODEN CASE OR SUITBLE FOR SHIPMENT

Excellent After-sale Service:
1. Technicians will be sent if necessary, to install and adjust the machine perfectly. Besides,

     train your workers for the correct usage and daily maintenance.
2. Any spare parts you need will be sent to you directly from us.
3. Anything wrong with the machine, we will reply within 8 hours. Technicians will be sent

    to your working site if you can not solve it under our guidance.
