Automatic Chalk Making Machine /White Chalk Maker Machine/Colour Chalk Maker

best quality chalk moulding machine from Zhengzhou Taizy

Introduction of chalk moulding machine

Chalk machine is a new type of practical chalk producing appliance. It improved the old one's many disadvantages. such as: inefficient . high labor intensity. material-wasting. rough appearance. low quality. low rate of high quality products. and so on. All these disadvantages had hindered the development of the productive forces, and the improvement of product qualities .So, aimed at all these problems, our factory , after so many years' research and experiments, has developed the new types of chalk-making appliances .

The working process of chalk moulding machine

1.Fill the water into the slaked lime mixer,the rate of slaked lime and water is half to half,but the slaked lime should be good quality.

2.The mould should be lubricated enough and lubricated every cycle,also need to be clean on time.

3.Each mould has 80 spaces for the filling,each cycle will take 6 minutes.

4.When the filling completed, turn over the mould, wet chalks come off the mould,and then dry them in the sun or dryer.

5.The packing should be completed by hand.

6.Final shape can be round,rectangle,or star shape.The length of the chalk can be 75mm-105mm.

Details parameters of chalk drying machine

Features of chalk moulding machine

1. various capacity chalk machines, capacity rages from 6,000 PCS-48,000 PCS per hour

2. high capacity,top quality, competitive price; for example: the mould hole is engineering-plastics, and it is better strength, higher operating temperature and longer lifetime than common plastic.

3. automatic operation system, saving labor and raw materials

4. easy operation, working video is available

5. chalk shapes: round,square, six prism or other customized

Different models of chalk moulding machine

The chalk is drying.

Different shapes of chalk

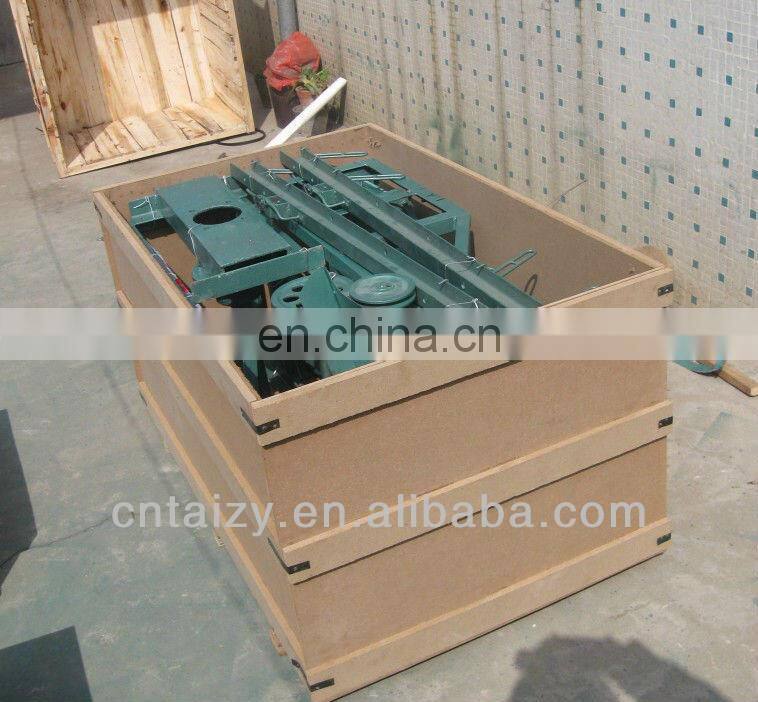

Package of cost of chalk moulding machine

Service of Taizy

Before sale: Help customers choose the most suitable equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.

On sale: Inspect the product seriously before out of the factory; invite customer for commissioning in the spot and raising the objection; organize to delivery according to the contract.

After sale: Company can send technical datas for guiding to install debug the machine. We also can provide 24-hour telephone or message service.

If you have any problems about our prodcts, pls contact me in any way.
