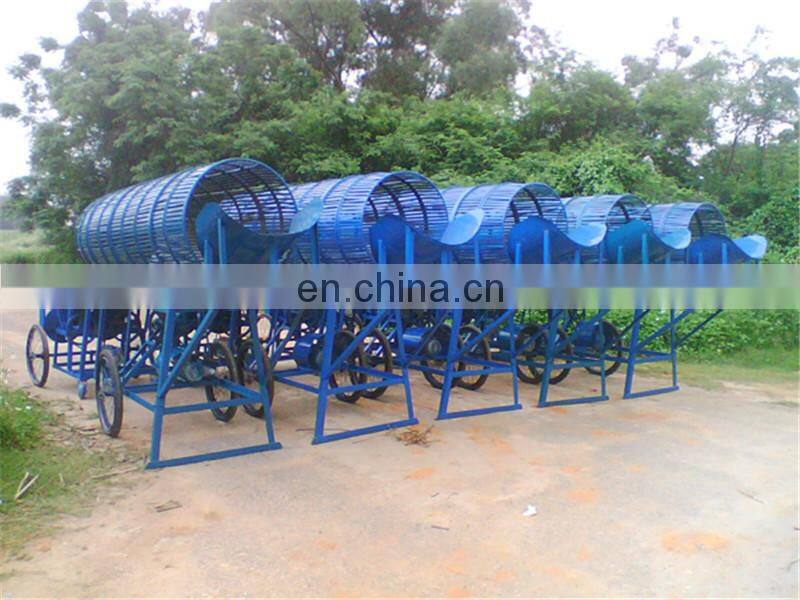

Commercial Cassava Slicer/Slicing Machine/Slicing Cutter
- qingdao
- T/T Credit Card
You May Like
-
Sweet Potato Starch Extract Machine/cassava Flour Production Line
-
Fried Ice Cream Machine Commercial Fried Ice Cream Machine Price
-
Double Pan Fried Ice Cream Machine Fried Ice Cream Machine Rolls
-
Fried Ice Cream Roll Machine Fried Ice Cream Machine for Sale
-
High Quality Fried Ice Cream Machine Double Pan Ice Cream Machine Fried
-
Fried Ice Cream Machine Mesin Ais Krim Goreng Ice Roll Machine Fried Ice Cream
Product Details
| Brand Name | TZ | Place of Origin | Henan, China | |
| Model Number | TZY-10 | |||
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 months | |
| Weight | 500kg, 500kg | Dimension(L*W*H) | 3500*1500*800mm | |
| Production Capacity | 10ton/h | Voltage | 220V | |
| Certification | ISO | Condition | New | |
| Power(W) | 2500 |
Product Description
Introduction of the machine

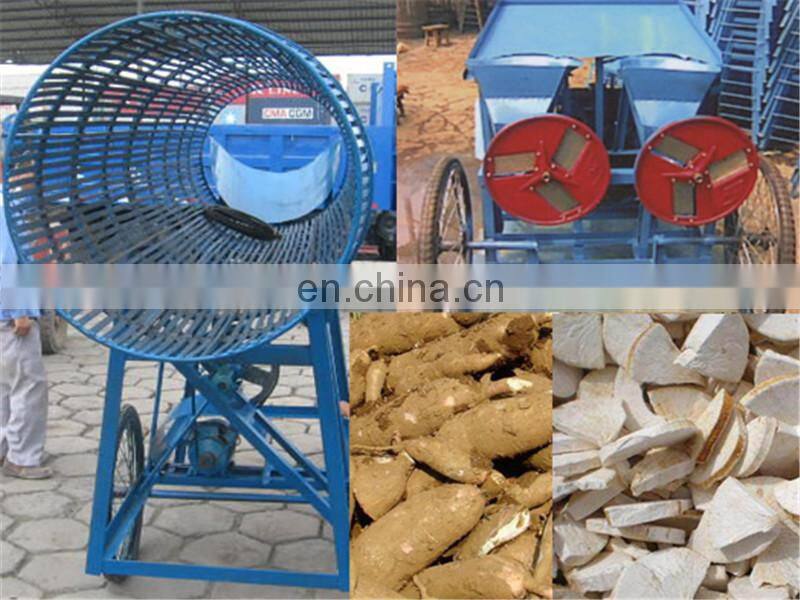

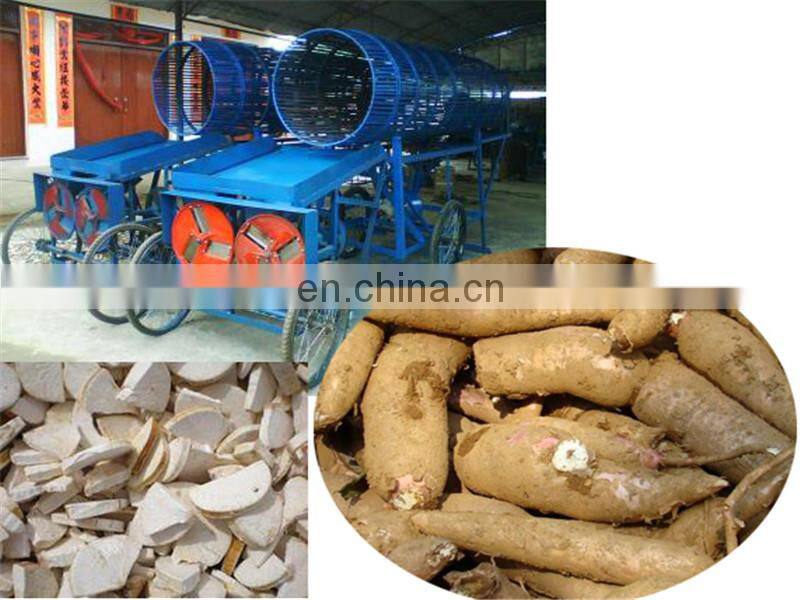

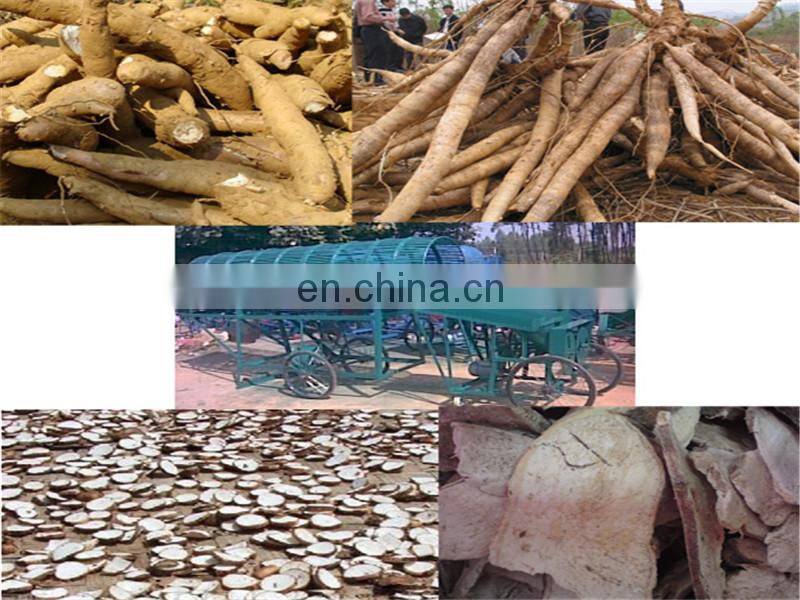

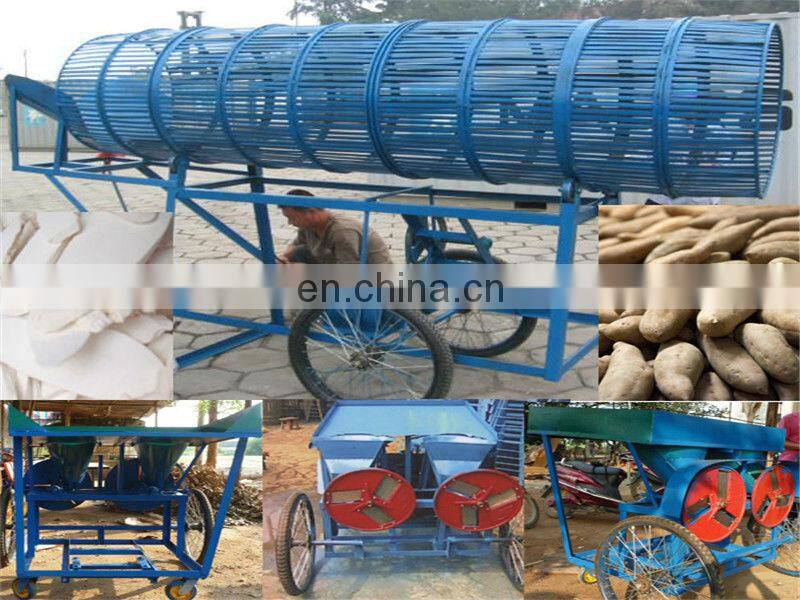

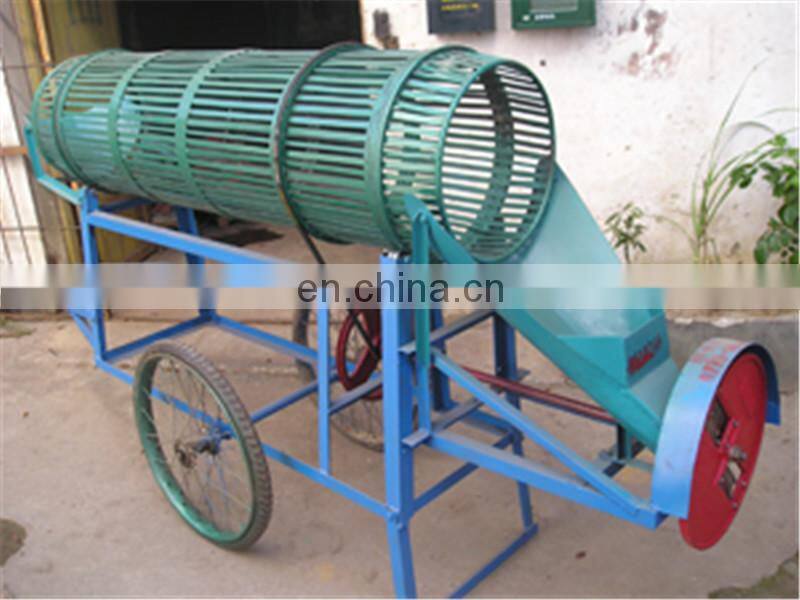

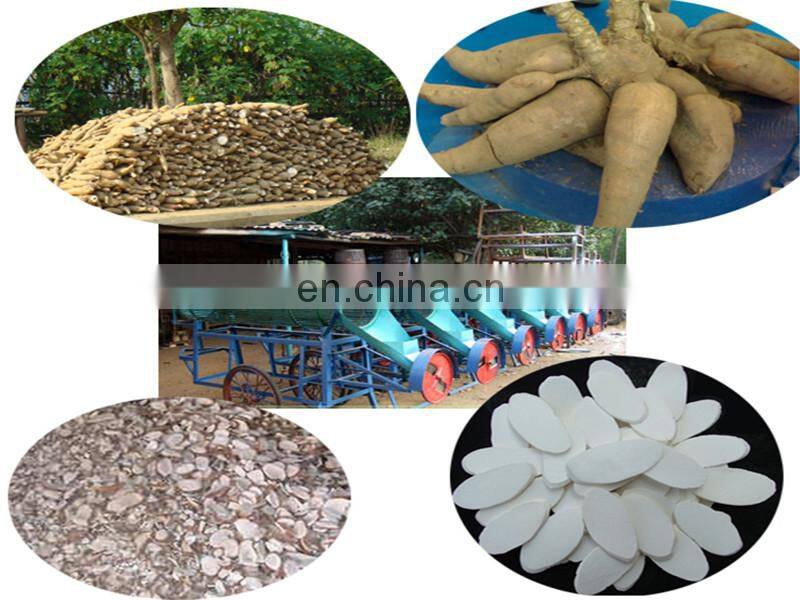

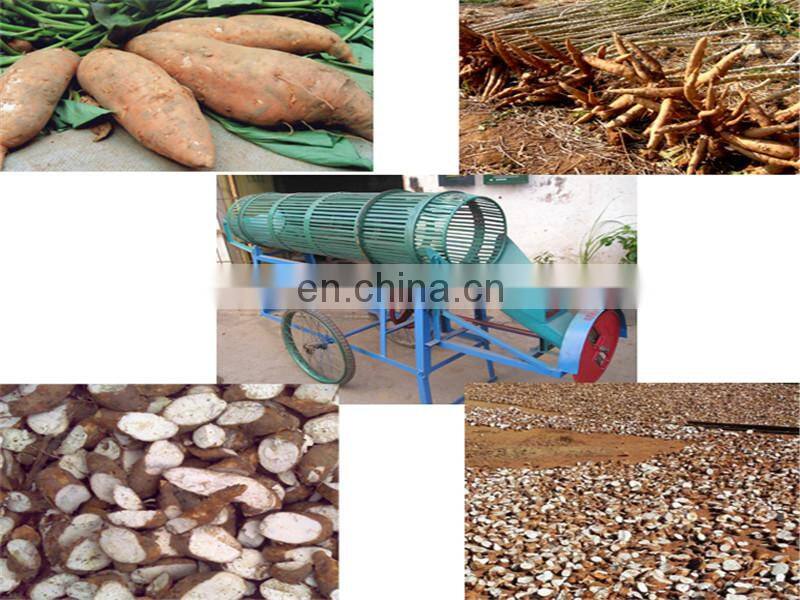

1.This machine is used to cut the cassava into slices with higher capacity.It can be equipped with the peeling machine or can be used alone.The thickness of the slice can be adjusted.
2. The cassava cutting machine make fresh potato chips and french fries.
3. The size of sticks and slices can be adjusted from 0.5-10mm.(according
to special order)
We offer a series of the machinery for the cassava processing with the output from 700kg to 200tons per hour.The machines include cassava washing machine,peeling machine,crushing machine,pulp grinding machine,bagasse separator,condenser,dehydrator, screening and packing machine.We can make the line according to customer requirement.
Operational Introduction
First step:
1.We can loose the screws which are mainly used to tighten cutter plate and blade to change the distance (1.5-2.0cm is the best) between cutter plate and blade.
2.After adjusting the distance into our requirement,we should tight the screws again.
Second step:
1.Loosing the screws which tight the feeding funnel in order to adjust the distance (2cm is the best)between feeding funnel and the cutter blade.
2.After making sure there is no friction between the feeding funnel and blade plate,we can tight the screw again.
Parameters:
Item | 4ton/h cassava peeler and chipper | 10ton/h cassava chipper without peeler | 10ton/h cassava peeler and chipper |
Model | TZY-4 | TZY-10 | TZY-10 |
Productivity | 4ton/h | 10ton/h | 10ton/h |
Weight | 150kg | 500kg | |
Size | 3000*1200*600mm | 1000*1000*800mm | 3500*1500*800mm |
Power | 2.5kw electric motor or 6HP diesel engine | ||
Peeling efficiency | 85% | ||
Cut skin thickness | 5~15mm | ||
Container loading | 40pcs/40' HQ | 68pcs/40' HQ | 20pcs/40' HQ |
