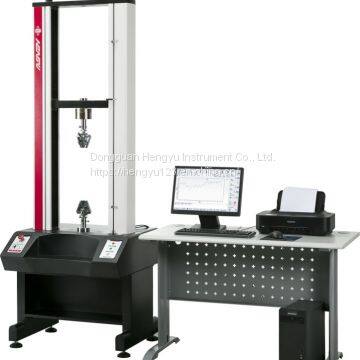

HY-932CS Computer Servo Control Universal Material Testing Machine

This machine is widely used in the research and development of various materials, such as stretching, compression, bending, shearing, peeling, tearing test, etc. for metals, rubber and plastics, leather, wires, cables, textiles, packaging, paper industry, PE, etc.

Software features:

1. Software environment: HY-V software package based on Chinese and English Windows 7 platform.

2. Language Selection: With Chinese Simplified, Chinese Traditional, English and other language interfaces in the operation of free switching, greatly facilitating the use of operators.

3. Unit Conversion: Commonly used forces and displacements, energy has and can be freely converted.

4. Basic Functions: Computable and tabular data graphics: with the basic parameters of material testing machine: 1. Drop point 2. 0.2% off set 3. Drop strength 4. Tensile strength_. Elongation_. Energy absorption_. Maximum value_. Fracture value_. Deformation value_. Average value Contrast graphics and so on.

5. Various curve display modes: stress-strain, force-displacement, force-time, Strength-Time and other curve modes.

6. Use of data: Use database management testing and standards to enable authors to use pre-built data or build their own.

7. Test mode: including tensile, flexural, compressive, flexural, adhesive, tearing, peeling, elongation... And so on.

8. Control mode: positioning displacement, constant velocity, constant strain rate, constant load rate, constant load rate, constant stress rate, stress rate, etc.

9. Convenient and practical zero setting function: force, elongation and displacement can be adjusted manually by pressing a key, and the system can automatically adjust zero at the beginning of the test.

10. Dynamic display: During the test process, load, elongation, displacement and selected test curve are displayed on the main control screen in real time and dynamically with the test proceeding.

11. Peak Holding: Throughout the testing process, the maximum of the test items is always displayed on the screen window following the test.

12. Manual pick-up function: It has special manual pick-up function in the testing process.

13. Automatic discrimination: After the sample is destroyed, the system automatically identifies and automatically switches to complete the next function according to the anticipated test requirements.

14. Automatic storage: automatic storage of test conditions, test results and gauge location.

15. Auto-regression: It has the function of automatically returning to the starting point of the test after the completion of the test.

16. Graphic analysis: After the test, the data can be viewed with the mouse from the test curve, and any point on the test curve can be magnified and analyzed locally, and can be printed selectively.

17. Curve contrast: Curves of the same group of samples can be superimposed and compared.

18. Report output: Graphics and parameters are open to customers to modify according to their needs. Different report formats can be output, which is easy to learn and practical.

19. Range expansion function: different capacity specifications of sensors, extensometers and fixtures can be added to widen the measurement range, so as to achieve more accurate test accuracy.

20. Automatic fault detection: When the servo system fails, it can automatically diagnose the cause of the fault and automatically store the fault code in the servo driver, so as to quickly find and eliminate the fault.

1. Load element: 0.5 grade high precision force sensor

2. Capacity selection: 20 N, 50 N, 100 N, 200 N, 500 N; 1 KN, 2 KN, 5 kN, 10 KN, 20 KN

3. Accuracy grade: 0.5 grade

4. Test range: 0.2%-100% FS

5. Force Accuracy: +0.5%

6. Force decomposition: 1/300,000

7. Strength Amplification Ratio: Full-range Segmentless Automatic Switching

8. Displacement indication error: indication value within (+0.5%)

9. Displacement resolution: 0.00004 mm

10. Deformation measurement range: 0.2%-100% FS

11. Error Limit of Deformation Indicating Value: Indicating Value (+0.5%)

12. Large Deformation Measurement Range: (10-1000) mm

13. Error Limit of Large Deformation Indicating Value: Indicating Value (+0.5%)

14. Large Deformation Resolution: 0.0025mm

15. Control System: Japanese Panasonic Servo Motor

16. Driving mode: Panasonic servo controller in Japan

17. Motor function: 0.4KW

18. Reducer: Italian Autos Precision Hollow Cast Aluminum Reducer

19. Drive coupling plate: forged high carbon steel, good mechanical strength, no variable displacement

20. Driving screw: Taiwan double structure precision ball-rolling screw

21. Guide rod: Made of two 50 Korean Taijin guide rods, the surface is treated by high frequency and hard chromium plating, HRC60 or above.

22. Active Bearing: Using Japanese NSK High Carbon Ball Bearing

23. Transmission System: Japan High Strength Synchronization Belt

24. Body structure: split design of main frame and control box

25. Test speed range: 0.001-1000 mm/min

26. Speed Accuracy: Indicative Value (+0.5%)

27. Test stroke (without fixture): 1000mm

28. Effective pillar spacing: 410 mm

29. Fixture treatment: All fixtures are treated by hard chromium plating, HRC55 or above.

30. Dust-proof device: Taiwan dustproof cover is used to protect the ball screw from dust and ensure the life and accuracy of the ball screw.

31. Body surface treatment: Dupont powder, electrostatic spraying process, curing at 200 C at high temperature to ensure long-term fading.

32. Display System: Special Software for Material Testing Machine Developed by HY-V on Windows Platform

33. Data transfer: All parameters are saved on peripheral hardware. The computer does not need to install any external hardware. It is very convenient for users to change and upgrade themselves and maintain the computer.

34. Multiple protection devices:

Mechanical start switch protects upper and lower limit travel

(2) Brake protection of emergency stop switch

Over-current, over-voltage, under-current, under-voltage, leakage overload protection

4. Software overload limit protection

_. Breakpoint stop protection

35. Volume: (560x420x1800) mm

36. Power: AC220V 50HZ

37. Weight: about 260 kg

Fixtures are made according to your products.

(2) A Chinese instruction for the instrument.

One instrument warranty card.

(4) An international third-party CNAS tester calibration report.
