99.5% Pure Al2O3 Ceramic Pipe for Furnace
- Beijing
- T/T
- 7 days
You May Like
-
MoSi2 Heating Element Accessory, Connection Clamp & Aluminum Braided Strap
-
High Quality Ceramic Fiber Board for Furnace
-
Factory Direct Supply Polished Molybdenum Rod, Molybdenum Bar
-
China Best Quality Double Spiral SiC Heating Elements
-
Professional Manufacturer High Purity Tungsten Sheet, Plate
-
High Purity Tungsten Rod, Bar With Best Quality
Product Details
| Brand Name | Shibo | Place of Origin | China | |
| Model Number | Al2O3 | Type | Ceramic Tubes | |
| Application | Refractory | Material | Alumina Ceramic |
Product Description

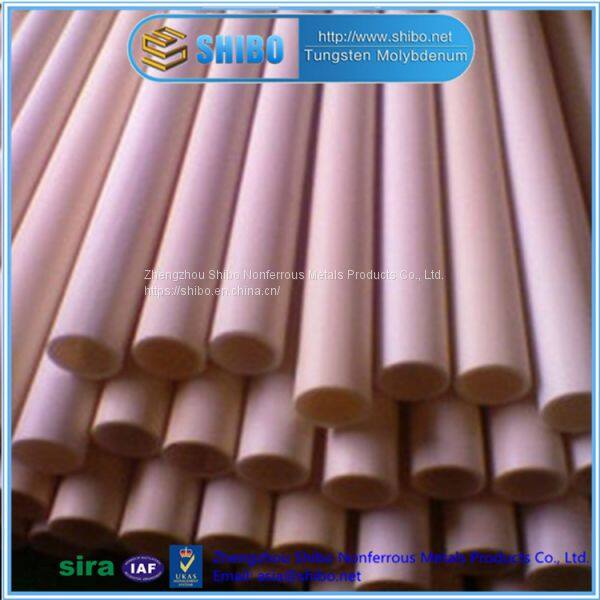

99.5% Pure Al2O3 Ceramic Pipe for Furnace
Specification:
99.5% pure Al2O3 ceramic pipe / tube
High purity: >=99.5%
Character:
1. Smooth surface, excellent Wear-resistance
2. Long service life
3. High Temperature Resistance: 1800C
4. Length: 20-3000mm
Usage:
Be used in thermocouple protection and various furnace.
We can design 2 kinds: 1) both ends open. 2) one end open, the other end close.
Tech Data:
Chemical competent | Al2O3 | ≥99.5% |
SiO2 | <0.2% | |
Fe2O3 | <0.1% | |
Alkaline matter | <0.1% | |
Density | 3.9 g/cm3 | |
Hardness | 9 M | |
Water absorption | <0.1% | |
Ruptures trength | >2000kg/cm2 | |
Gas tightness | Kept for ten minutes at negative pressure of 1.3Kpa. The pressure drop is less than 0.3Kpa. | |
Thermal tolerance | Insert the pipe into the furnace at a depth of 20mm. Heat to 1600oC and maintain for 30 minutes. | |
Alkali tolerance | In the Na2CO3 solution of 2N concentration, boil for 15 hours with the weight loss not greater than 20mg/dm2. | |
Volume resistance | >9*10(5) Ω·cm/1600oC | |
Breakdown voltage | 20kv/cm | |
Expansion coefficient | 8*10(-8) | |
Temperature for use | Long-term: 1600oC Short-term: 1800oC | |
Chill and abrupt heat | 1500oC~room temperature not cracking thrice. | |
