Flush Foundations Container ISO Socket
- 5000 Piece / Pieces per Month
- Tianjin ShangHai
- T/T Credit Card
You May Like
-
Vertical Type Container Lashing Rod
-
Aluminum Telescopic Tube Container Twistlocks Operating Rod
-
Casting and Forged Steel Container Lashing Materials
-
2400m 4700m Swivel Head Container Lashing Bar
-
Hot Dip Galvanized Storage Bin for 20ft 40ft Flat Rack
-
Brand New Storage Bin Flat Rack with CSC Certificate for Sale
Product Details
| Brand Name | ACE | Place of Origin | China | |
| Model Number | Flush | Application | Vessel Lashing | |
| Dimensions | Double |
Product Description
Flush Foundations Container ISO Socket
1.1 General introductions:
In the container industry, cycle time for loading and unloading containers is the most imortant criterion.Innovative container securing systems provided by ACE ami specifically at enhancing productivity and safty, both on the vessel and at container terminals.

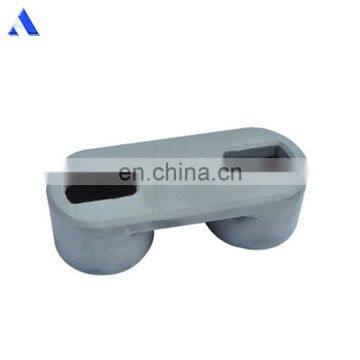

1.2 Real Picture Display _Flush container foundation:
1.3 Specifications - Flush container foundation:
With GL CCS Approval
Specifications: | ||||
Type: | Single | Double (Transversal & longitudinal) | Quadruple | |
Weight: | 7.3kgs | 17.5/18.5/20.5kgs | 42.3/45.8kgs | |
Material: | Ship Building Steel | |||
Surface Treatment: | Painted | |||
Min Breaking Loads | Tension | 500KN | ||
Shear | 420KN | |||
Compression | 2000KN | |||
We also can provide the Single and Double Raised Foundation as below:
Click Here and view more Lashing Parts.
100 -200pcs container flush foundation per plywood box as below:
3.1 Full range of Container Lashing Equipment
3.2 Professional technical support
3.3 Transportation service
3.4 Mixed items of container parts.
ACE Container is a professional Container & Parts supplier in China, which has over 10 years experience in this line, 7 years Golden Member in Alibaba, Trade Assurance Service in Alibaba. Also ACE Container has exported products to over 80 countries. And we have got the approval of SGS.
• Our Main Business Line: All kinds of Dry Cargo Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipments.
• Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.
4.1 Advanced Casting Technique:
4.2 First Class Testing Equipment:
4.3 GL Certificate Display:
5.1. Are your twist lock certified by any Classification Society?
Yes, all of our lashing equipment are certified by BV or GL.
5.2 How about surface Treatment?
Shop primer
5.3 Can i order mixed items?
Yes, you could choose the lashing parts as per your requirement.
