Collapsible Water Storage 10000 Liter Liquid Fertilizer Bladder
- ningbo
- T/T Credit Card
You May Like
-
5000 Gallons Flexible PVC Water Tank For Water Treatment
-
500D Red Vinyl PVC Coated Water Tank Tarpaulin
-
1000L to 6000000L Industrial And Agriculture Pillow/Onion Storage Collapsible Water Tank
-
500L-30000L PVC Collapsible Pillow Bladder Water Flexible Tank
-
Agriculture Water Storage Tank
-
Professional Pvc Flush Tanks With CE Certificate
Product Details
| Brand Name | TAK | Place of Origin | Zhejiang, China | |
| Model Number | DC5D |
Product Description
Collapsible Water Storage 10000 Liter Liquid Fertilizer Bladder
water tank, flexible water tank, folding water tank, collapsible water tank are our poplar product. Our water tank use enviromental
sound vinyl coated polyester or TPU reinforcement drink water grade waterproof & airtightness fabric.
| Flexible Tank Informations | |
| Materials | |
| Materials | Reinforced Tank Fabric |
| Coating Type | PVC-C, PVC-Non-Toxic, TPU-Polyether, TPU-Polyester, |
| Thickness | 0.5MM,0.7MM, 0.9MM, 1.0MM, 1.1MM, 1.2MM, 1.4MM |
| Color | Blue, Green, Grey, Orange, Yellow,Beige, Red, Camouflage |
| Grade | Normal, Non-Toxic Grade, Food & Drink Grade, Fuel Grade |
| Elongation | 22% Warp / 30% Weft |
| Properties | > Acid Resistance, Method 5% H2SO3,72h > Alkaline Resistance, Method 10% NaOH,72h > Penetration Resistance, Method Broach:100g,H:1m > UV Resistance Under Xenon Lamp Exposure For 1000h > Cold Resistance To -45°C / -49℉ / 228.15K / 410.67°R > Self Cleaning |
| Welding | |
| Welding Method | High Frequency Welding 35KW |
| Machine Brand | Kabar |
| Machine Origin | USA |
| Welding Standard | > Voltage:55 > Pressure: 5 bar > Voltage Duration: 5s > Water Cooling Duration: 5s > Computer Memory Monitor Model |
| Welding Strength | > 140N/5cm |
| Welding Tape | Reinforced Waterproof Sealing Tape |
| Flexible Tank | |

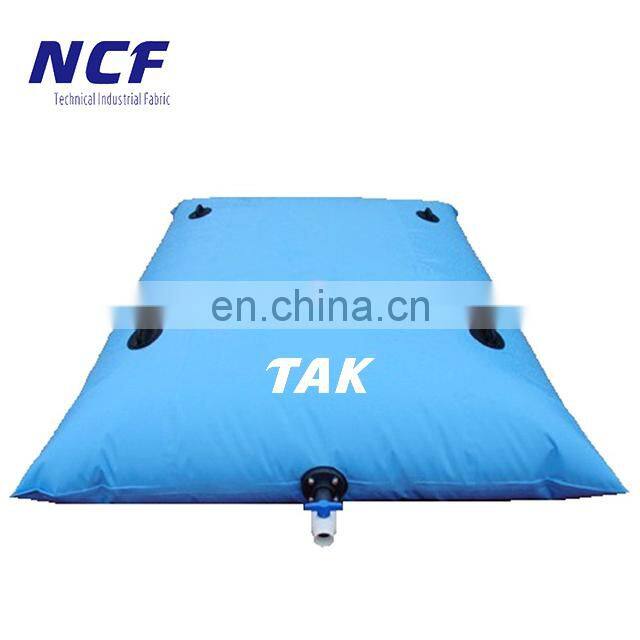

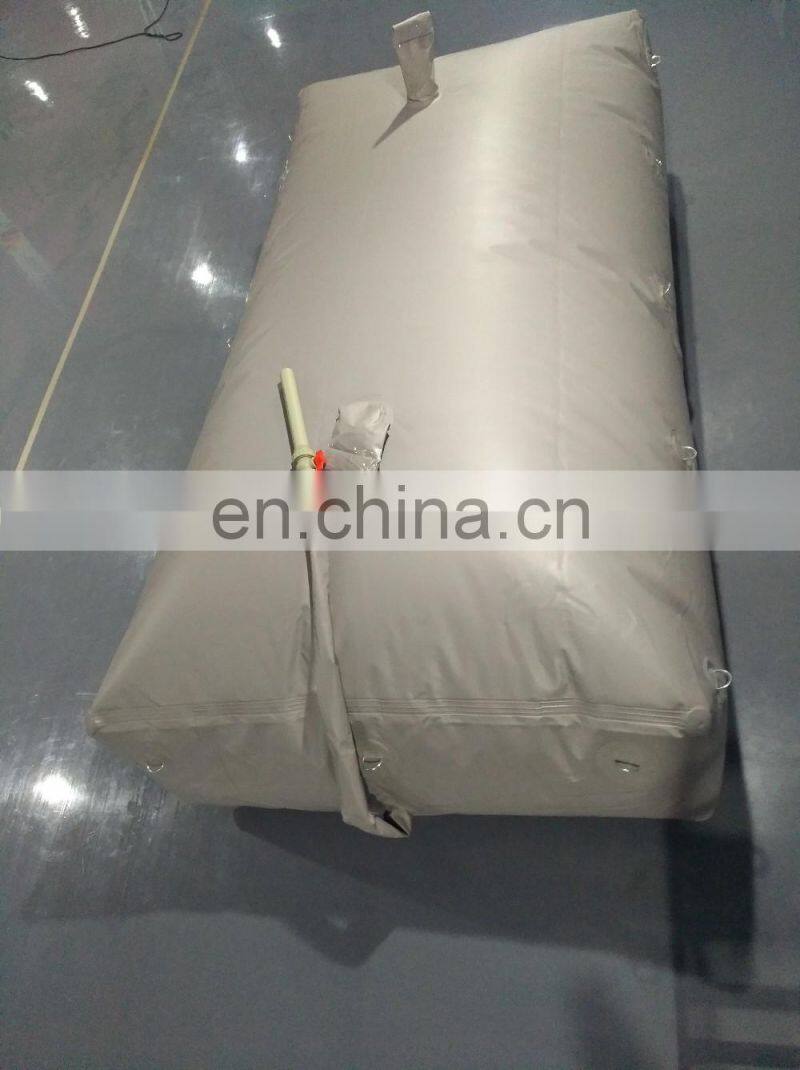

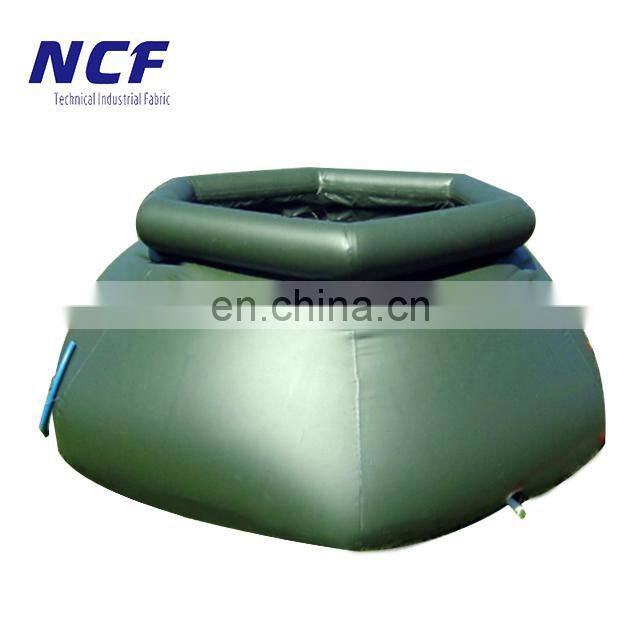

| Tank Shape | Pillow, Cube, Onion, Triangle, Other Customized |
| Tank Volume | 300L-600000L, 0.3M³-600M³, |
| Inlet /Outlet | 1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4" |
| Valve Type | DN Brass Ball Valve, PVC Ball Valve, |
| Valve Size | 1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4" |
| Ground Sheet | Available |
| Hose | Spiral Steel Wire Reinforced Rubber House 10MM |
| Pump | 100mm 4 inch Diesel Water Pump, 100 m³/hour |
| Advantages | |
| 1 | ISO 9001:2015 & BSCI Certified Factory |
| 2. | We make from Raw Materials to Finished Products |
| 3. | Know-How Technical Pepole & Advanced Machines |
| 4. | 7x24 Hours Whole Process Quality Control |
| 5. | Test Lab In House for Strength, Pressure and HVSC Free |
article | Capacity liter | dimensions m | Dimensions vacuum m | Volume m3 | Weight kg | |||
length | width | high | length | width | ||||
1 | 500 | 1,12 | 1,12 | 0,60 | 1,46 | 1,46 | 0,1 | 9 |
2 | 700 | 1,56 | 1,12 | 0,60 | 1,90 | 1,46 | 0,1 | 10 |
3 | 1.000 | 2,16 | 1,12 | 0,60 | 2,50 | 1,46 | 0,11 | 12 |
4 | 1.500 | 1,86 | 1,86 | 0,60 | 2,20 | 2,20 | 0,13 | 14 |
5 | 2.000 | 2,04 | 1,74 | 0,80 | 2,50 | 2,20 | 0,14 | 15 |
6 | 2.500 | 2,44 | 1,74 | 0,80 | 2,90 | 2,20 | 0,17 | 17 |
7 | 5.000 | 2,83 | 2,33 | 1,00 | 3,40 | 2,90 | 0,20 | 24 |
8 | 8.000 | 4,23 | 2,33 | 1,00 | 4,80 | 2,90 | 0,28 | 31 |
9 | 10.000 | 3,87 | 3,02 | 1,10 | 4,50 | 3,65 | 0,35 | 36 |
10 | 20.000 | 5,26 | 3,61 | 1,30 | 6,00 | 4,35 | 0,45 | 54 |
11 | 30.000 | 5,36 | 5,06 | 1,30 | 6,10 | 5,80 | 0,60 | 72 |
12 | 40.000 | 6,83 | 5,03 | 1,35 | 7,60 | 5,80 | 0,70 | 88 |
13 | 50.000 | 8,43 | 5,03 | 1,35 | 9,20 | 5,80 | 0,85 | 105 |
14 | 60.000 | 7,63 | 6,53 | 1,35 | 8,40 | 7,30 | 1 | 120 |
15 | 80.000 | 9,57 | 6,47 | 1,45 | 10,40 | 7,30 | 1,20 | 148 |
16 | 100.000 | 9,67 | 7,92 | 1,45 | 10,50 | 8,75 | 1,40 | 178 |
17 | 125.000 | 11,77 | 7,92 | 1,45 | 12,60 | 8,75 | 1,60 | 212 |
18 | 150.000 | 14,17 | 7,92 | 1,45 | 15,00 | 8,75 | 1,80 | 252 |
19 | 200.000 | 14,67 | 10,07 | 1,45 | 15,50 | 10,90 | 2,20 | 323 |
20 | 250.000 | 14,87 | 12,27 | 1,45 | 15,70 | 13,10 | 2,50 | 392 |
21 | 300.000 | 15,17 | 14,47 | 1,45 | 16,00 | 15,30 | 2,90 | 465 |
22 | 350.000 | 14,67 | 17,37 | 1,45 | 15,50 | 18,20 | 3,20 | 535 |
Fabric Products from Nuclear is well packed.
The Banner is wrapped in 3" inner tube and waterproof Kraft Paper outside.
Nuclear can deliver the order to you in 20 – 25 workdays.

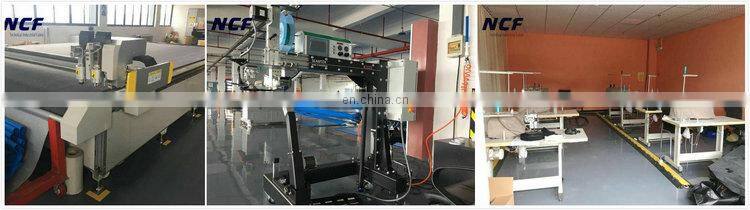

Our factory was established in 2005. Our quality system is certificated on ISO 9001: 2008. With 10 years professional experience, we hav e successfully served many big companies including Fortune 500 in the world.
We promise to offer you:
--By Professional experience
--Prompt reply to your inquiry
--Low cost. Free samples if need
--The price is negotiable when the quantity is big
FAQ
Q.If our quantity less than your MOQ,How can i make an order?
A.If your quantity is small,please contct our sales and send your reuqirements in details,we will help you
check our stock accordingly and send you feedback.
Q.How can i get a sample?
A.Samples size less than 1mts is for free,please ask it from our sales if you need some samples for testing
Q.Can you do fast deliverying?
A.20-25 workdays,if your order is urgent,we can do fast deliverying wihin7-10 days (for flex banner only)
Q.What can i do if i get the goods with bad quality?
A.1.Take photos of the goods with problem
2.Keep the goods for us
3.Send all your feedback to our sales,our client service team will help you solve the problem together.If the problem cuased by us,we will send you replacement in next order.
