5V 30A 150W AC DC Switch Mode Power Supply
- Shanghai, Shenzhen, Ningbo
- T/T L/C Credit Card PayPal Other
- 15 days
You May Like
-
Small Size AC to DC 32V 1A Open Frame Power Supply
-
AC DC 12 Volt 2A Power Supply Adapters
-
Best Saling 5V 12V 24V 36V 48V 35W ac dc Switching Power Supply
-
Standard 5V 12V 15V 24V 36V 48V 50W Switching Power Supply
-
Hot Saling 5V 12V 15V 24V 36V 48V 75W ac dc Power Supply
-
Factory Price 5V 12V 15V 24V 36V 48V 100W Power Supply
Product Details
| Brand Name | BINWAY | Place of Origin | China | |
| Model Number | BW150-5AC | Output Power | 101 - 200W | |
| Output Type | Single | Output Current | 30A | |
| Output Frequency | 50-60Hz | Output Voltage | 5VDC | |
| Input Voltage | Other, 100~240VAC |
Product Description
5V 30A 150W AC DC Switch Mode Power Supply
Description:
The BW150-5AC is a enclosed frame, convection cooled 150W power supply for LED lighting&display, automation control and industrial equipment. It is a universal design that accepts 85 to 264VAC input and generates up to 30A at 5 Volts. A high efficient and reliable power supply, overload, short circuit and over voltage protection with hiccup mode( recovering automatically after fault condition is removed).
Features:
? Universal AC input / Full range
? No load consumption<0.5W
? High efficiency, long life and high reliability
? Cooling by free air convection
? High operating temperature up to 70℃
? Protections : Short circuit / Overload / Over voltage
? 100% full load burn-in test
? Low profile
? 2 years warranty

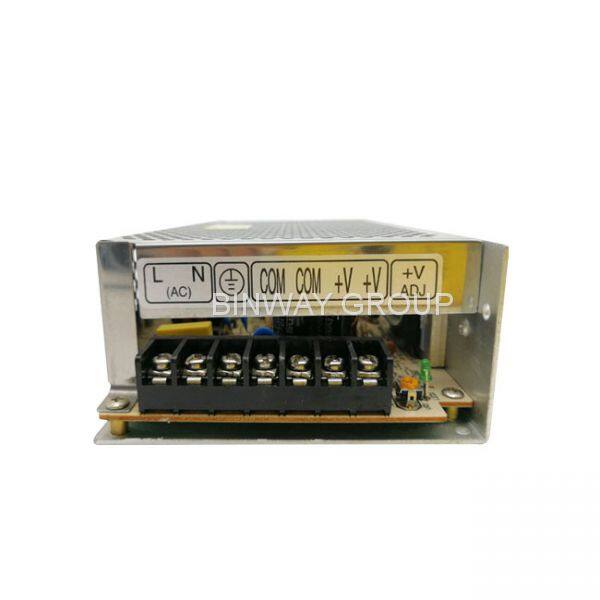

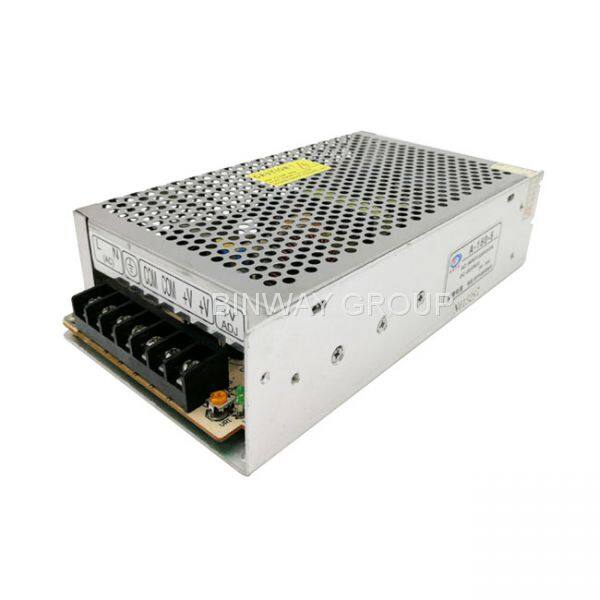

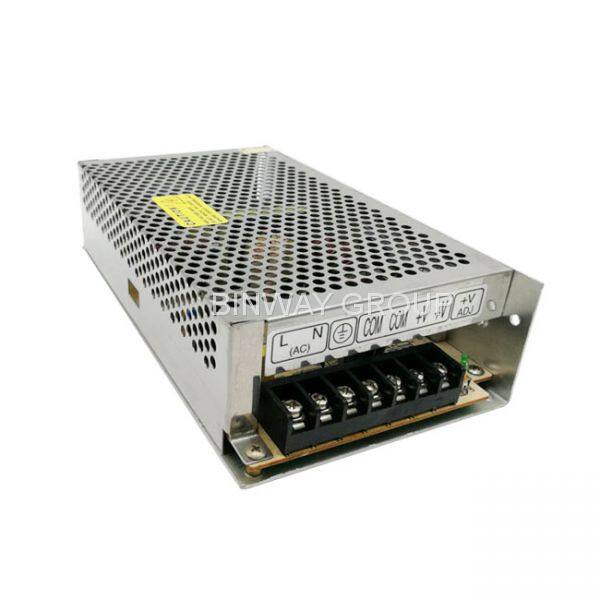

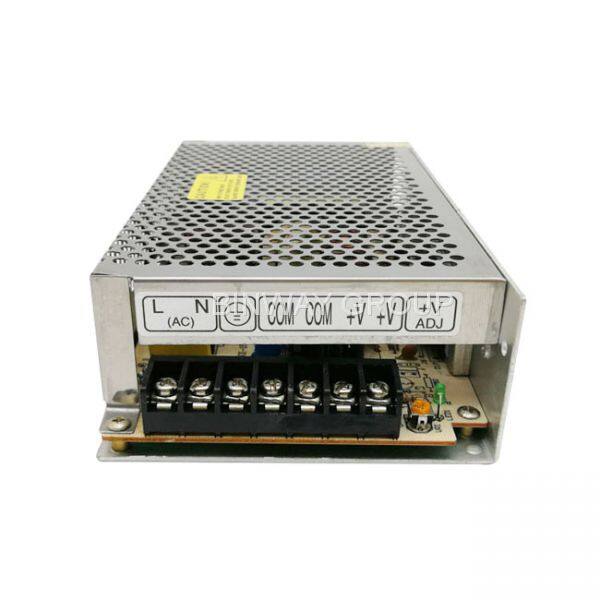

Images:
Specification:
Model | BW150-5AC | ||
Output | DC Voltage | 5VDC | |
Rated Current | 30A , 0~30A | ||
Voltage Adj. Range | ±1% rated output voltage | ||
Rise Time | 20ms | ||
Input | Voltage Range | 220V±15% | |
Inrush Current(max.) | Cold start, 40A at 230VAC | ||
Protection | Overload | Range | 105%~135% |
Type | Constant current limiting, auto-recovery | ||
Over Voltage | 115%~140% | ||
Environment | Working Temperature | -20~+65℃( refer to output derating curve) | |
Vibration | 10-500Hz,,2G10min,/cycle, period for 60min,Each axes | ||
Safety&EMC | Safety Standard | UL60950-1, TUV EN60950-1 | |
Withstand Voltage | I/P- O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P -FG: 0.5kVAC, 1 minute | ||
Isolation Resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | ||
EMC Standard | EN55022 class B, EN610+C3:D1700-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN55024 | ||
Others | Dimension | 135mm*75mm*38mm( L*W*H) | |
Packing | In cartons, quantity shipping with cartons on wood pallet | ||
Weight | 0.65Kgs | ||
Outside Protection | Aluminum case | ||
