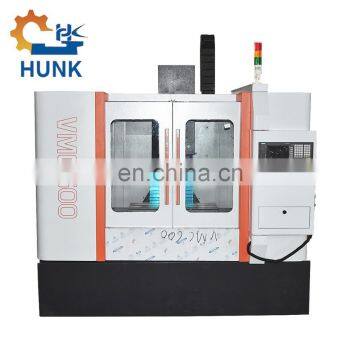

Fanuc Vmc Machine Price VMC460L Benchtop CNC Universal Milling Machine

FOB Price

US$ 21,500 - 22,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Technical parameter

Item	unit	VMC350	VMC460	VMC600
Table size	mm	390*230	800*300	800*360
Load capacity	kg	150	200	350
T slot		3-16-63	3-14*80	3-14*115
X axis travel	mm	350	460	600
Y axis travel	mm	260	320	400
Z axis travel	mm	350	460	500
Distance from spindle center to table	mm	99-440	90-550	100-600
Distance from spindle center to columnslide way	mm	294	395	430
Tool shank		BT30	BT30/BT40	BT40
Spindle speed	RPM	10000	10000	8000
Spindle motor power	KW	2.2/3.7	3.7	5.5
MAX.diameter of tool	mm	30/80	80/120	120*200
MAX,length of tool	mm	120	200	350
MAX.weight of tool	kg	3	6	8
X/Y-axis rapid moving speed	mm	10000	20000	30000
Z axis rapid moving speed	mm	10000	20000	30000
Feed rate	mm/min	1-4000	1-4000	2.5-3000
Positioning accuracy	mm	0.02	0.012	0.015
Repeated positioning accuracy	mm	0.01/300	0.007	0.0075
Out dimension	mm	180016502160	180017502000	240022502270
Weight	kg	1800	1900	3300

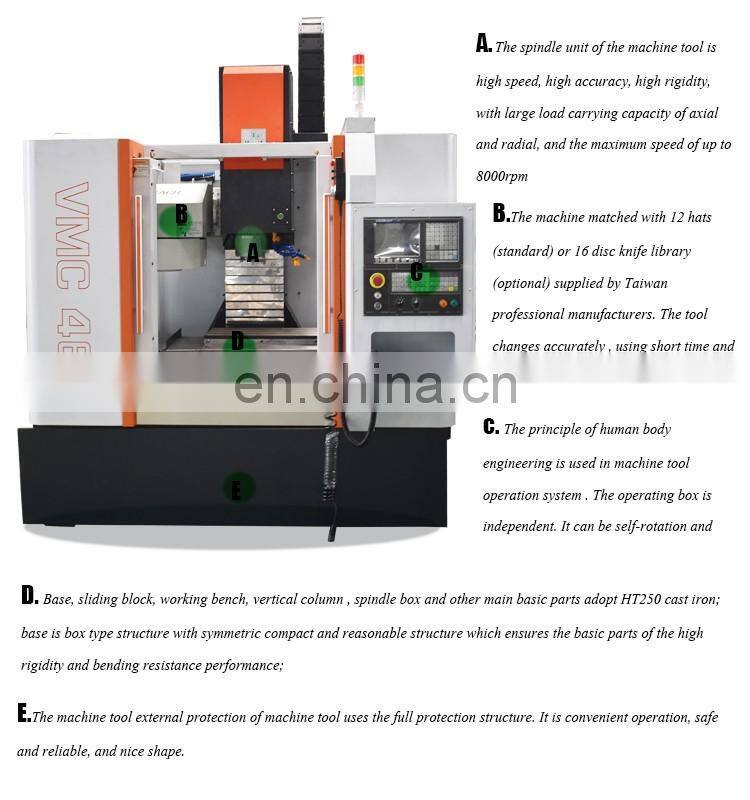

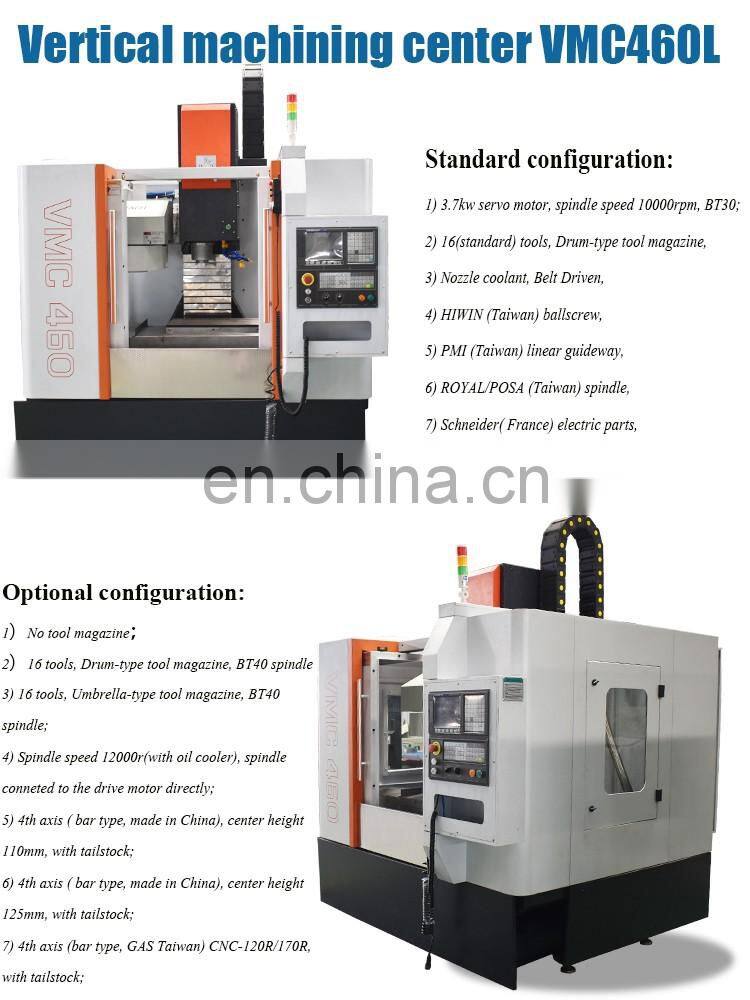

Main feature

Main components

NO	ITEM	Model Number	Place of origin	Quentity	Remarks
1	Spindle	BT40(socketφ120)	Taiwan	1set
2	Boosting unclamping cylinder	3.5T	Xieqing (Wuxi)	1set
3	Bamboo hat type knife managine	BT40-16T	Taiwan	1set	Standard
4	Disc cutter	BT40-16T or 20T	Taiwan	1set	Optional
5	X ball screw	3210/P3	Domestic	1 pair	Taiwan Optional
6	Y ball screw	3210 /P3	Domestic	1 pair	Taiwan Optional
7	Z ball screw	3210/P3	Domestic	1 pair	Taiwan Optional
8	Special bearing		NSK or FAG	6 pairs
9	Double disc coupling		Domestic	3
10	Cooling pump		Taiwan	1
11	Lubrication system	Single track damping type	Nanjing	1 set
12	Pneumatic system	AirTAC	SMC	1 set

Packing & Delivery

Our Service

1.24 hours on Internet and Telephone, free instruction and problem solving.

2. Free training how to use cnc lathe machine.

3. User-friendly English manual or operating video for machine using and maintaining.

4. on-the-spot training and installation can be met if required.

5. We always deliver CNC lathe machine on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.
