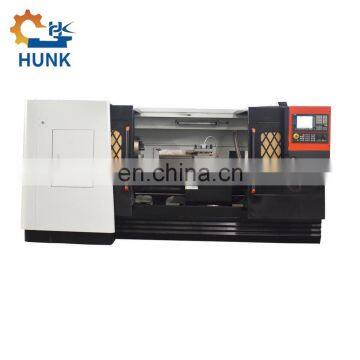

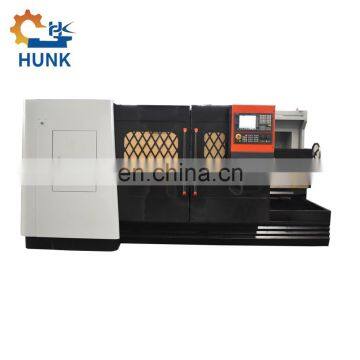

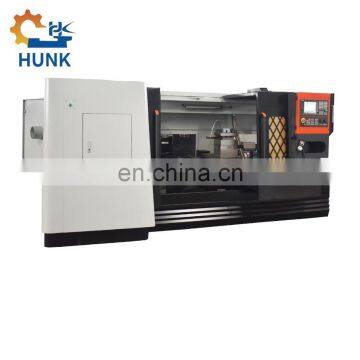

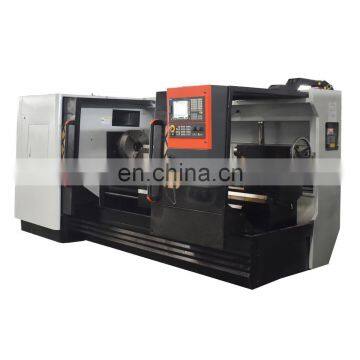

Table Top CNC Lathe Drilling Machine for Metal CK6180

FOB Price

US$ 14000.00 - 15000.00 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Technical parameter

Item	Unit	CK6163	ck6180	CK61100	CK61125
Max.swing over bed	mm	630	800	1000	1250
Max.swing over slide	mm	350	480	600	850
cessing length	mm	1500	1500/3000/6000
Guideway width of bed	mm	550	550	660	660
X axis travel	mm	400	400	520	625
Z axis travel	mm	1000/1500 /2000/3000	1500/2000 /3000/4000	1500/2000 /3000
X/Z axis lead screw	m/min	4/7		4/5
X/Z axis Rapid speed	mm	0.025/0.03
X//Z positioning precision		0.01/0.015
X/Z repositioning precision		IT6-IT7
Processing precision		0.01
Surface Roughness		Ra1.6
Spindle speed Range		Three steps frequency,40-125,110-350,290-950		Three steps frequency,15-500
Spindle head type		C11
Dia.of spindle Thru-hole	mm	105		130
Spindle Hole tapper	mm	1:20(metric system)120		1:20(metric system)140

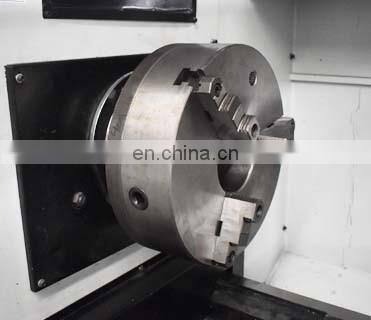

Chuck	mm	320(12")	400(16")	500(20")
Spindle motor power	kw	11	11/15	15

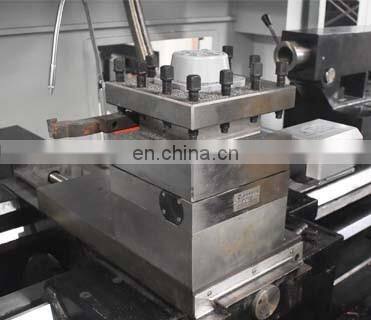

Tool Holder type		vertical 4 stations (Horizontal 6 stations)
Turning tool size	mm	30*30		35*35
Tailstock sleeve travel	mm	250
Tailstock sleeve Dia.	mm	100
Tailstock sleeve Tapper	mm	Morse5		Morse6

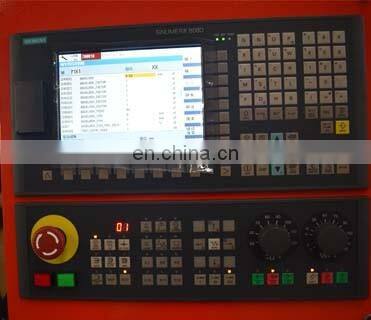

Control system		1)SIEMENS;2)FANUC;3)KND;4)GSK;5)MITSUBISHI;6)Syntec;

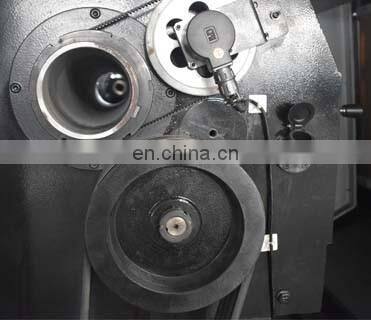

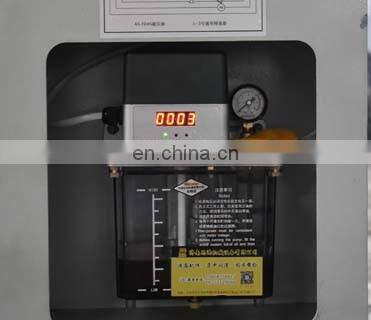

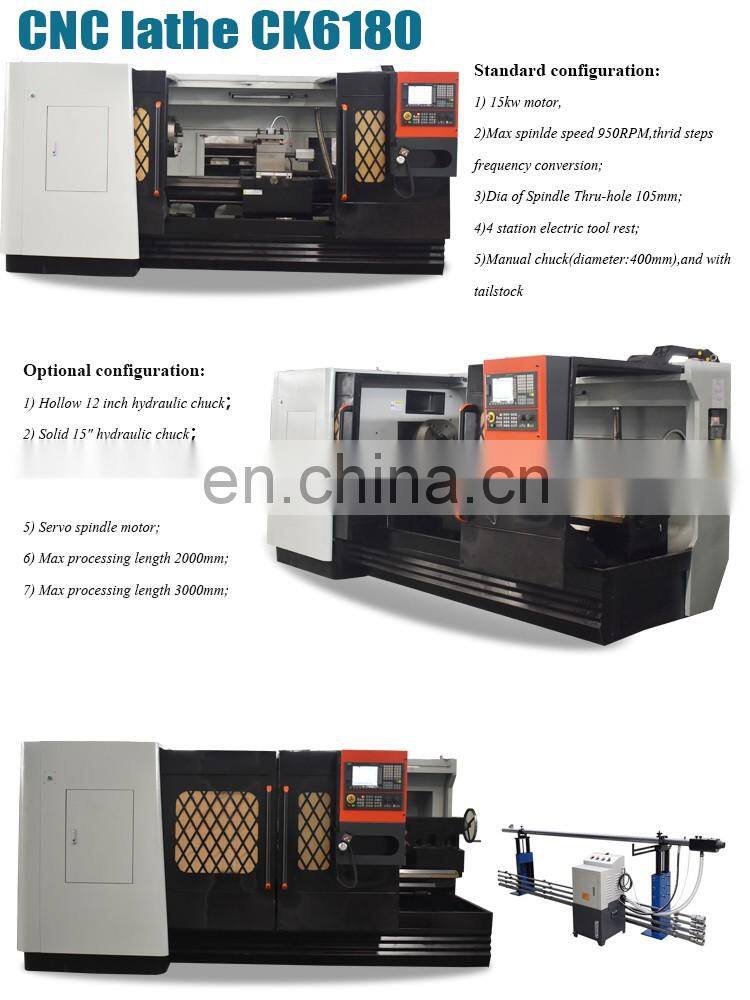

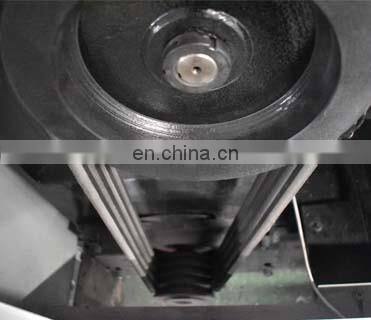

Detailed Image

Packing & Delivery

Our Service

1.24 hours on Internet and Telephone, free instruction and problem solving.

2. Free training how to use cnc lathe machine.

3. User-friendly English manual or operating video for machine using and maintaining.

4. on-the-spot training and installation can be met if required.

5. We always deliver CNC lathe machine on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.
