220 v Mini Cnc Torno Metal Milling Machines With Automatic Feed

FOB Price

US$ 23,000 - 34,000 / Unit

1 Unit(Min. Order)

Port Qingdao port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

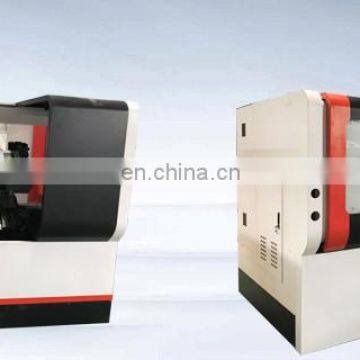

220 v Mini Cnc Torno Metal Milling Machines with Automatic Feed

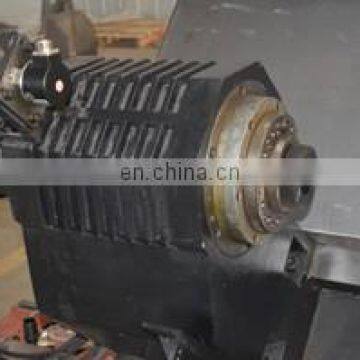

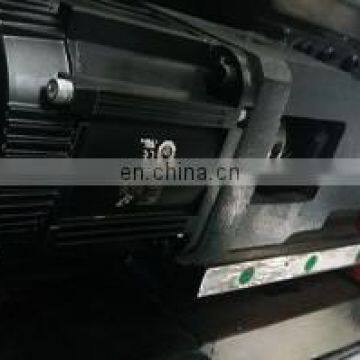

Detailed Images

Main components

NO	ITEM	Model No.	Origin	Quantity	Note
1	The top		Domestic	1 set
2	X screw pair to the ball	2505	Taiwan	1 pair
3	Z screw pair to the ball	3210/P3	Taiwan	1 pair
4	Angular contact ball bearings		NSK	1 set	With screw
5	X, Z line rail		Taiwan
6	Angular contact ball bearings		NSK	2 sets	With screw
7	Double grinding coupling		Domestic	2
8	Cooling pump		Domestic	1

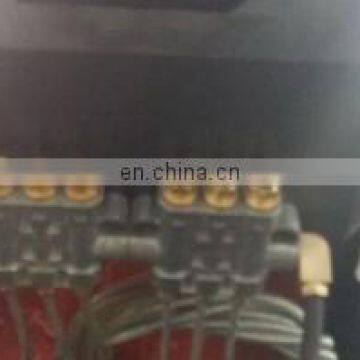

9	Lubrication system		Domestic	1 set
10	The hydraulic power tool turret of 8 stations		Taiwan	1 set

Technical Parameter

Specification	Unit	CK32	CK36	CK40	CK50	CK63	CK80
Max swing over bed	mm	320	360	400	500	630	800
Max swing over slide	mm	160	220	320	320	500	640
Max processing length	mm	350	350	450	550	890	890
Max cutting diameter	mm	200	254	360	420	630	800
Max bar dia.	mm	40	45	51	51	75	90
Spindle speed	rmp	4000	4000	3500	2500	2200	1500
Through hole dia.	mm	41	56	56	66/82	86	112
Chuck dia.	mm	160	200	200	250	320	380
Motor power	kw	3.7	3.7/5.5	3.7/5.5	5.5/7.5/11	11/15	18/22
Body structure		30º integrated		45º integrated		30º integrated
X axis travel	mm	200	200	210	260	410	410
Z axis travel	mm	350	350	450	550	860	860
Tool size	mm	20*20	20*20	20*20	25*25	25*25	25*25
Tailstock sleeve dia.	mm	52	52	52	75	150	150
Tailstock sleeve travel	mm	60	60	60	100	150	150
Process precision		IT6
Tailstock sleeve taper		MT4	MT4	MT4	MT5	MT5	MT5

Our Company

Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company. We are located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales.

It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

Certifications

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.

“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.
