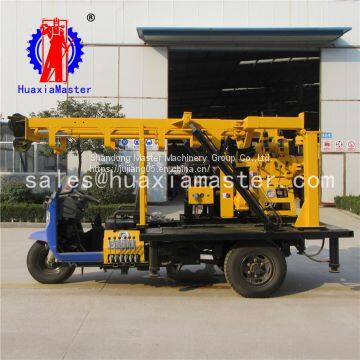

In stock XYC-200A tricycle-mounted hydraulic core drilling rig 200 meters exploration drilling rig for sale

1. Characteristics of XYC-200A  tricycle-mounted hydraulic core drilling rig

· XYC-200A tricycle-mounted hydraulic core drilling rig is multi-function hydraulic vehicle-mounted core drilling machine .

· The tricycle is Tricar. The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.

· XYC-200A tricycle-mounted hydraulic core drilling rig with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.

· The tricycle drilling rig is equipped with shift unit,so the drilling rig can move back and forth

· The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency

· The drilling rig is Adopted 53*59 drilling rod, which has high rigidity and strong delivery torque

· Equipped with taper clutch, made the machine easy to operate and free of maintenance.

· Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.

· Vertical spindle are fixed by four groups of bearings to ensure that the core rig is rigid enough for gravel layer and other complex geological conditions.

2. Parameters of XYC-200A tricycle-mounted hydraulic core drilling rig
