Home > Products > wheel cnc lathe > CK6166A the Wheel Doctor Diamond Cut Rim Repair Lathe Machine

CK6166A the Wheel Doctor Diamond Cut Rim Repair Lathe Machine

FOB Price

US$ 10,000 - 20,000 / Set

1 Set(Min. Order)

Port Qingdao /Tianjin/shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HaiShu	Place of Origin	Shandong, China
Model Number	CK6166A	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Packaging Details

CK6166A the wheel doctor diamond cut rim repair lathe machine">standard wooden box
CK6166A the wheel doctor diamond cut rim repair lathe machine

Product Description

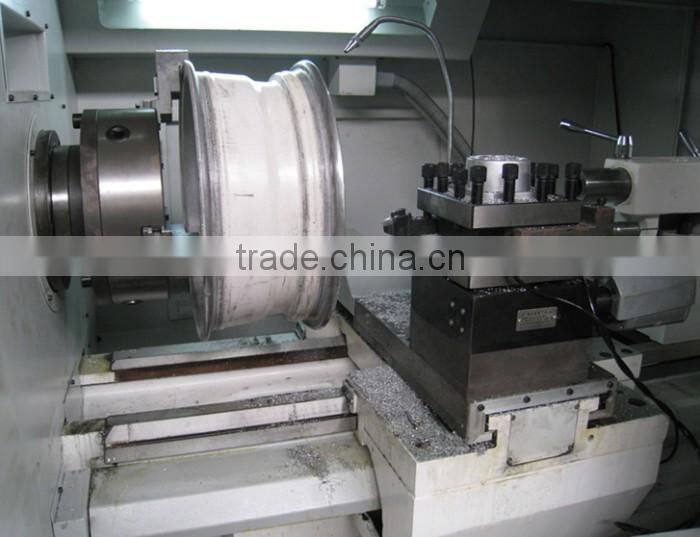

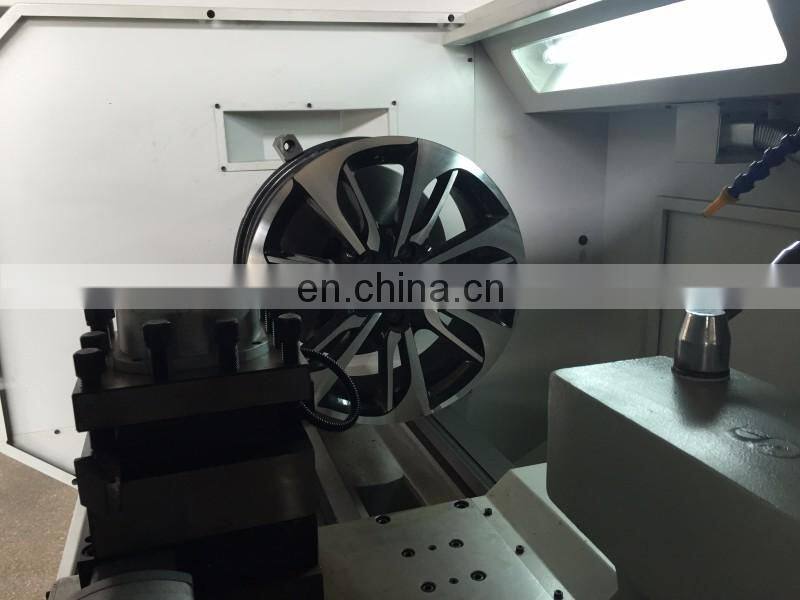

Detailed Images

SPECIFICATION

Project name	Unit	Technical paramaters
Max. wheel diameter	Inch	20"
Max. workpiece length	mm	750
Probe measuring direction		X,Z
Probe needle	mm	φ3 × 40, φ6 × 50, or optional
Machning accuracy		IT6~IT7
Surface roughness	um	Ra0.8~1.6
Main transmission form		Independent spindle;
frequency conversion stepless		Frequency stepless speed
Range of spindle speed	rpm	150~2800
Main motor power	kw	5.5
Fast-moving feed	mm/min	X - axis:5000 Z - axis:8000
Repeat positioning accuracy	mm	X - axis:0.01 Z - axis:0.015
Turret form		4 station electric turret
Repeat positioning accuracy	mm	0.008
Section of turning tool	mm	25×25
The size of the machine	mm	X:0.01 Z:0.015
(L×W×H)	mm	2100×1440×1820
Net weight of the machine	Kg	2000

Product Description

◆Achieve the wheel surface profile measurement and data collection and Program Optimization.
◆Automatic precision repair and machining in accordance with the curve of the wheel surface.
◆Self-developed curve optimization software. Multilingual language interface. Installation and operation is simple.
◆Spindle frequency stepless speed.
◆X / Z axis servo drive.
◆Manual jaw self-centering chuck.
◆Machine guard full protection.
◆Automatic oil lubrication.

certificates

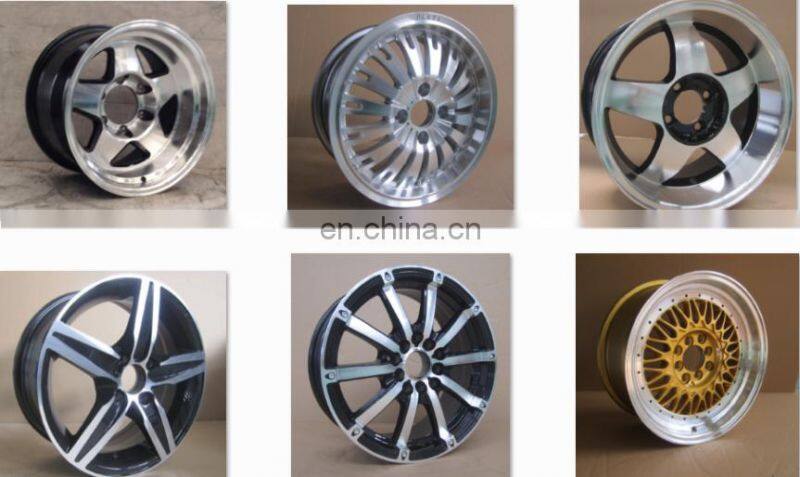

work pieces processed by the cnc lathe

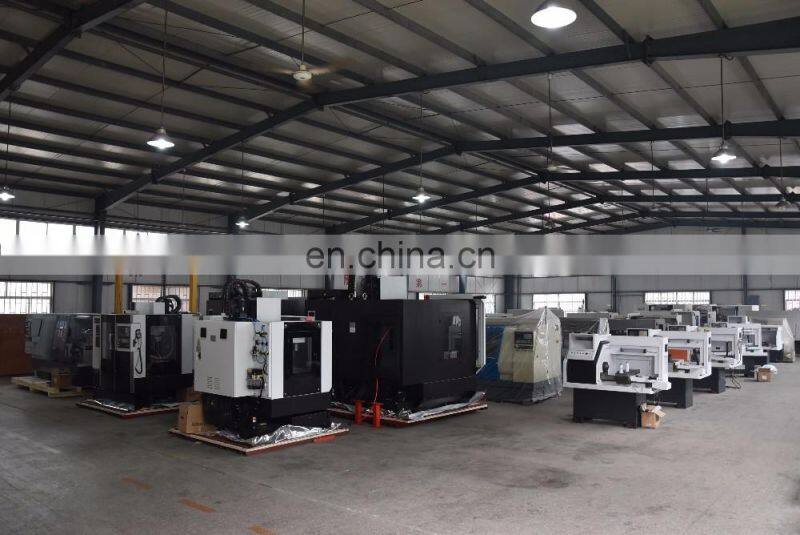

Our FACTORY

Packing & Delivery

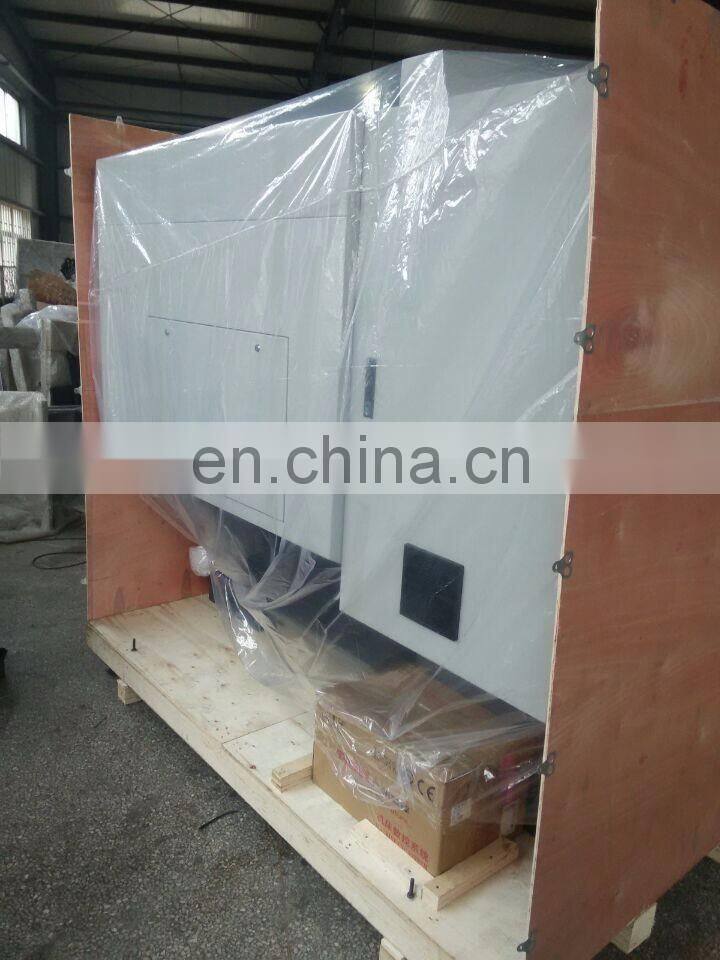

Packaging
Size	2130×1530×1910
Weight	2.2 T
Packaging Details	The normal package is wooden box. we will use pe film for packing or pack it according to customers special request.

customer visits

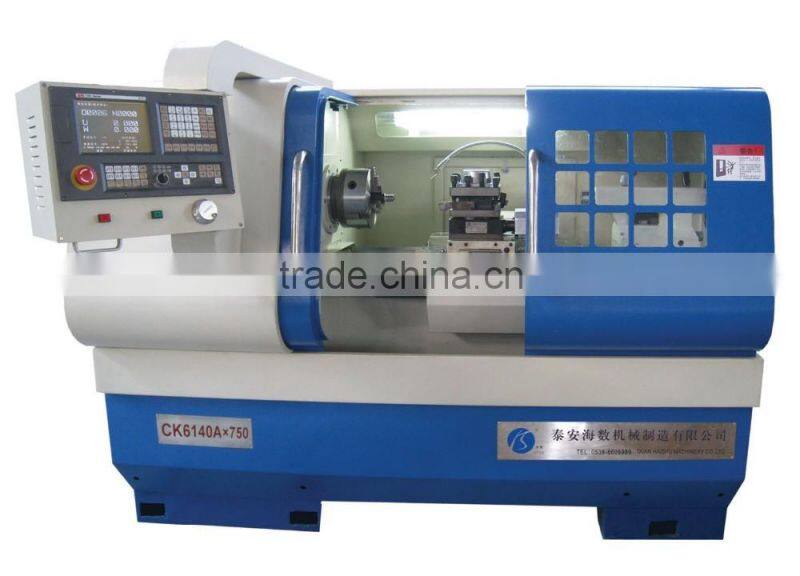

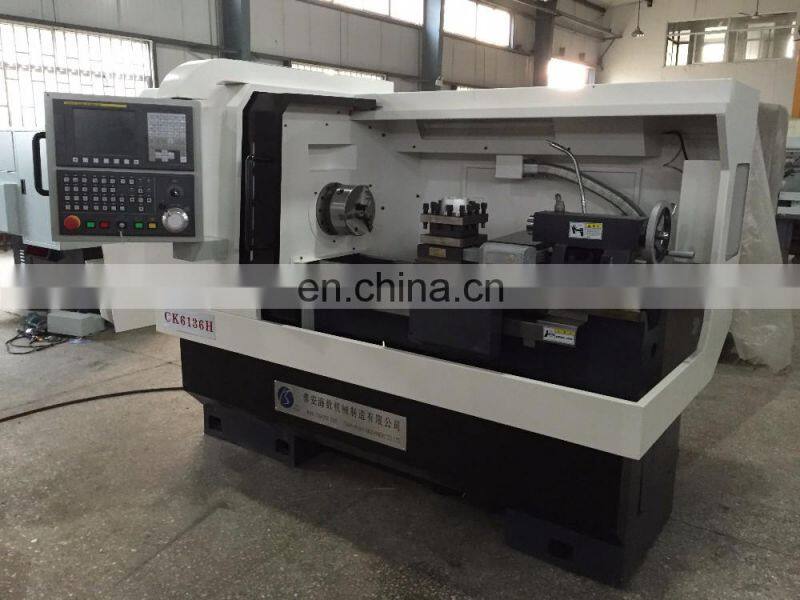

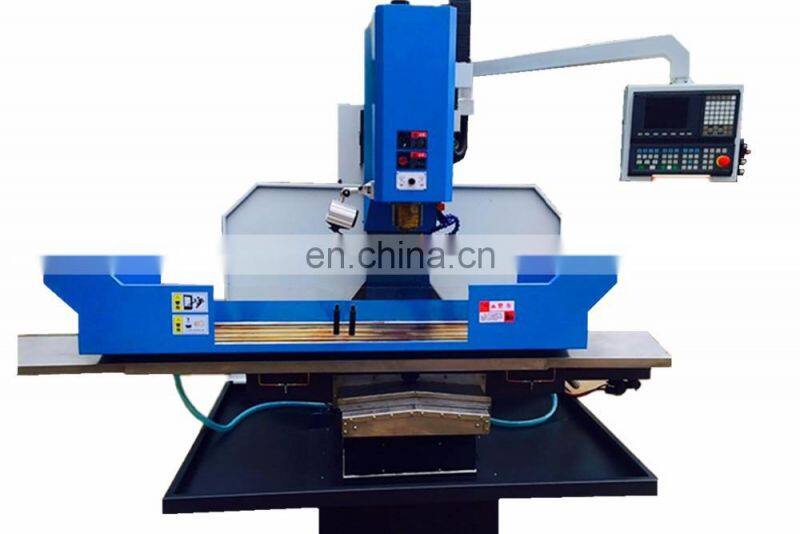

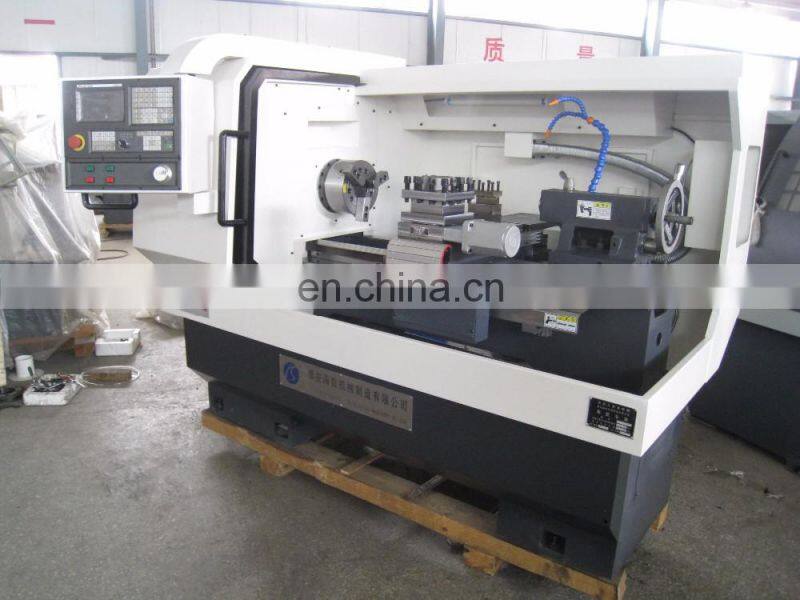

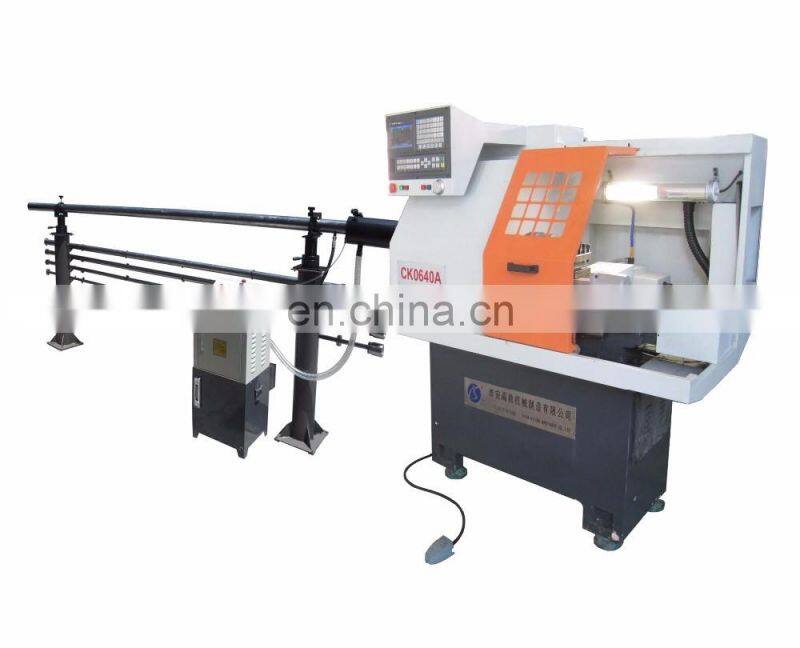

Products show

Company Profile

Horizontal Lathe Co., Ltd.

All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
