Product Details
| Brand Name | HaiShu | Place of Origin | Shandong, China | |
| After-sales Service Provided | Engineers available to service machinery overseas | Condition | New |
standard exported package case,Fumigation crates
Product Description
CNC lathe horizontal automatic machine cnc CK6140 german cnc machines
Item | Project name | Technical paramaters | |
CK6140A | |||
technical specifications | Max.swiming over the bed dia. (mm) | Φ400 | |
Max.swiming over pallet(mm) | Φ245 | ||
Max.the workpiece length(mm) | 750/1000 | ||
Main transmission | Main transmission form | Independent spindle, stepless frequency conversion timing | |
Number of spindle speeds | stepless | ||
Range of spindle speed(r/min) | 200~2500 | ||
Spindle centering axial taper | MT6 | ||
Chuck size(mm) | Φ200/Φ250 | ||
The nose type | No.6, A2 | ||
Spindle bore(mm) | 60mm | ||
Main motor power(kw) | 5.5kw | ||
Feed system | Turret maximum stroke(mm) | X - axis: 260 Z - axis:750 | |
Fast-moving feed(mm/min) | X - axis:6000 Z - axis:8000 | ||
Repeat positioning accuracy(mm) | X - axis:0.01 Z - axis:0.015 | ||
Workpiece accuracy | IT6-IT7 | ||
Workpiece surface roughness | Ra1.6 | ||
tailstock | Dia. of tailstock quill(mm) | Φ60 | |
Tailstock quill stroke(mm) | 120 | ||
Taper of tailstock quill | MT4 | ||
Tool post | Standard accessories | 4 station electric tool | |
Opinional accessories | 6 tool post or 8 tool post | ||
Repeat positioning accuracy(mm) | 0.008 | ||
Section of turning tool(mm) | 25*25 | ||
Size and weight | The size of the machine (length*width*height)(mm) | 2400*1450*1650 | |
Net weight of the machine(kg) | 2000 | ||
standard configurations:
1.CNC system :GSK928
2. 4-position tools
3.Automatic lubrication pump
4. Manual 3-jaw chuck 250mm
5.Manual tailstock
6.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)
7.lighting system,.coolant system
optional accessory:
1.hydraulic chuck---solid/hollow
2.hydraulic tailstock
3.auto bar feeder
4.slant bed
5. six/ eight tool post
GSK controller auto lubrication pump
6 electric tool post 8 electric tool post

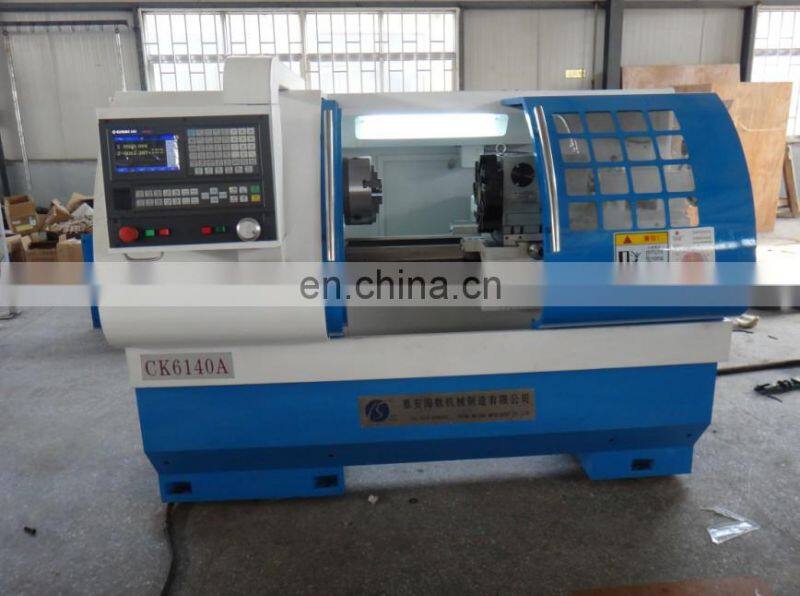

finished machine

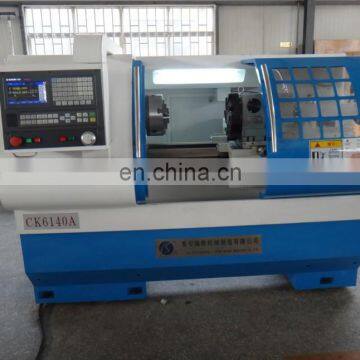

cnc lathe machine CK6140A
package: standard exported package case, composite material box !
shipping: truck, train,shipping!
sapmle service,customized service,best and total after-sales service !
engineer provide installment and training freely!
We have our own factory, We have manufactured cnc lathe machine for more than 10 years. We have good quality and price.
We exported many countries, For example Italy,Australia, Russia ,Greece ,Lithuania, Lebanon,Turkey,Belarus,India,Germany,America,
Peru,Mexico,New Zealand, Czech Republic,Indonesia... etc.
Our machine through the EU CE certification
Some of the factors that have attributed to our success and have made us the most preferred business partner are:
l State of the art manufacturing unit
l Qualified and experienced professional team
l Strong R&D
l Quality products
l Timely Execution of projects
l Competitive pricing
l Customer focused approach
Company Profile
All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
