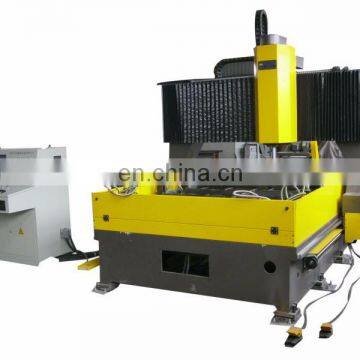

TPD3016 CNC Plate Drilling Machine

Name

Specifications

Max work piece size (W×L)

1 piece: 3000X1600mm plate

2 pieces:1600 X1500mm plate

4 pieces:1500 X800mm plate

Thickness of work piece

5--100mm

Morse taper hole of drill chuck

#4 (attached with #1, #2, #3 reducing sleeve)

Drill unit type

sliding table, servo control

Drill head quantity

1

Max drill diameter

12- 50mm

Power of main motor

5.5 kW

Spindle speed

120~560r/min (frequency control)

Spindle vertical stoke (Z axis)

350mm

Champs number

12

Champing force(kN)

7.5kN

Drive mode of gantry longitudinal (X axis)

Guided by linear rolling guide; driven by AC servo motor and ball screw pairs.

Servo motor power of X axis

1.3 kW

Power head lateral driving type (Y axis)

Guided by linear rolling guide; driven by AC servo motor and ball screw pairs.

Servo motor power of Y axis

1.3 kW

Servo motor power of Z axis

0.85 kW

Motor power of chip cleaner

0.4 kW

Motor power of cooling system

0.45 kW

Hydraulic system power

3.7 kW

Coolant volume

100L

Hydraulic clamping pressure

6Mpa (60kgf/cm²)

Hydraulic feeding pressure

2Mpa (20kgf/cm²)

Air pressure

0.6Mpa (6kgf/cm²)

Clamping type

Attach Morse 4# quick chuck and 3#, 2# reducing sleeve

Electric control cabinet

With dustproof ventilating device and LENOVO computer

Electric control type

MISTUBISHI PLC

CNC axis quantity

3

With function of CAD/CAM automatic generation

With function of hole site memory (memory hole site if power off suddenly) and drill pause

Total power

≈11kW

Total weight

≈8.5 t

Overall dimension (L *W *H)mm

7490×4460×2790
