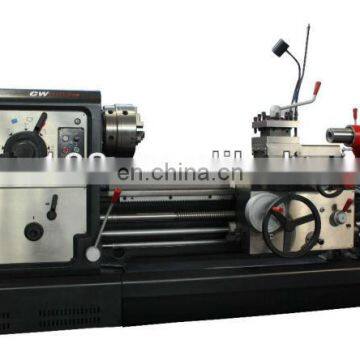

Heavy Duty Conventional Lathe CW6180B/3000

• Application

This series of machines can be used for all kinds of turning processes; internal and external tapers, other types of rotary surfaces, all kinds of common straight or tapered threads- inch, metric, diametral, and module pitches. They can also used in broach oil grooves and keyways, etc.
This series of machine can be used to machine cast iron, steel, non-ferrous metals, and other materials as well.

• Design feature

This series of machines adopts a complex body casting with a combination of both box and angular internal ribbing resulting in a wide base and bed structure that is at least 1/3 more rigid than machines of more common design.
The carriage is equipped with a feed/rapid joystick control that is intuitive and easy to use.
Spindle forward/reverse and braking are convenient for the operator to use. The brake is sensitive, safe, and reliable.
The machine has good rigidity, in terms of both structure, but also power transmission. The machine has stable accuracy, and can also take heavy cuts. The underside of slideways are coated with TSF improved turtite-style anti-friction material, giving the machine lighter, easier movement and longer service life. The lubrication system adopts an automatic external reservoir, which improves machining accuracy and reduces wear. The tailstock is equipped with a scale dial which makes feeding of the quill intuitive to the user.
This series of machine has good aesthetic appearance, and is easy to clean and maintain. The inside of the headstock has a forced lubrication system that uses hydraulic oil, making sure that all moving parts are constantly lubricated.
A separate coolant system is included with the machine.

• Technical specification
