Product Details
Brand Name | Lu Young | Place of Origin | Shandong, China | |
Model Number | H36 | After-sales Service Provided | Engineers available to service machinery overseas | |
Condition | New |
Product Description

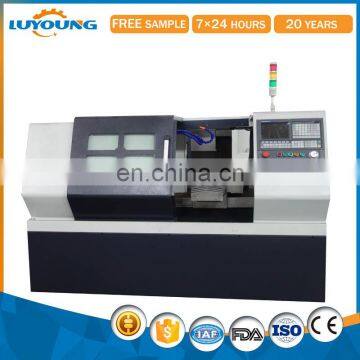

H36 mini hobby CNC lathe machine price
H36 mini hobby CNC lathe machine price adopt mechatronics design,With advatages of reliable and harmonious structure ,easy to be operated and mutifunctional , it’s right for processing small parts.
CK0640 |
CNC machinery | H36 |
Max. swing over bed | 360mm |
max. swing over slide | 140mm |
Max turning length | 250mm |
X axis | 340mm |
Z axis | 250mm |
Guideway | Taiwan Hiwin Linear |
Spindle speed | 2500/4000 rpm |
Spindle bore | 48 mm |
Max. Bar capacity | 38 mm |
Rapid traverse | 15m/min |
Main motor | 4KW |
Tools | Gang tool, 8-tool hydraulic turret |
x/z position accuracy | 0.016/0.02mm |
x/z re-positioning | 0.006 |
machine dimension | 1900*1340*1710mm |
Weight | 1500kg |
Standard configuration: | Option configuration: |
GSK 928TD-L | Siemens,fanuc cnc controller |
Pneumatic spring collet(2pcs free) | 4 station electrice tool holder |
Gang type tool carrier | Auto feeder system |
Manual Tailstock | Pneumatic chuck |
Auto lubrication system | Hydrualic chuck |
Lighting system | pneumatice tailstock |
Cooling system | hydraulic tailstock |
380V 3 phase(if your local have special request pls let us know) |
|
- 1. Wear resistant guide rail with durable service life
- 2.Two forms of clamping the workpiece:three-jaw chuck,hydraulic chuck.
- 3.Custom-made service: machine tool accessories ,control systems to choose in accordance with user ‘s requirments(four or six-station tool,knife tool optional row: hydraulic chuck,hydraulic cylinder optional)
- 4.Reliable quality:Every control system equipped from world famous brand like:GSK ,Fanuc,siemens.The key part - casting need to goes through complex procedure and repeatedly test,and the hardness could over HRC 50°,along with wear resistant guide rail and stainless steel shield ,they are assurance of high working precision and durable service life for more than 10 years .
- Packaging:sea worthy standard wooden case
- Shipment: 15-30 days after payment
Taian Luyoung Machinery is located in Shandong province , which is the region of world famous mountain Tai and one of the cradleland of Chinese culture . Luyoung have engaged in the line of manufacturing and trading CNC machines for more than 20 years.Our prodct contains:CNC lathe machine , CNC milling machine,CNC machine center , CNC Swiss type lathe . With mission “ credit is the basic , quality is the first ” , we can ensure the prime quality and the most impressive price in the industry,and we are going further and further on pursuing high quality ,high standard and high satisfaction.
- 1. Customized service: Just tell us your needs about our service or the goods.
- 2. 7*24 hours service: We’d love to offer help anytime,be free to contact us please.
- 3. Customer visit & Free training:Welcom to China and visit our workshop and poducts
- 4.Warranty: We supply replacement parts for free if the machine is proved defective within 12 months .While the guarantee period of computor range from 1-3years.according to the brand
1.What if I have problem with using mahine ?
(1)Be free to call or E-mail us anytime ,we're ready to offer help in 7*24 hours .
(2)Free training is available .
(3)Moreover ,every machine would be equiped with a manual operation.
2.About payment .
We accept L/C,T/T,D/A,D/P ,and 30% deposit advanced by T/T ,the balance should be paid before the shipment.
3.About delivery .
Generally,we can deliver the goods within 30 days .
4.How can I get the quotation ?
You can contact us by phone or e-mail on my name card below.Send us your requirments ,the best offer would be provided soon.
5.I don't know how to choose the right model?
Send us the workpiece ,we'll help you to choose the right one.
