Product Details
| Brand Name | Lu Young | Place of Origin | Shandong, China | |
| Model Number | CK0640A | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
High rpm types of drilling machine cnc lathe tool CK0640A
Product Description

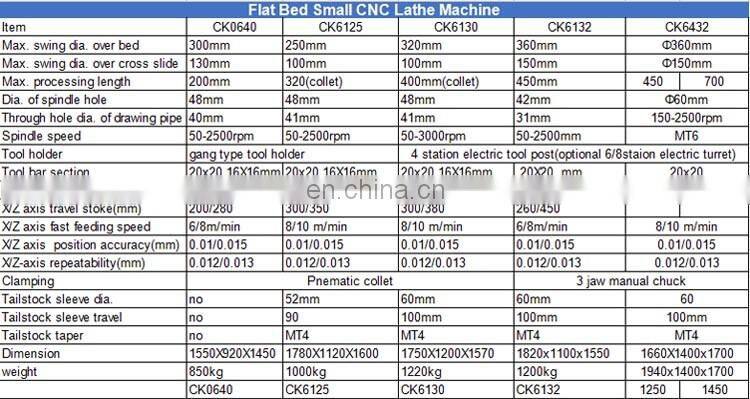

| Flat Bed Small CNC Lathe Machine | |
| Item | CK0640 |
| Max. swing dia. over bed | 300mm |
| Max. swing dia. over cross slide | 130mm |
| Max. processing length | 200mm |
| Dia. of spindle hole | 48mm |
| Through hole dia. of drawing pipe | 40mm |
| Spindle speed | 50-2500rpm |
| Tool holder | gang type tool holder |
| Tool bar section | 20x20 16X16mm |
| Main motor power | 3kw |
| X/Z axis travel stoke(mm) | 200/280 |
| X/Z axis fast feeding speed | 6/8m/min |
| X/Z axis position accuracy(mm) | 0.01/0.015 |
| X/Z-axis repeatability(mm) | 0.012/0.013 |
| Clamping | Pneumatic collet |
| Tailstock sleeve dia. | no |
| Tailstock sleeve travel | no |
| Tailstock taper | no |
| Dimension | 1550X920X1450 |
| weight | 850kg |
| CK0640 | |
| Standard configuration: | Option configuration: |
| GSK 928TD-L | Siemens,fanuc cnc controller |
| Pneumatic spring collet(2pcs free) | 4 station electrice tool holder |
| Gang type tool carrier | Auto feeder system |
| Auto lubrication system | Pneumatic chuck |
| Lighting system | Hydrualic chuck |
| Cooling system | Tailstock |
| 380V 3 phase(if your local have special request pls let us know) | |

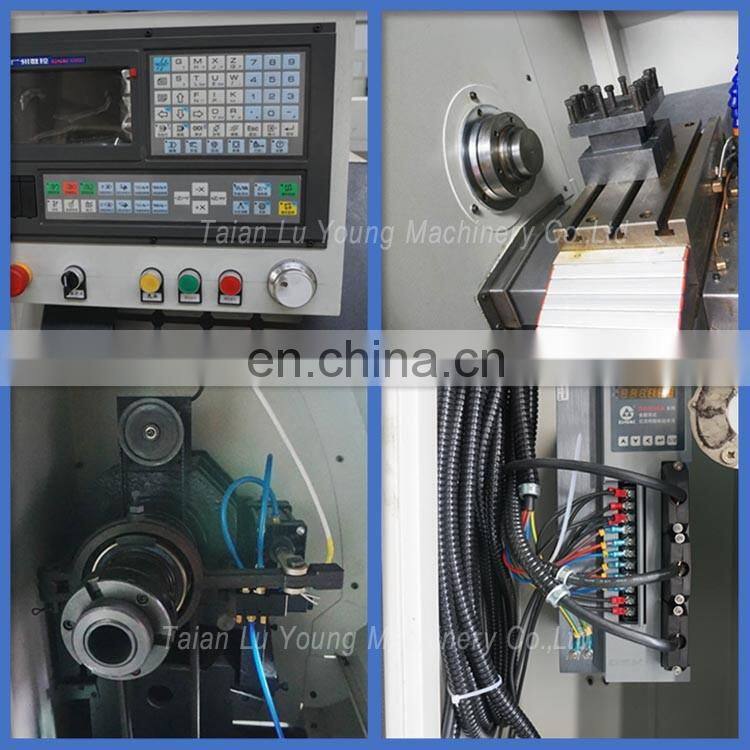

| Detail Photo: |
|

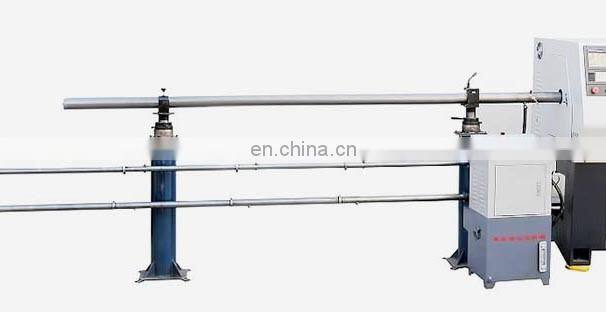

| Auto feeder system: |
|

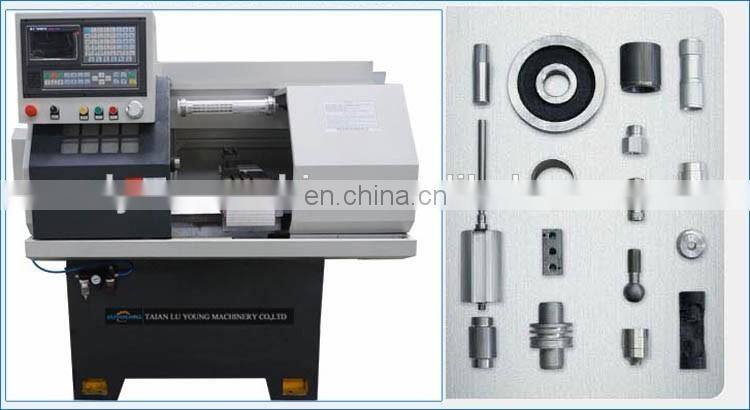

| Machining Samples: |
|
Related Products
Who Choose US
| Our Customer |
| |
Packaging & Shipping
- We have 20 years experiences in cnc machine export.
- According the weight of our machine,we desgin defferent package to insure the transportation safety.
- We choose famous and well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well.
Contact with US
| Trade Contact! |
You Will Get Best Offer Within 24 Hours Attn : Bruce Yang Mobile &WhatsApp &Wechat : +86-18660852746 Skype :bruceyang688 |
|
