The Stronger Quality XQ6132 Nantong Milling Machine
- T/T Credit Card
You May Like
-
XK7132 XK7136 XK7140 VMC7032 VMC7036 VMC7040 CNC MILLING MACHINE CENTER PRICE for Sale Metal Working
-
DB20V Milling Machine
-
A Large Number of Low-cost Supply Dental Milling Machine
-
VMC320L Linear Guideway Cnc Milling Machine 5 Axis
-
VMC320L Linear Guideway Cnc Milling Machine Frame
-
VMC650L Linear Guideway Used Mini Cnc Milling Machine
Product Details
| Brand Name | Steel horse | Place of Origin | Shandong, China | |
| Model Number | XQ6132B | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description

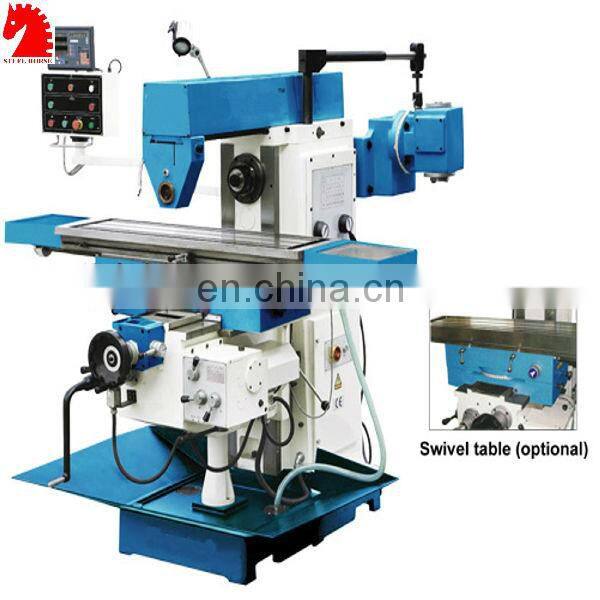

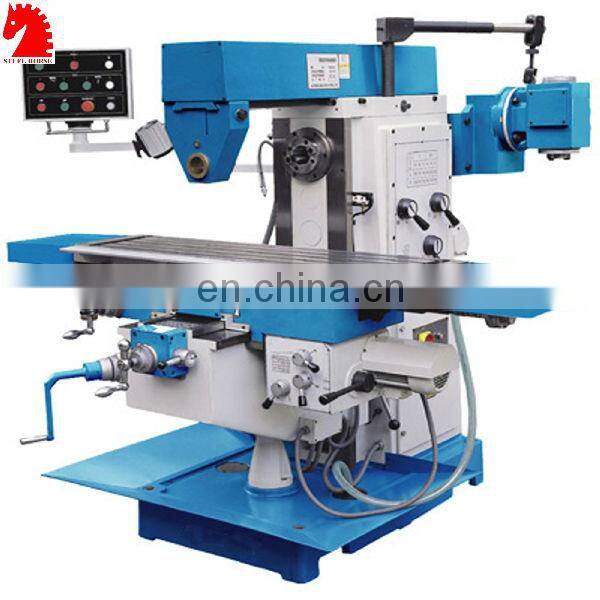

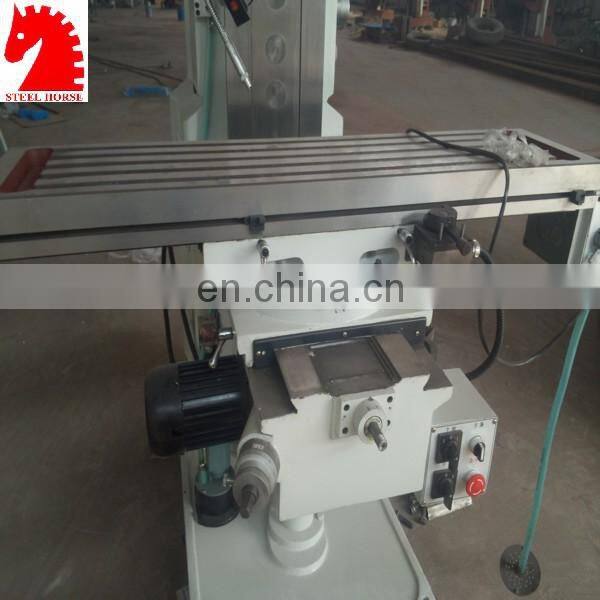

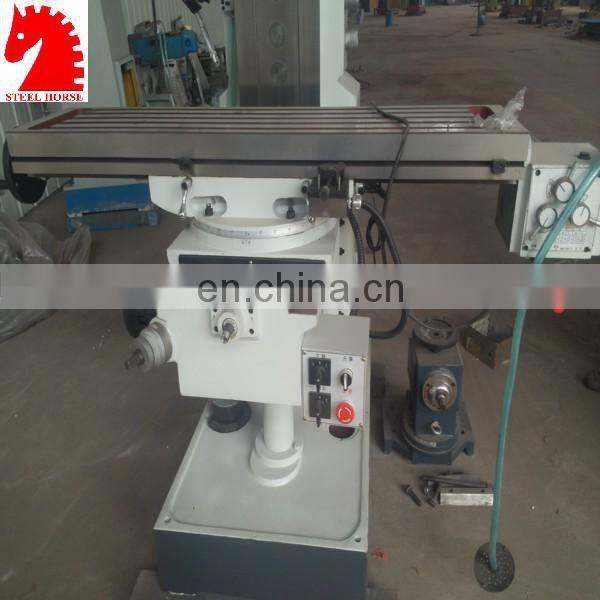

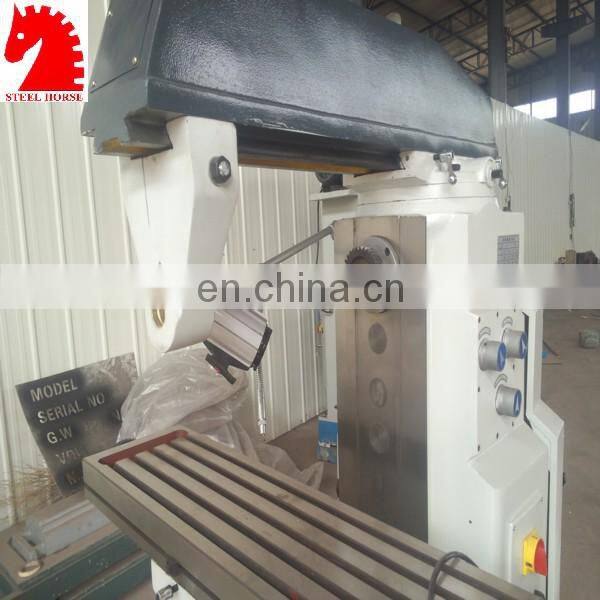

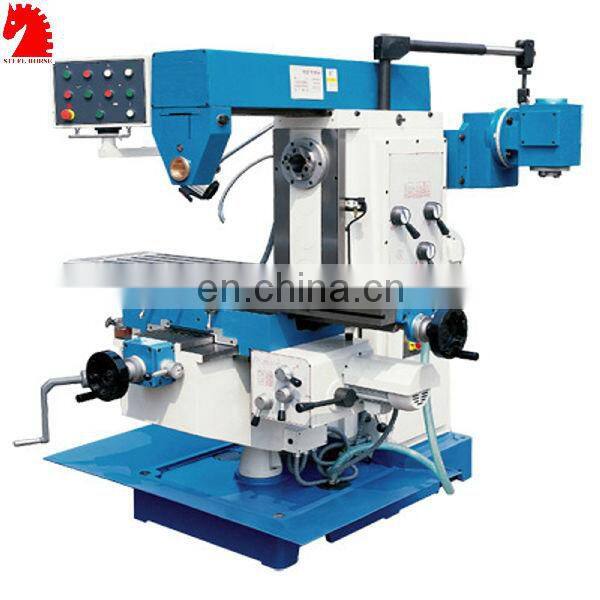

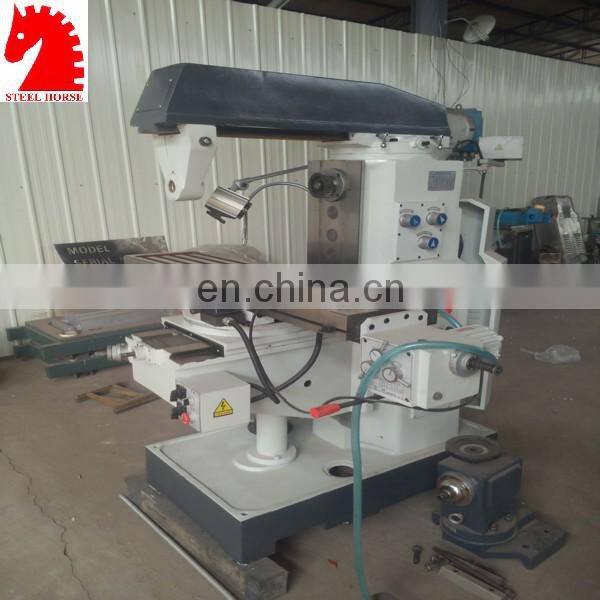

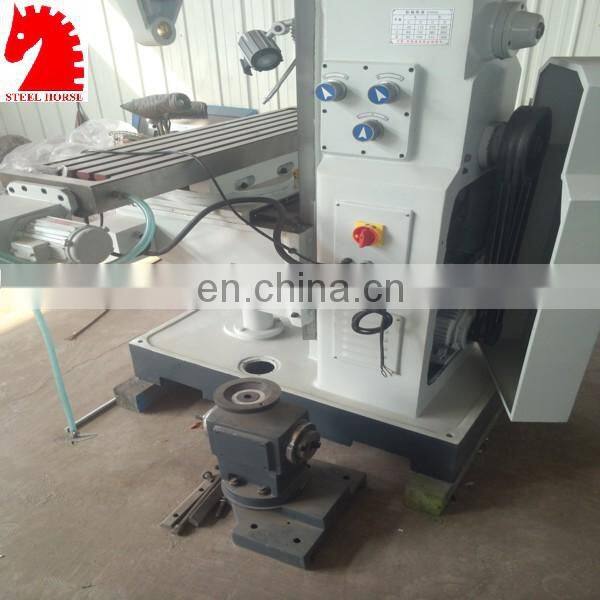

The Stronger quality XQ6132 nantong milling machine
1.A spindle sleeve can manually fine feed,and a stopper,milling head can be clockwise
rotational adjustment of 45 °;
2.table can be vertical,horizontal,and vertical lift manual feed,and vertical and horizontal
mobility while achieving fast forward feed motor and vertical movements to maneuver;
3.using 1200mm extended slide,1500mm extended workbench longitudinal travel of up to
1000mm,stroke length,greater stability;

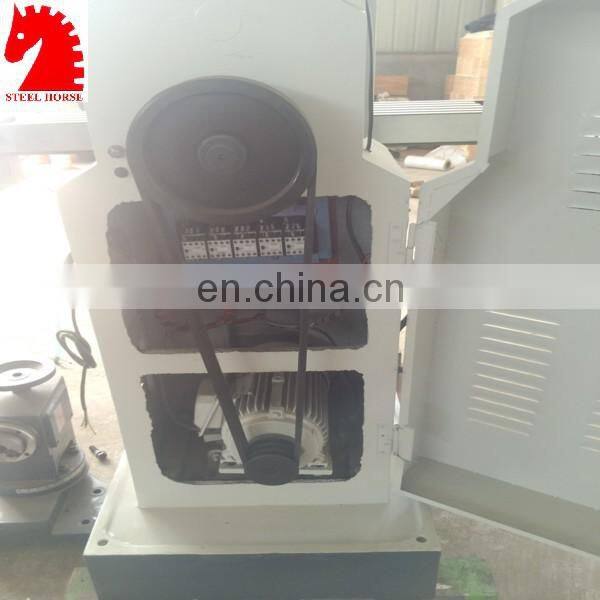

4.main drive and feed gear shifting mechanism are used,12 different speeds,wide speed
range;
5.spindle bearings with tapered roller bearings,bearing capacity,and the use of dynamic
braking,with a brake torque,stop fast,reliable braking;
6.using rectangular guideway good stability;
7.workbench and quenched by super audio track,stronger intensity.
XQ6132A horizontal milling machine
XQ6132B horizontal milling machine
XQ6132-1 Swivel table horizontal milling machine
PECIFICATION | UNIT | XQ6032A | XQ6132A-1 |
TABLE SIZE | MM | 1370×320 | 1370×320 |
SPINDLE TAPER |
| 7:24 ISO50 | 7:24 ISO50 |
SPINDLE SPEED RANGE | R/MIN | 60-1800 | 60-1800 |
TABLE TRAVEL | MM | 700×320×450 | 1000×320×450 |
DISTANCE FROM SPINDLE AXIS TO TABLE SURFACE | MM | 60-500 | 60-500 |
DISTANCE BETWEEN SPINDLE AXIS AND BOOM | MM | 175 | 175 |
MAIN MOTOR | KW | 4 | 4 |
OVERALL DIMENSION(L×W×H) | MM | 1770×1790×1835 | 2220×2600×1880 |
NET WEIGHT | KG | 2350 | 2400 |
Steel Horse machine,is a collection of machine development,testing,production,
sales and integration of joint-stock enterprises.Enterprises with an annual output
of 20,000 sets of various types of machine.Our company was founded in 1990,
in 1995 we shareholding system reform, found "Steel Horse Machine"brand.
With our "Steel Horse Machine" Twenty years in the machinery and equipment
manufacturing industry accumulated abundant capital and the introduction of
foreign advanced technology,in 2007 we spent a lot to create "White Horse CNC"
brand.Enterprise products have been metal processing, automotive,military,
aerospace and other key industries widely used.
Steel Horse machine"quality first,faith forever" as the purpose,we willing to
cooperate sincerely with friends at home and abroad for common development.
