CNC pipe threading lathe machine horizontal drilling machine QK1313
- T/T Credit Card
You May Like
-
Oil Country Pipe Threading CNC Lathe API Thread CNC Lathe in China QK1313
-
cnc lathe for sale pipe threading lathe QK1335
-
cnc pipe threading cnc lathe machine CNC Oil Country Lathe QK1335
-
thread making cutting lathe machine for steel pipes QK1327
-
QK1327 cnc screw lathe pipe threading machine
-
QK1327 cnc pipe thread cutting machine
Product Details
| Brand Name | Crystal | Place of Origin | Shandong, China | |
| Model Number | QK1313 | |||
| Condition | New |
Product Description

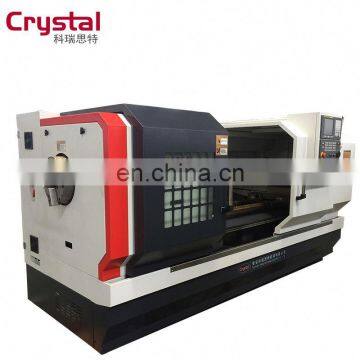

CNC Pipe Threading Lathe QK1313
The CNC pipe threading machine is developed for the oil field pipe thread turning and it is suitable for all types of pipe threads turning. The machine also can be used as general CNC lathes to machining complex shapes,like shaft sleeve, disc-type parts.
Pipe Threading CNC Lathe QK1313 features
| Double chuck | Big spindle |
| Servo main motor | Taiwan ball screw |
| High efficiency | -- |
QK1313 Characters
1. We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle.
2. The spindle bore is very large and set up double chucks both front and back and you can
choose electric chucks as you like.
3. The surface of the slide rail of the bed is treated by the super audio quench, which can be
endurable and wear-resisting.
4. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.
5. There are two types of speed change: Manual and step less.
6. Set up self lubrication system, and easy to maintain.
QK1313 Main specification
| Lathe specifications | Specifications |
Technical specifications | Maximum diameter of lathe bed (mm) | φ610 |
Maximum tactical diameter of sliding plate(mm) | φ350 | |
Maximum work-piece length (mm) | 1000 | |
Main drive | Form | Main motor servo stepless |
Rank of spindle speed | No grade | |
Range of spindle speed(r/min) | 50-850 rpm | |
Terminal structure | C11 | |
Hole diameter of spindle (mm) | Φ140 | |
The maximum diameter of the tube | 135mm | |
Power of main motor (KW) | 11KW(servo) | |
Feeding system | Maximum route of knife rest (mm) | X:310 Z:1150 |
Speed of quick-travel (mm/min) | X:4000 Z:5000 | |
Resetting accuracy | X:0.012 Z:0.016 | |
Precision of work piece | IT6-IT7 | |
Surface roughness | Ra1.6 | |
Tailstock | Sleeve diameter of tailstock (mm) | Φ75 |
Sleeve trip of tailstock (mm) | 150 | |
Cone hole taper tailstock’s sleeve | MT5 | |
Knife rest | Standard configuration | Four-station vertical electrical knife rest |
Alternative configuration | Horizontal Six-station electrical knife rest | |
Resetting accuracy (mm) | 0.01 | |
Length of section of knife handle (mm) | 30×30 | |
Machine size weight | Length*width*height | 2650×1450×1710 |
Net weight (Kg) | 3000Kg |
QK1313 Standard configuration
| CNC System:GSK-980TDc | 3 jaw manual double chuck |
| 4 station tool | Manual tailstock |
Lighting system | Cooling system |
Automatic lubrication system | 3 phase 380v 50Hz |
QK1313 Optional configuration
Siemens system /Fanuc system |
Hydraulic chuck/ pneumatic chuck |
6-piece electric tool post/8- piece electric tool post |
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A: We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A:Yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A:We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on , or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:About your cnc machining center, I want to know if they can install the 4th axis.
A:Our cnc machining center can support the 4th axis. You can tell us the working
table size or the travel of X,Y,Z axis of machining center you need. We will give
you a recommendation about machine model.
