Milling Machine CNC Large Metal Processing Machining Center VMC550L
- 25 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
5 axis CNC Milling Machine/CNC Vertical Machine for Sale VMC7032
-
Heavy Duty Milling Machine CNC Vertical Machining Center for Sale VMC850L
-
VMC7032 dividing head cnc milling machine with 4 axis
-
Universal CNC Vertical Milling Machine/3 axis Machining Center VMC850L
-
Chinese CNC Machining Center Mini Milling Machine for Sale VMC420L
-
Educational Small Machining Center Mini Milling Machine CNC VMC330L
Product Details
Brand Name | Crystal | Place of Origin | Shandong, China | |
Type | Vertical | Certification | CE | |
After-sales Service Provided | No overseas service provided | Warranty | 1 year | |
Weight | 1960KG | Dimension(L*W*H) | 1600*1860*2100mm | |
Voltage | 380V | Condition | New | |
Power(W) | 2.2KW |
Product Description

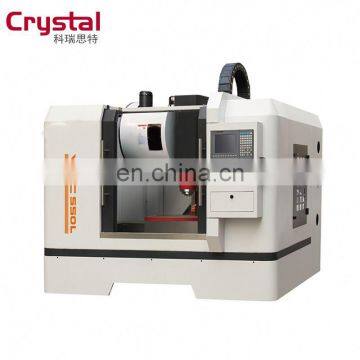

Milling Machine CNC Large Metal Processing Machining Center VMC550L
This VMC is suitable for the mechanical processing and mold making.
And it can adapt to the processing requirement from rough machining to finish machining.
It can also finish many working procedures like milling, drilling, tapping, boring etc
Spindle | Motor power | 2.2/3.7kw(servo) | |
Distance between the spindle end and the work surface | 100 -470 mm | ||
Spindle center to column guide rail | 380 mm | ||
Speed | 8000/10000 rpm | ||
Taper of spindle | BT30 | ||
Work bench | Area of work bench | 320×800mm | |
Load capacity | 300 kg | ||
Working mesa from the ground | 880 mm | ||
T slot number/width/gap
| 3/14/100 | ||
Distance of travel
| X-Axis | 500 mm | |
Y-Axis | 320 mm | ||
Z-Axis | 370 mm | ||
Feed | X-axis fast moving | 10 m | |
Y-axis fast moving | 10 m | ||
Z-axis fast moving | 8 m | ||
fast cutting speed mm /min | 1-5000 mm/min | ||
Precision | Positional accuracy | 0.022 mm | |
Repeat positional accuracy mm | 0.012 mm | ||
Tools | Max,diameter | 120 mm | |
Max,length | 200 mm | ||
Tool magazine capacity | 16 | ||
Qty time of tool changing S | 6 s | ||
Power Supply | Voltage(V)/frequency (Hz) | 380/50 | |
Total capacity(KVA) | 10 | ||
Weight | 1960 kg | ||
Dimension | 1600×1860×2100 mm |
Feature:
High strength resin sand casting
3-axis Taiwan rail
Taiwan high speed spindle unit 8000rpm
Separate hand wheel
Umbrella Style Tool Magazine :16
Pneumatic broach system
Full guard
Adjustment of shim and screw
Automatic intermittent lubrication
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A: We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A:Yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A:We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on , or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:About your cnc machining center, I want to know if they can install the 4th axis.
A:Our cnc machining center can support the 4th axis. You can tell us the working
table size or the travel of X,Y,Z axis of machining center you need. We will give
you a recommendation about machine model.
