Types of mould frame semi auto sand jolt squeeze casting machine

Metal Molding Machine Feature

1. The sand casting moulding machine using the fuselage box structure basket to improve the body of the steel.

2. It adopt microseism squeeze molding technics used to significantly increase the pressure and the strength to make up hardness sand box more than one level to increase surface roughness, make the quality of the other products stable.

3. It is easy to operate, visual sand, the operational procedures can be human and effective to increase productivity.

4. It is convenient installing and regulating for the casting moulding machine.



Main Specification And Technical Parameters

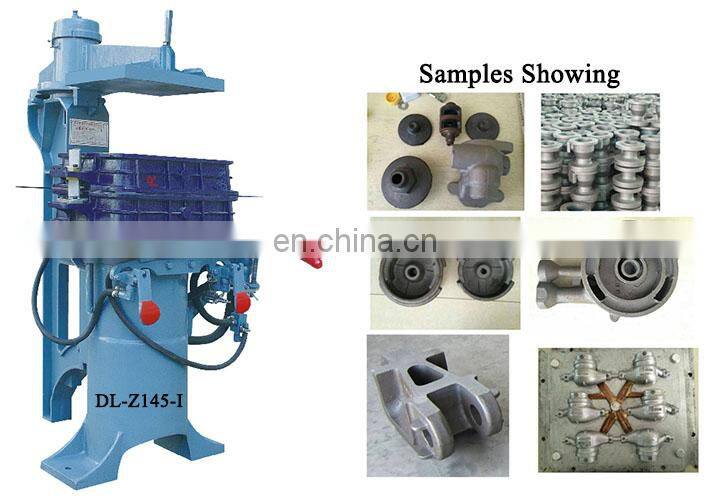

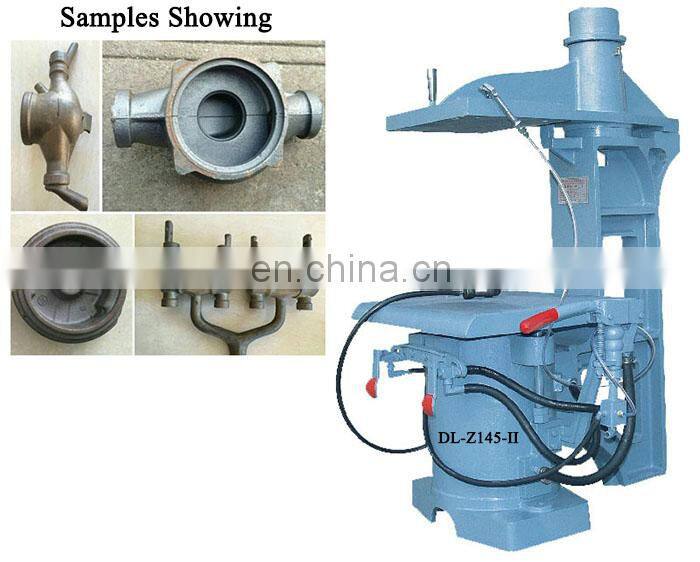

Type	DL-Z145-I	DL-Z145-II

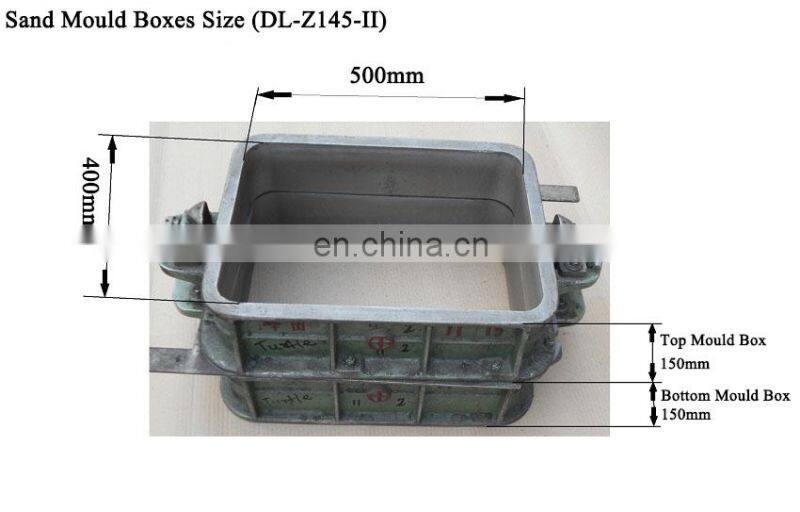

The Biggest Size Of Sand Mold	300*400*150/100 mm	400*500*(150*2)mm
Jotting Power ( N )	380 force	1000force
Compaction Power ( N )	3000 force	4500force
Compaction Stroke	110 mm	110mm
Pressure of Air-compressed ( Mpa )	5.6 force	5.6 force
The largest Area Of core Boxes ( 0.25Mpa )	2700 cm2	2700 cm2
The largest Area Of core Boxes ( 0.5Mpa )	600 cm2	600 cm2
The Needed Air Of One Box	0.13 m3	0.13 m3
Net Weight Of Sand Moulding Machine	280kg	685kg
Size Of Appearance Of Sand Moulding Machine	850 * 700 * 1380 mm	1080*900*1530mm
Warranty	1 years	1 years

 * some parameters can be customised by client's requirement.



Manual Sand Molding Machine



Automatic Metal Molding Machine

>>" target="_blank">

Ferrous and non-ferrous metal foundry production series

>>" >We have the whole foundry produciton line machinery,which widely used to making and processing plumbing, sanitaryware, car spares, vaives, iron cast lines and so on.>>" >
Main equipments : automatic SPM machining equipment , such as horizontal CNC drilling / milling / tapping machine ; Double head drilling and tapping machine, automatic sand moulding machine, low-pressure die casting machine, gravity casting machine, furnace, core shooting machine, mixing sand machine, shot blasting machine (abrator),polishing machine etc.

>>" target="_blank">

Nan'an Delin Machinery Manufacturing Co., Ltd.

1. We are one manufacturer of metal foundry machinery and machining machinery.

2. We are production automatic molding machine, die casting machine, compound CNC polishing machine , SPM machine(compound CNC milling machine), furnace, core shooting machine, mixing sand machine and so on.

3. Our machines are extensively used in producing and machining plumbing fittings, sanitary ware, car spare part, valve for brass, aluminium, zinc and iron cast line etc.

4. We have professional technical support and after sale service. With a complete line machines, good quality, reasonable prices and stylish designs.

Customer Visit

Home And Abraod Exhibition

Certificate Of Machine

1. Before payment

a. Free contact for the most suitable machine.

b. Free professional design for each customer especially.

c. Welcome to visit our factory.

2. After-Sales Service

We will send engineers / technicians to make commissioning at buyer’s factory, train the machine works well, and also supply the technical support for free and spare parts at good price always.

3. Guarantee Period

One year. During the guarantee period, the seller guarantee to solve all problems may occur due to machine's quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the technician to buyer's factory on seller's account if problem is serious and can't be solved by Buyer.

4. Payment Terms

30% as deposit, 70% after the machine is ready before delivery.

5. Lead Time

Our delivery time generally it is 30-40 days if the machines are in stock, or it is 70-90 days if the machines are not in stock, it is according to quantity.

1. Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2. Shipping: Container transport.

Q1: Can i have your quotation?

     A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.

Q 2: How to operate and maintain the machine?

     A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.

Q 3: Where is your factory located ? How can I visit it ?
     A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.

Q 4 :What’s dimension of your workpiece ?

      A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.

Q 5: Can you guarantee you quality?

     A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory ,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
