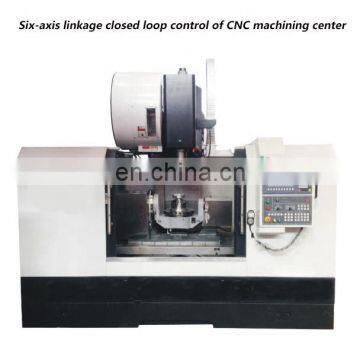

Six-axis linkage closed loop control of CNC machining center
- CHINA MAIN PORT
- T/T Credit Card
You May Like
Product Details
| Brand Name | Greatwall | Place of Origin | Beijing, China | |
| Type | Vertical | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
1, the machine A, C axis adopts Germany peiseler company direct drive double rotary table, with imported Parker torque motor drive, has the advantages of stable running, no noise, high servo performance, high stiffness, high speed and high precision.
2, can meet the requirements of high speed and high precision six axis within any complex surface machining.
3, through the installation of the adapter plate in the tool spindle, the surface processing arc gear milling method for spiral bevel and hypoid gear, also can use the surface rolling processing Olin tooth Kang Cycloid Bevel gears.
4, according to the need of control software for machining spiral bevel gear NC system can be embedded on independent development, flexible control parameters.
5, according to the need of optional and customize different specifications of the turntable and the machine configuration.
----Technical parameters-----
TYPE | TDNC-VMC6T410 | |
ITEMS | UNIT | PARAMETERS |
Dia.of table | mm | Φ410 |
Spindle speed | rpm | 6000 |
X-axis travel | mm | 1100 |
Y-axis travel | mm | 650 |
Z-axis travel | mm | 700 |
A-axis swivel angle | ° | ±100° |
C-axis swivel angle | ° | 360 |
Min. segmentation unit | ° | 0.001 |
Distance of the table face to A-axis | mm | 50-750 |
T-solt |
| 7 x 14mm |
The rotating shaft clamping torque | kgf.m | 1000(60bar) |
Inclined shaft clamping torque | kgf.m | 3000 (120bar) |
Distance from spindle center to column guideway | mm | 700 |
Tool type |
| BT50 |
XYZ-axis ball screw specifications |
| 4010 |
Spindle power | Kw | 12 |
XYZ 3-axis servo motor power | Kw | 2.5 |
AC 3-axis servo motor power | Kw | 5.67/2.44 |
Cutting speed (X Y Z) | mm/min | 0-10000 |
Rapid traverse (X Y Z) | mm/min | 20000 |
Position accuracy | mm | 0.008 |
Repeat position accuracy | mm | 0.005 |
Position accuracy of rotary table | '' | ±2.5" |
Repeat Position accuracy of rotary table | '' | ±1" |
Pressure need | KG/cm² | 6 |
XYZ axis motor connect type |
| direct drive |
ACaxis motor connect type |
| Torque motor direct drive |
X-axis guide way type |
| Slide |
Y-axis guide way type |
| Slide |
Z-axis guide way type |
| Slide |
Max transport load | kg | 300/300 |
Diemission of the squre | mm | 3150×2460×2500 |
Machine weight | T | 8.8 |
