Home > Products > Vertical Machining Center > VMC600L Cnc Metal Milling Machine Tool 5 Axis
VMC600L Cnc Metal Milling Machine Tool 5 Axis
- Qingdao for VMC600L Cnc Metal Milling Machine Tool 5 Axis
- T/T Credit Card
You May Like
Product Details
| Brand Name | HANKUI | Place of Origin | Shandong, China | |
| Type | Vertical | Certification | ISO CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 Months | |
| Weight | 2600 kg | Dimension(L*W*H) | 2200*2100*2200 mm | |
| Voltage | Customer's Requirement | Condition | New | |
| Power(W) | 5.5 kw |
Product Description

VMC600L siemens cnc 808 wholesale drilling and milling machine center
What is the Details of our Vertical Machining Center?

Item | unit | VMC600L |
Table size | mm | 800×360 |
Load capacity | kg | 350 |
T slot |
| 3-14×115 |
X-axis travel | mm | 600 |
Y-axis travel | mm | 400 |
Z-axis travel | mm | 500 |
Distance from Spindle center to table | mm | 100-600 |
Distance from Spindle center to column slide way | mm | 430 |
Tool shank |
| BT40 |
Spindle speed | rpm | 10000 |
Spindle motor power | kw | 5.5 |
Max. diameter of tool | mm | Ø120×200 |
Max. length of tool | mm | 350 |
Max. weight of tool | kg | 8 |
X/Y -axis rapid moving speed | mm | 30000 |
Z-axis rapid moving speed | mm | 30000 |
Feed rate | mm/min | 2.5~3000 |
Positioning accuracy | mm | 0.015 |
Repeated positioning accuracy | mm | 0.0075 |
Out dimension | mm | 2200×2100×2200 |
Machine weight | Kg | 2600 |

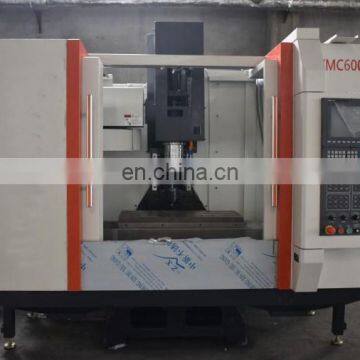

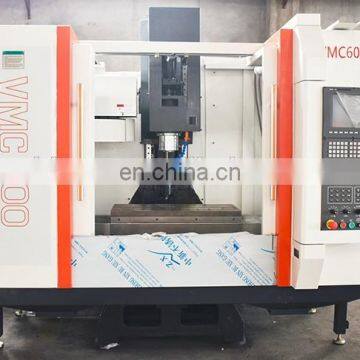

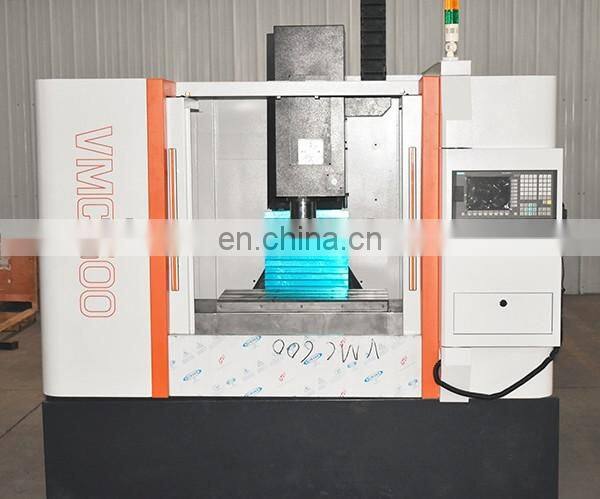

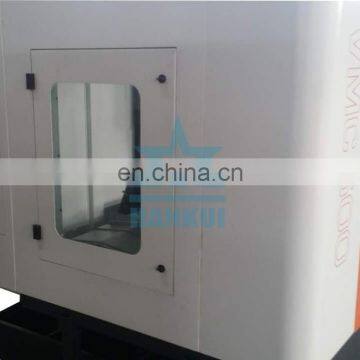

Product Pictures

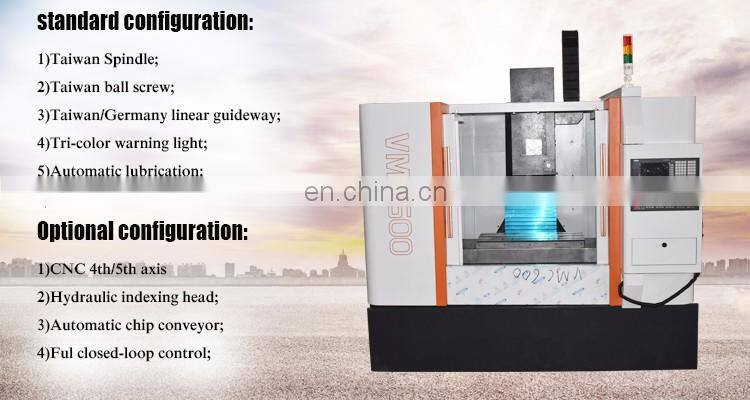

PRODUCT FEATURES
standard configuration |
| Taiwan Spindle |
| Taiwan ball screw |
| Taiwan/Germany linear guideway |
| Tri-colour warning light |
| Automatic lubrication |
| Full enclosed cover |
| Optional configuration |
| CNC 4th/5th axis |
| Hydraulic indexing head |
| Automatic chip conveyor |
| Ful closed-loop control |

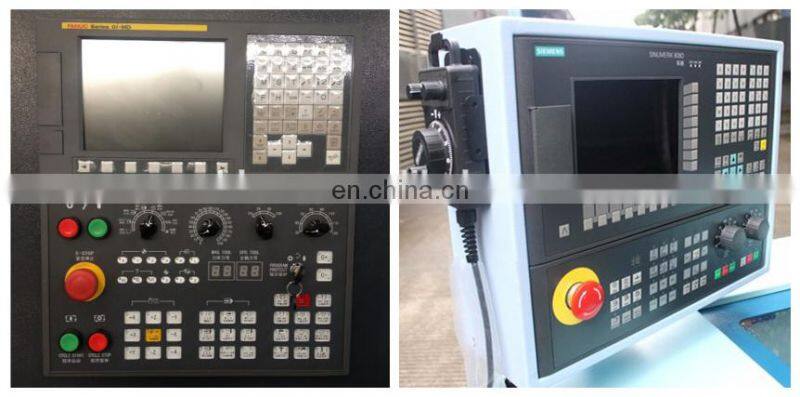

| CNC Controller |
| SIEMENS |
| FANUC |
| KND |
| GSK |
| Mitsubishi |
| SYNTEC |

PACKING AND SHIPPING
| Packaging Detail: | High quality wooden case or According to the customer's requirements. |
| Delivery Detail: | Within 35 working days after receiving your deposit. |
| According to the customer's requirements. | |

FACTORY SHOW
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in orderto keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
