hobby cnc milling machine VMC350L
- 200 Set / Sets per Month
- qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | HANKUI | Place of Origin | Shandong, China | |
| Type | Vertical | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 13 Months | |
| Weight | 1500 kg | Dimension(L*W*H) | 1520*1300*1800mm | |
| Voltage | Customized | Condition | New | |
| Power(W) | 2.2kw |
Product Description

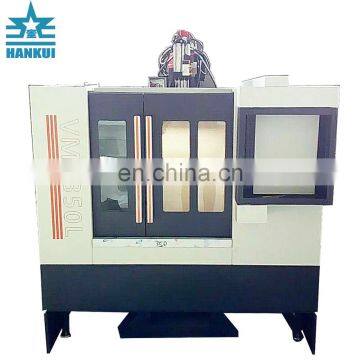

hobby cnc milling machine VMC350L
The technical parameter of VMC350L:
ITEM | UNIT | VMC350L | VMC460L | VMC600L |
Table size | mm | 690*230 | 800*300 | 800*360 |
Load capacity | kg | 150 | 200 | 350 |
T slot |
| 3-16-63 | 3-14*80 | 3-14*115 |
X-axis travel | mm | 350 | 460 | 600 |
Y-axis travel | mm | 260 | 320 | 400 |
Z-axis travel | mm | 350 | 460 | 500 |
Distance from Spindle center to table | mm | 90-440 | 90-550 | 100-600 |
Distance from Spindle center to column slide way | mm | 294 | 395 | 430 |
Tool shank |
| BT30 | BT30/BT40 | BT40 |
Spindle speed | rpm | 10000 | 10000 | 10000 |
Spindle motor power | kw | 2.2 | 3.7 | 5.5 |
Max. diameter of tool | mm | 30/80 | φ80/120 | 120*200 |
Max. length of tool | mm | 120 | 200 | 350 |
Max. weight of tool | kg | 3 | 6 | 8 |
X/Y -axis rapid moving speed | mm | 10000 | 10000 | 10000 |
Z-axis rapid moving speed | mm | 10000 | 10000 | 10000 |
feed rate | mm/min | 1-4000 | 1-4000 | 1-4000 |
positioning accuracy | mm | 0.02 | ±0.012 | 0.01 |
repeated positioning accuracy | mm | 0.01/300 | ±0.007 | 0.007 |
Out dimension | mm | 1520*1300*1800 | 1850*1800*1900 | 2200*2100*2200 |
Machine weight | Kg | 1500 | 2500 | 3500 |
The main feature:
The test:
