H100 cnc lathe machine price list
- 10 Set / Sets per Month
- Qingdao port
- T/T Credit Card
You May Like
-
H63/3 taiwan machinery , wood cnc milling machine
-
H63 used cnc machine milling dividing head
-
VMC600L bench top CNC cutting vertical mill machining center
-
China Benchtop best 4 axis CNC vertical vmc milling machine center VMC450L
-
VMC Machine Sale CNC Milling Machine Price and Specification VMC600L
-
VMC550L China supplier 4 axis cnc milling machine center
Product Details
| Brand Name | HANKUI | Place of Origin | Shandong, China | |
| Model Number | H100 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
H100 cnc lathe machine price list
Applications
1. High rigidity machine body
2. Casting body adopts integrated box design and dual ribbed arm structure, to provide the best support and dynamic stability. Stable and reliable motion design.
3.The machine tool features high rigidity, symmetry structure, dynamic respond quickly, high accuracy, superior stability, which covers the processing of milling, drilling, boring, reaming and tapping, etc.
4. The machine tool widely applied to ordinary machinery, energy, aerospace, auto parts, locomotive, electronics, printing and textile industries.

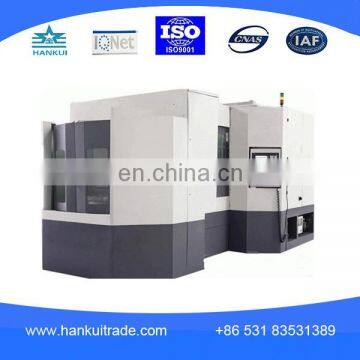

Machine pictures
Parameters
Item | H100 | ||
indexing table | |||
worktable | Worktable size | 1000mmX1000mm | |
Worktable quantity | 1 | ||
Indexing unit | 1°X360 | ||
Max. load | 2000kg | ||
Max. workpiece swing dia. | 2000mm | ||
Travel | Reverse T type constructure | X axis travel | 2200mm |
Y axis Headstock travel | 1300mm | ||
Z axis column travel | 1200mm | ||
Spindle BT50 | speed | 6000rpm | |
Spindle center line to table surface | 120~1450mm | ||
Distance between spindle nose to table center | 300~1500mm | ||
Rapid speed | X, Y, Z axis | 36m/min | |
B axis | 10r/min | ||
Positioning accuracy | X, Y, Z axis | 0.01 | |
B axis | 12″ | ||
Re-positioning accuracy | X, Y, Z axis | 0.008 | |
B axis | 6″ | ||
Controller FANUC(standard), SIEMENS Mitsubishi KND(optional) | X axis servo motor | 30N.m | |
Y axis servo motor | 30N.m | ||
Z axis servo motor | 30N.m | ||
B axis servo motor | 12N.m | ||
APC servo motor |
| ||
Dimension |
| 4325X3880X4000 | |
G.W |
| 20000kg | |
H100 cnc lathe machine packing
1. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.
2. The main products are horizontal / vertical/ gantry machining center, horizontal CNC tuning lathe, CNC vertical turning lathe etc.
3. We have passed the ISO9001:2008 international quality management system authentication.
1. MOQ
1 set
2. Delivery Time
Some of the products are in stock and others need about 2 month or more .
3. Warranty
13 month after the B/L date.
4. Training and maintenance
After the contact signed, you can send someone to our company for professional operation traning.
Why choose us?
1. faithful: Honest is the key to communication.
2. High quality : 20 years rich experienced assembly skills,
Main parts imported from Japan, Germany, Taiwan etc.
3. Service: Customer first
4. Timely : Reply your inquiry within 8 hours
Delivery machines within agreement time.
5. Price: win-win price.
Welcome to inquiry !
