18 Inch River Sand Cutter Suction Dredger

Overview

This ship suit shadowing sea (waves less)and follow water area operation requirements that is Non-self-propelled dredger assembled the whole steel welded.

Main Principle:first through Bridge hydraulic cutter underwater excavation of soil was excavated sediment rotating reamer driven with water to form a fluid medium containing certain ores, located in the hydrodynamic cutter circle at the mouth of the mud pump suction , into the pump and get some energy out through the pipeline.

Operating environment qualification

1. Sand Dredging

2. Land Reclamation/Beach Restoration

3. Mineral Mining(such as gold mining,iron mining,tin mining etc.)

4. Port,Lake,River,Harbor,Channel and Dam Desilting

5. Well Head and Location Sweeping

6. Canalization

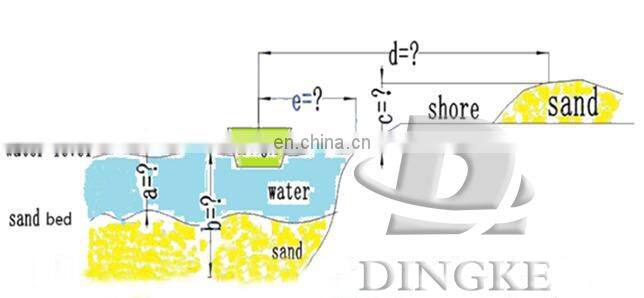

Sketch Drawing

1) Dredging Depth(a):____m

2) Dredging Distance(d):_____m

3) Capacity:____m3/h

Sand pump

Name: 16/14g-g

Brand: SJZGY

Original: China

Heavy duty, horizontal slurry pump. Hiigh efficiency transfer of abraisive and high density slurries with extended wear life and reliable service intervals.

Gearbox

Name: 3FL620type
Brand: HCQJ
Ritio: 1:1

Output form: One in, three output

Diesel Engine

Name: KTA-38
Brand: CUMMINS
Original: America
Power: 895KW
Speed: 1800r/min

Cutter

Name: Dredging cutter
Brand: DINGKE
Original: China

Cutter diameter: 1550mm
Shaft Power: 150KW
Max Speed: 33r/min

For more information, please feel free to contact me.

Our professional team will try our best to give you the best skuggestion.
