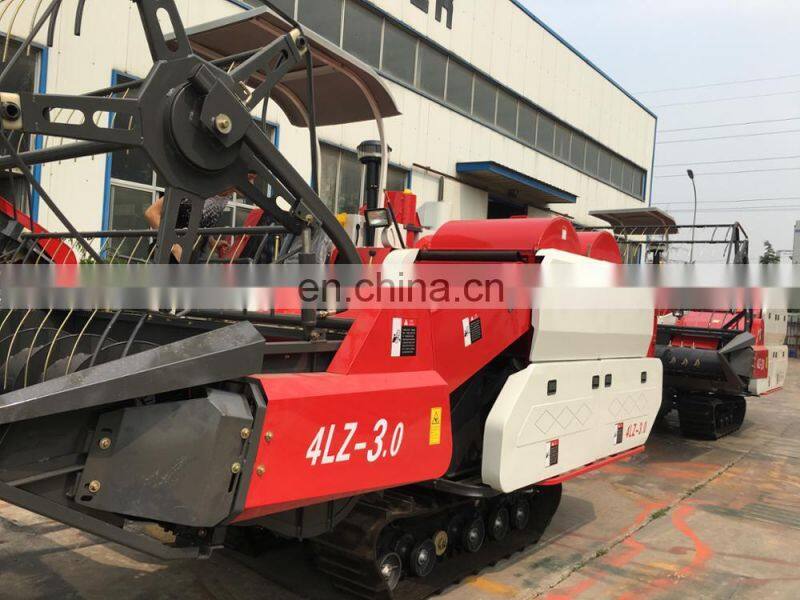

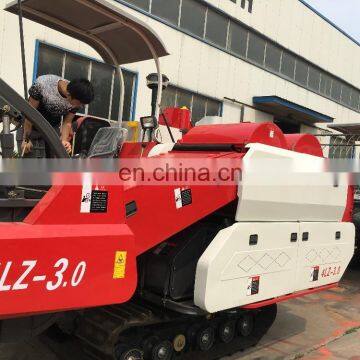

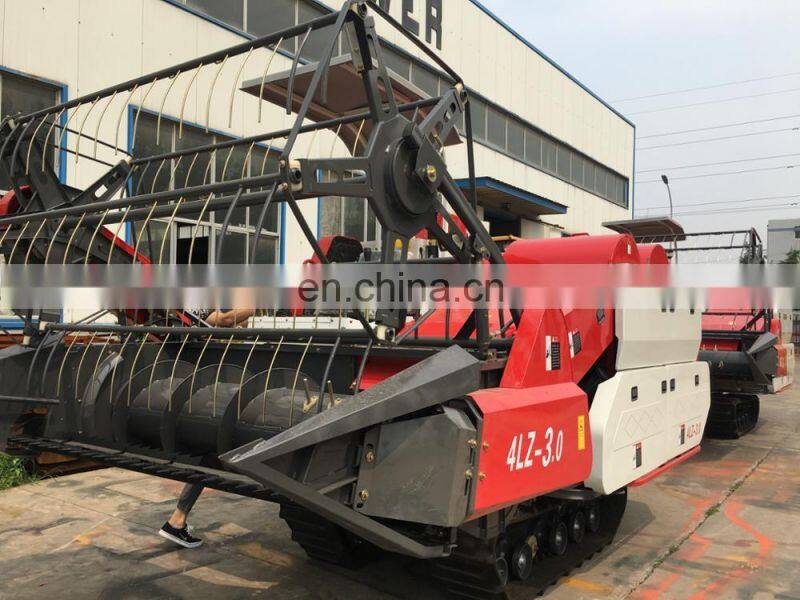

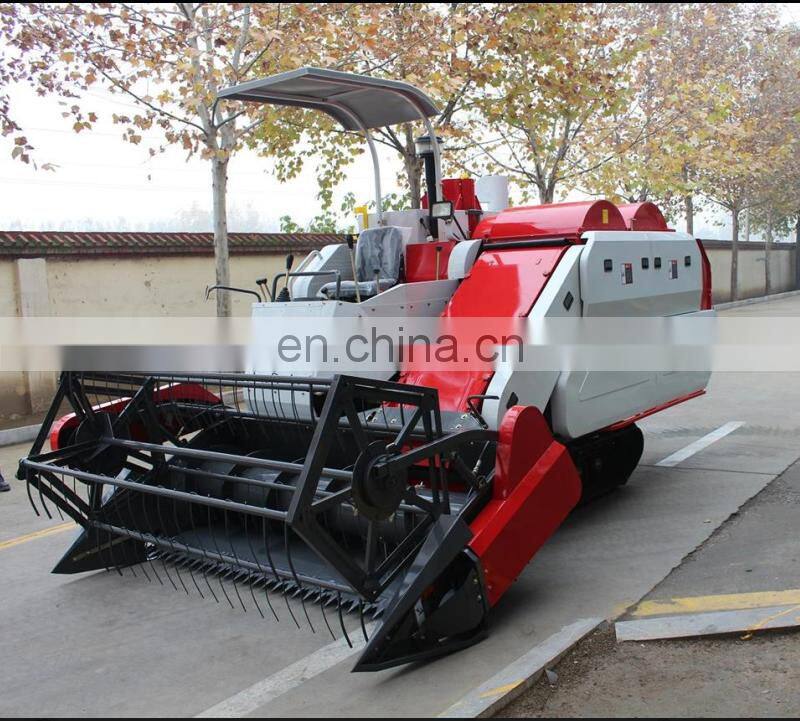

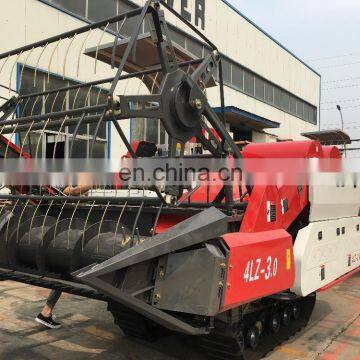

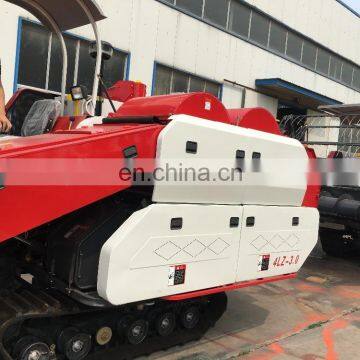

4LZ-3.0 Small Mini Combine Harvester Price

FOB Price

US$ 10,000 - 13,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MAP	Place of Origin	Shandong, China
Model Number	4LZ-3.0	Type	Combine Harvester
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 year after arrived the destination port
Weight	2650KG	Dimension(LWH)	5240x2690x2675MM
Certificate	EEC	Application	farm
Usage	Grain Harvester	Drive Type	Gear Drive
Condition	New

4LZ-3.0small mini combine harvester price

Advantages:

Compact structure, excellent performance, Low ground pressure, high performance in wet or mud land
High threshing ability, low broken rate. Low lost rate
Thorough clearance with double shakers for re-threshing

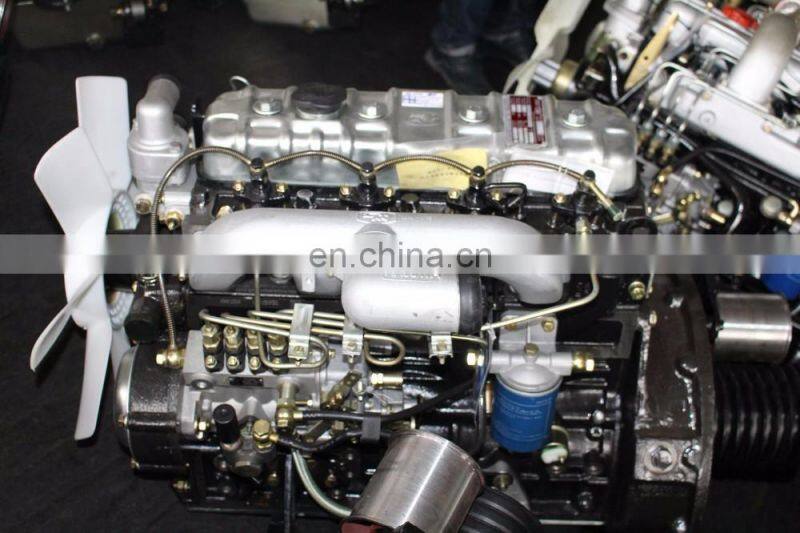

Famous brand engine with large power and stable performanc

Product Description

Combine Harvester--- Main Specifications


Type			Track self-propelled harvester
Model			4LZ-2.5
Havesting Width		mm	2000
Feed		kg/s	2.0
Diese Engine	Model	kw	52
	Power	HP	71
	Rotate Speed	R/min	2800
Average oil consumption per hectare		kg/ha	20-23
working productivity		ha/h	0.2-0.47
weight	big tank/0.7m3	kg	2510 (small rice tank),2590(big rice tank)
Dimension LxWxH(mm)		mm	5245x2690x2675

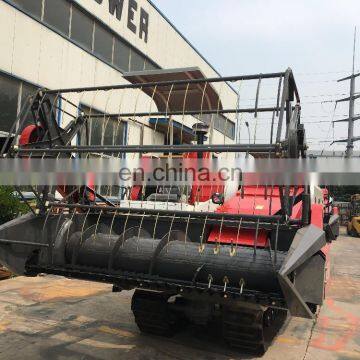

Header	Reel type		eccentic, spring toothed
	Reel Diameter	mm	φ1000
	No.of bars		5
	Auger type		Spiral toothed
	Auger Diameter	mm	φ480
	Clearance between Auger fingers and bottom platform	mm	11-15(adjustable)
	Cutter knife travel	mm	76.2
Conveyer	Type		rake toothed band (rake toothed chain)
Conveyer	linear speed of rake teeth movement	m/s	5
Roller	Type		axial flow,rasp-bar
	Diameter	mm	φ550(adjustable)
	Length	mm	1332
	Speed of rotation	R/min	912
Concave	type		grid
	angle		238
	clerance between concave and rasp-bar	mm	7~19
Sieves	Type		Double sieves+blower+re-thresher
	top sieve/area	m2	0.81
	bottom sieve/area	m2	0.92
	tail sieve area	m2	0.22
Fan	Type		centrifugal,volute
Fan	Diameter	mm	φ360
Vertical auger	Diameter	mm	φ125
Horizontal auger	Diameter	mm	φ125
Grain Tank		m3	0.3
Chassis	Type		Rubber track
	Track	mm	3509046
	Gear box		HST with gearbox
	Drving speed	m/s(km/h)	0.476(1.71)~2.635(9.49)
Re-thresher	Type		plank toothed
Re-thresher	Rotor diameter/lentgth	mm	180/1475
Unloading			Sacked & Auto unloading
