35HP 4WD Farm Tractor 354 with EC Eertificate

FOB Price

USD $7,900 - $8,500 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Map Power	Place of Origin	Shandong, China
Model Number	354	Type	Wheel Tractor
After-sales Service Provided	Overseas service center available	Certificate	EEC
Usage	Farm Tractor	Drive Type	Gear Drive
Condition	New	Power(W)	35
By wheel	4WD

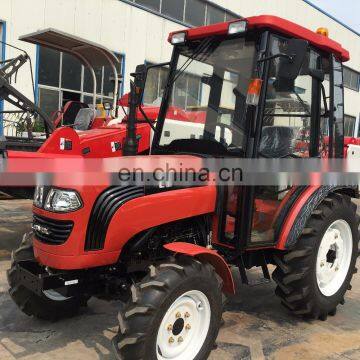

35HP 4WD Farm Tractor 354 with EC Eertificate

1.4L22 4 cylinders diesel engine, with EC Certificate

2.With Rops and Sunshade

3.8F+8R shuttle shift

4.2 ways hydraulic output

5.Inner air filter

6.Flat floor

Specification

Model			Map354
Type			4WD Wheeled Type
(mm)Dimensions of Tractor	Length (to front ballast)		3030
	Width		1470
	Height (to the exhaust vent)		1900
	Tread	Front Wheel	1215 Fixed or 1150~1215 Adjusted

		Rear Wheel	1300 Fixed or 1300~1350 Adjusted

	Axle Base		1710
	Min.Ground Clearance		347.5

Structure weight (kg)			1150
Ballast weight (kg)	Front ballast		56

Rated traction force (kg)			683
Engine	Model		4122BT
	Type		Vertical,4-Cylinder,Water Cooled and 4-stroke
	Rated Power(kw)		26

	Rated speed (r/min)		2400

	Fuel		Diesel
Tyre	Front Wheel		6.00-14
	Rear Wheel		9.5-24
Clutch			Dual-stage clutch
Steering			power steering
Transmission Type			8+8 with shuttle gearshift
Suspension Type			3-point links

PTO	Type and Rev		Semi-independent Type 540/1000

	Spline Size		F35 Rectangle Spline with 6 teeth
