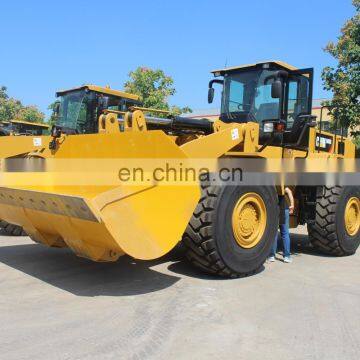

Construction Machinery Earth-moving Machinery 5ton 950G wheel loader

Specification

950G

Rated capacity

3m³

Rated   weight

5000Kg

Operating weight

16000Kg

Performance of bucket being set level

Yes

Static tilting load at full steering position

98KN

Max. breakout force

172.6KN

Max. drawbar pull

151.9KN

Max. grade ability

30°

Total of three time:lifting,dumping, lowering

11.3s

Max.dump height

3098mm

Max.dump reach

1198mm

Min. ground clearance

450mm

Wheel base

3200mm

Overall dimensions(length*width*height)

7836*3010*3300mm

Engine

STEYR

Model

WD10G220E22

Pattern

Inline, water cooled, direct. inject, four strokes

Cylinder-bore*stroke

6-126*130

Max.torsion

779Nm

Rated power

162KW

Min.fuel consuming rate

214g/kw.h

Specified rotational speed

2200r/min

Model of torque device

YJ375

Pattern

3-element,single stage

Number of great shift

4 forward,4 revers

Max. travel speed

38km/h

Main reducer type

Spiral bevel gear, moderation of first stage

Pattern of wheel side moderation

Single stage planetary

Type size

23.5-25

Front type pressure

392KPa

Rear type pressure

343KPa

Pattern

Articulated and hydraulic steering, load sensing meets

Steering angle(each direction)

35°C±1

Min. turning radius(outside of bucket)

7268mm

Valve distributing working

DF32·2C

Working pumps

CBG3100

Brake system

Air assisted oil type four wheel brake

Parking  brake

Air cutting control inner expand hoof

Fuel capacity

320L

Pressure of working hydraulic system

160kfg/cm2
