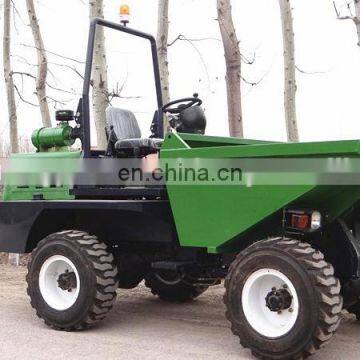

3.0ton hydraulic concrete dumper with CE
- Qingdao
- T/T Credit Card
You May Like
-
Manufacturer supply Cheap 7 ton scrap rebar straightening machine
-
high quality 4-wheel Chinese Hydraulic Concrete 10Ton Mini Dumper for sale
-
high quality 4-wheel 10ton Self loader Mini Wheel Dumper 10Ton
-
mini track dumper 4x4wd with self-loading
-
MD20 mini Site truck with dumping bucket
-
2.0 ton 4wd diesel hydraulic mini dumper
Product Details
Place of Origin | Shandong, China | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
3.0ton hydraulic concrete dumper with CE
Loading weight:3000kgs
Bucket capacity:1.5m3
Engine:Deutz engine optional
This dumper,we can use the manual transmission or the hydraulic convertor.
Dumpers brief introduction of the 3.0ton hydraulic concrete dumper :
As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on.
Main Features of WEIFANG Map Power :
1. more than 10 years production experience
2. own a super technical team, can finish some adjustment to adapt the using environment and the market
3. production capacity: 300 units/month
4. our site dumper are exported to many developed countries, and satisfied the customers
Specification
Model | FCY30 |
Performance | |
Rated Loading Weight | 3000KG |
Bucket capacity | 1.50m3 |
Wheel base | 1360mm |
Thread | 1960mm |
Mini turning radicus | 4000mm |
Greadability | 21 |
Overall dimensions | 3650x1800x2550mm(L*W*H) |
Engine | |
Engine modelS | 490 |
Engine type | 4cylinders |
Cooler type | Water cooler |
Rated power | 38KW/1500-2500RPM |
Walking speed | |
Forward gear 1 | 6.5km/h |
Forward gear II | 11km/h |
Forward gear III | 24km/h |
Backward gear | 4.5km/h |
Tire size | 12-16.5 |
Shipment | |
Shipment | 3Units in 40ft container |
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
Company Contact Information
Contact :Tony
| Company Name: | Weifang Map Import & Export Co., Ltd. |
| Operational Address: | Room 1-2-2007, No. 8580, Dongfeng East Street, Kuiwen Dist., Weifang, Shandong, China |
| Telephone: | 0086-536-8502890 |
| Website: | |
| Website on : | |
| Store: | /store/904969 |
Packing:Nude packing
Shipping:1set in 20GP,2sets in 40HQ
