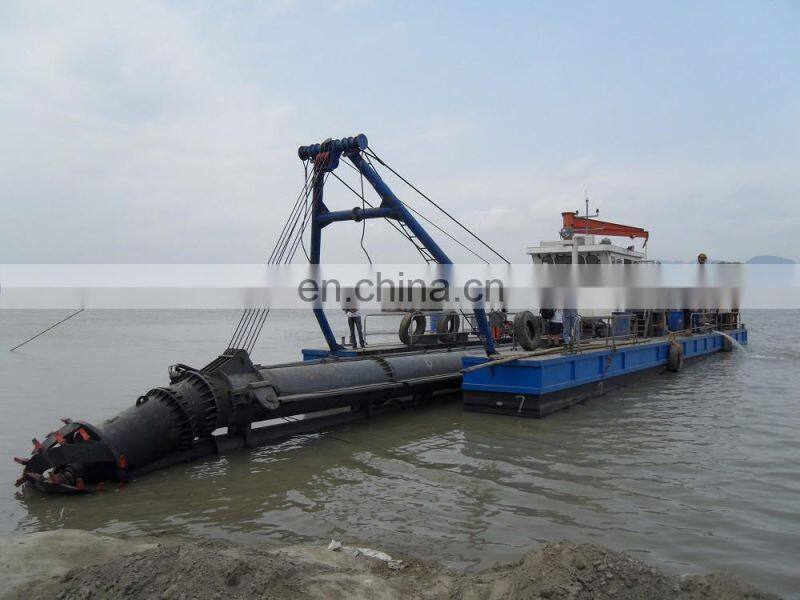

HID-4518P Dredging Ship Dredger With Marine Engine
US$ 560,000 - 600,000
/ Set
1 Set(Min. Order)
- Tianjin Port China
- T/T Credit Card
You May Like
Product Details
| Brand Name | HID | Place of Origin | Shandong, China | |
| Model Number | HID-4518P | |||
| Certification | ISO 9001 CE CCC | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12Month | Weight | 180T | |
| Dimension(L*W*H) | Customized | Power Type | Diesel | |
| Condition | New | Draught | 50 cm | |
| Dredging Depth | 14 m |
Product Description
Dredging Ship with Marine Engine
Features:
1. One-man operation. The most advanced PLC control system.
2. New highly effective cutter/wheel drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5. Completely assembled and fully tested before delivery
6. Very simple and fast assembly, afloat of onshore
7. Standard design, allowing short delivery times
8. Standard spare parts available from stock
9. Designed as standard to qualify for Coastal Waters Certificate
10. Optional equipment available
| No. | Item | Specification |
| 1 | Total Length (with ladder raised) approx | 35m |
| 2 | Length over pontoons | 25.00m |
| 3 | Breadth | 7.2m |
| 4 | Depth | 1.90m |
| 5 | Main pontoon | 18.00m × 3.50m × 1.90m |
| 6 | Side pontoon | 25.00m × 1.850m × 1.90m |
| 7 | Mean draught with full bunkers approx | 1.3m |
| 8 | Maximum standard dredging depth | 14.00m |
| 9 | Dredge pump water flow capacity | 3000m3/h |
| 10 | Standard discharge distance | 1500m |
| 11 | Cut Width @ Maximum digging depth | 35m |
| 12 | Cut Width @ Minimum digging depth | 44m |
2. Marine Diesel Engine to drive dredger pump
| Item | Main Diesel Engine |
| Manufacturers | JICHAI ENGINE |
| Model | 8190ZLCZ-R |
| Continuous Power | 720kw@1450rpm |
| Amount | 1 Set |
Marine Diesel Engine to drive hydraulic system
| Item | Main Diesel Engine |
| Manufacturers | WEICHAI |
| Model | ZCW-6160 |
| Continuous Power | 270kw@1000pm |
| Amount | 1 Set |
