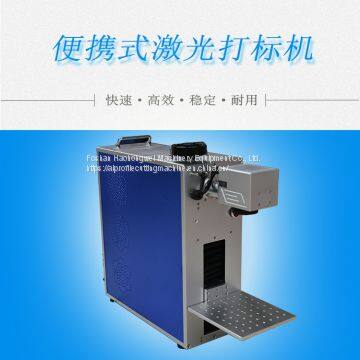

Logo Metal Laser Printing Machine Portable Fiber Laser Marking Machine

FOB Price

US$ 5000 - 22000 / Set

1 Set(Min. Order)

Port Foshan
Payment TermsT/T L/C Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Certification	CCC, CE, GS
After-sales Service Provided	No overseas service provided	Condition	New
Power(W)	20w-30w	Graphic Format Supported	AI, BMP, DST, DWG, DXF
Control Software	EZCAD	Cooling Mode	Air Cooling
CNC or Not	Yes	Laser Type	Fiber Laser
Working Accuracy	0.001mm

Product Description

Parameter：

power:	10-50W	20W	Raycus
Galvanometer:	High performance scanning galvanometer
weight:	27KG
Control interface:	USB	30W
Laser wavelength:	1064nm
repeat frequency:	20-80KHz
Marking line depth:	≤0.2mm	50W
Machine power consumption:	≤800W
Repeatability:	±0.001mm
physical dimension:	400340200	20W	IPG
cooling method:	High precision constant temperature / closed loop air cooling
electricity demand:	220V±22V / 50Hz / 12A
Marking height:	200mm	30W
Power adjustment range:	0-100%
Minimum focus spot:	0.005mm
Minimum character height:	0.15mm
Output beam quality:	M2＜2	50W
Laser module life:	＞100000小時
Standard engraving range:	110mm×110mm(customizable)
Maximum linear marking speed:	12000mm/s

Features：

Life
Fiber laser uselife is about 100000 hours.
Maintenance Free
Fiber laser is virtually Maintenance Free compared to other conventional laser, as it doesn’t have mirror to be aligned and almost no optical components, which could have been damaged.
Beam quality
The out put beam quality is exceptionally good with diffraction of m2<1.5 to 2.0 depending on the power requirement. This leads to better performance and Improves power to work ratio.

Cooling
Fiber laser system is air cooled rather water-cooled multi-channel diode bars.
Operating cost
It operates at very low electricity consumption and it normally cooled by just air-cooling, which leads to significantly lower operating cost.
Heat Dissipation
The total power generation and build in fiber laser occurs along a long length of fiber. Thus heat is dispersed over a large surface area unlike DPSSL where heat is normally localized, leading to failure.
Beam Delivery
The biggest benefit of fiber laser is that the Gain Medium is fiber & delivery is also through the fiber. This leads to less chances of failure at coupling point between gain medium and delivery when extended to the workplace.
Efficiency
The efficiency of fiber laser is up to 20%.
