14inch Dredger Suction Vessel for a Tidal River Dredging.

Model

YSCSD100

YSCSD150

YSCSD200

YSCSD250

YSCSD300

Total Power (diesel engine)

20-60kw

45-100kw

75-200kw

90-300kw

190-600kw

Output per hour(15%)

30-45m³/h

50-90 m³/h

90-120 m³/h

140-195m³/h

225-330m³/h

Water flow rate

200-300   m³/h

350-600   m³/h

600-800   m³/h

950-1300   m³/h

1500-2200  m³/h

Largest flow particle size

50mm

100mm

130mm

150mm

180mm

Pumping depth

0-20m

0-25m

0-25m

0-30m

0-30m

Lift head

20-40m

20-65m

20-65m

20-65m

20-65m

Transport distance

20-2000m

20-2000m

20-2000m

20-2000m

20-2000m

Sand discharge pipe diameter

4”100mm

6”150mm

8”200mm

10”250mm

12”300mm

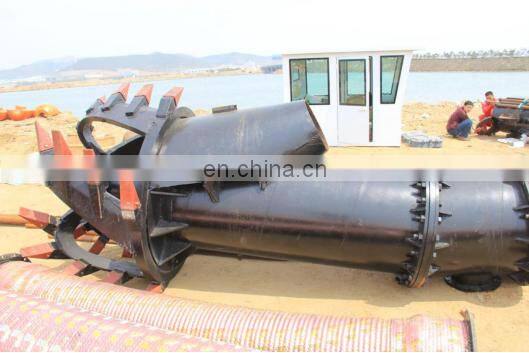

Cutter head diameter

600mm

800mm

900mm

1000mm

1100mm

Model

YSCSD350

YSCSD400

YSCSD450

YSCSD500

Total Power (diesel engine)

290-800kw

350-1000kw

450-1200kw

600-1500kw

Output per hour(15%)

330-390m³/h

420-480m³/h

480-570m³/h

540-630m³/h

Water flow rate

2200-2600

m³/h

2800-3200    m³/h

3200-3800    m³/h

3600-4200

m³/h

Largest flow particle size

200mm

220mm

240mm

260mm

Pumping depth

0-30m

0-30m

0-30m

0-30m

Lift head

20-65m

20-65m

20-65m

20-65m

Transport distance

20-2000m

20-2000m

20-2000m

20-2000m

Sand discharge pipe diameter

14”350mm

16”400mm

18”450mm

20”500mm

Cutter head diameter

1200mm

1400mm

1600mm

1800mm

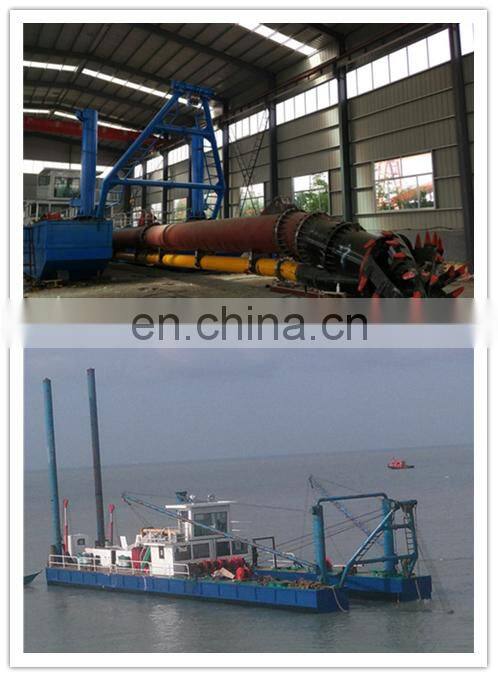

Hull

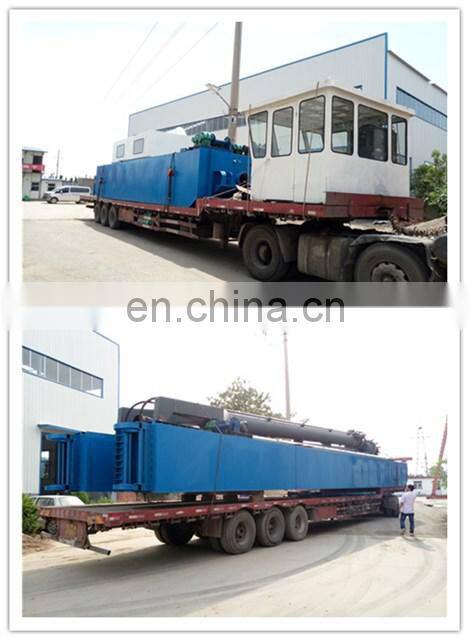

The hull uses a three-section structure for convenient transport in containers, and it is designed to facilitate transport under the principle of optimized equipment performance.

Other

The cutter suction dredger can be used with many other ancillary devices, including sand processing equipment:stone crushers, sand screening machines, and sand washing machines; and mineral processing equipment:iron separation equipment,gold mining and dressing equipment, etc.

Remark

The above technical parameters are for reference only, specific device configuration depends on the conditions of each project, customer and technical requirements.
