Raw Material 300tph Gold Mobile Trommel Screen Centrifugal Separating Machine

Introduction of Raw material 300tph gold mobile trommel screen centrifugal separating machine

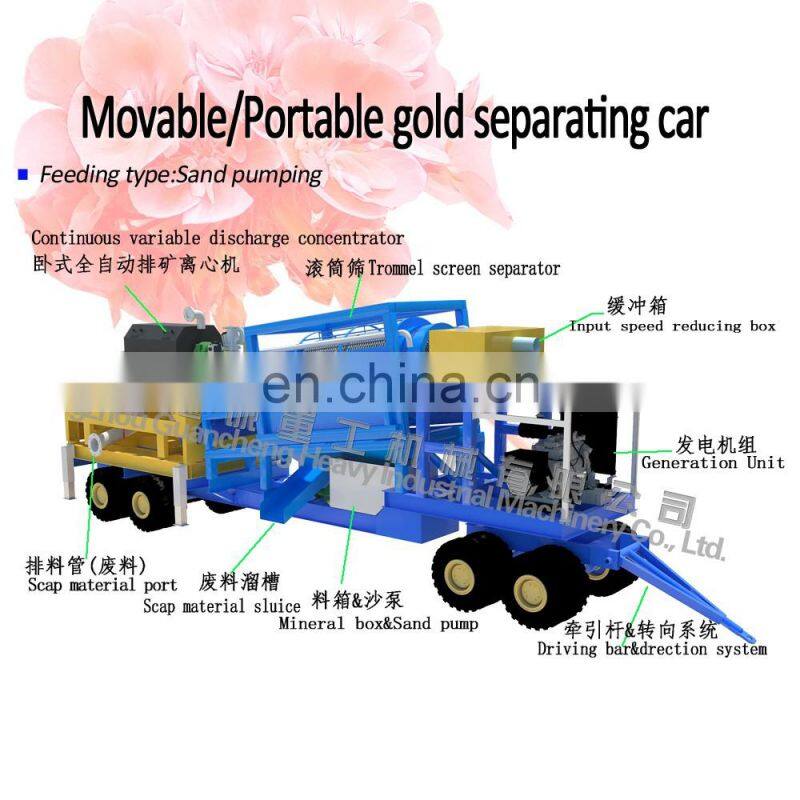

It including generator set,horizontal gold continuous variable discharge concentrator,trommel screen separator,base plate and direction wheels etc.The trommel classifier and horizontal continuous variable concentrator is the important unit in this car.
The advantage:
1.Can move easily,circled in 180 degree,only need one car can be drived to destination

2.Feeding of this type is newly by sand pump&input speed reducing box,no need of frames to hold it while cooperation with other gold machines

3.Can easliy cooperate with other gold machines,such as shaking sulice,suction dredger etc with high recovery

4.The feeding type can be easily changed to be feed hopper as customized

5.The horizontal concentrator can be used highly effient and steady,controled by PLC with a good performance in jolting surroundings.

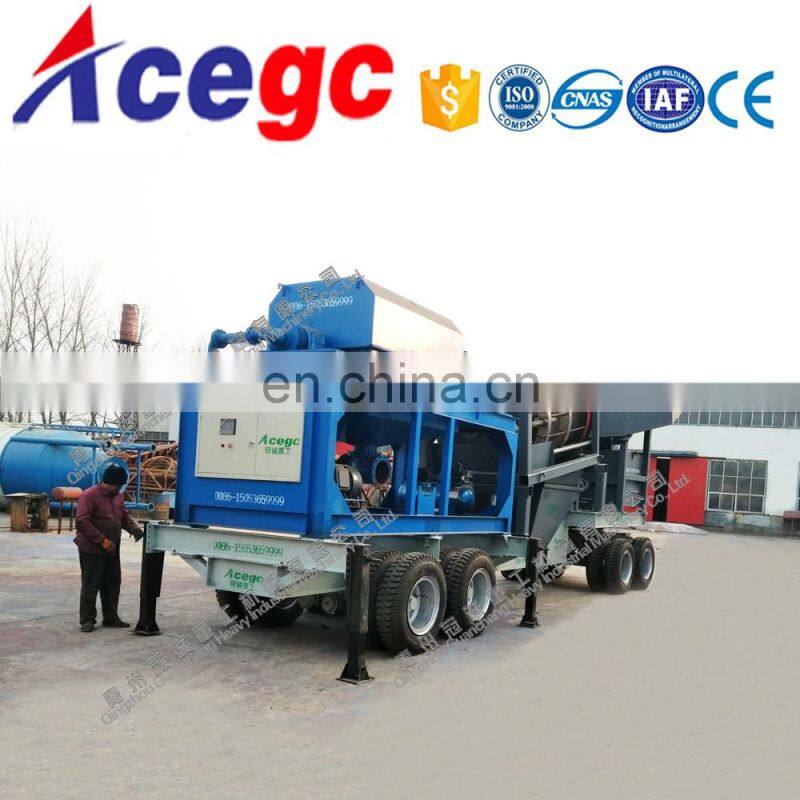

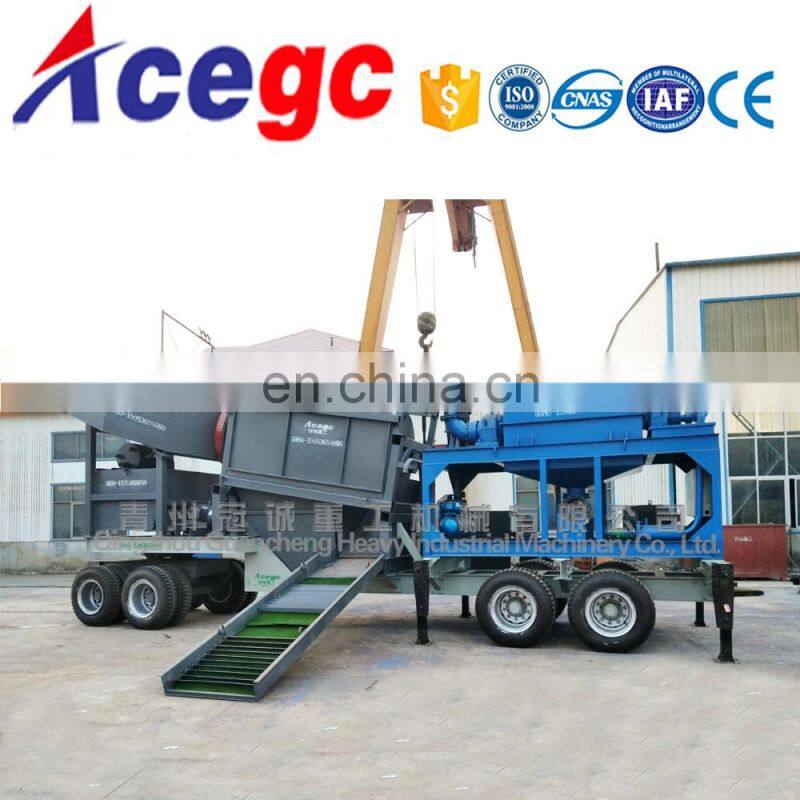

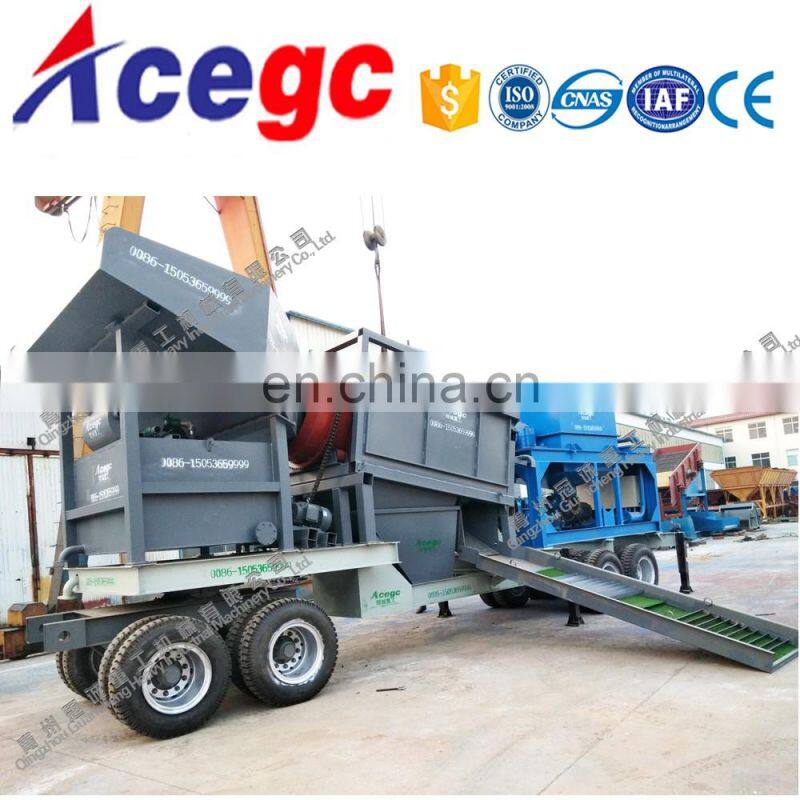

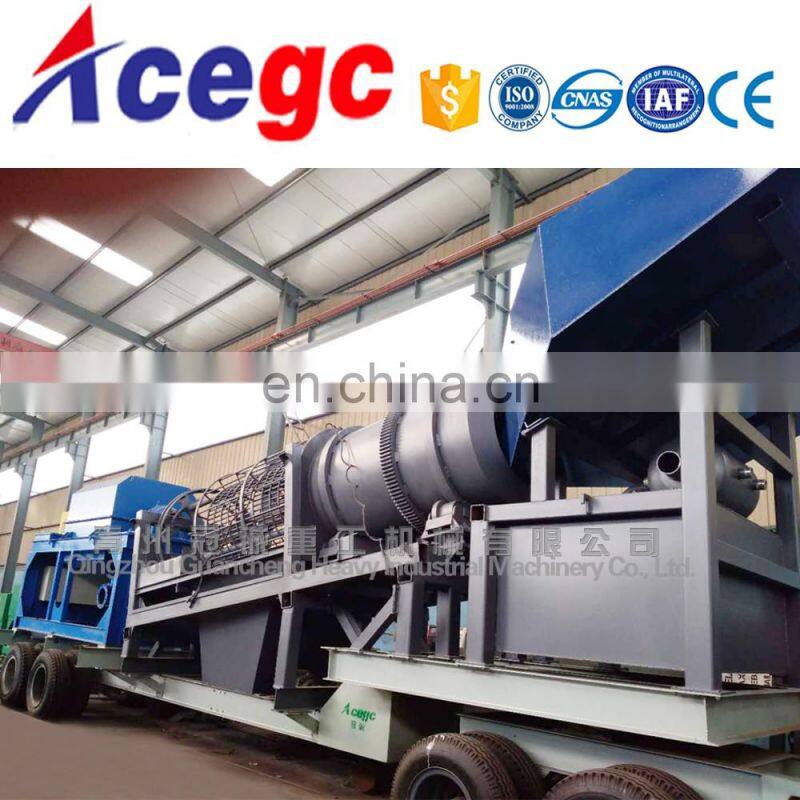

Manufacturing picture of Raw material 300tph gold mobile trommel screen centrifugal separating machine

Solution example of Raw material 300tph gold mobile trommel screen centrifugal separating machine

Process details of Raw material 300tph gold mobile trommel screen centrifugal separating machine

Raw material poured to input speed reducing box by sand pump to reduce pressure and feeding speed,then enters into the trommel screen separator to be separating into 2sizes,small and big size which is useless directly geting rid by scrap sluice.
The samll size material is discharged into horizontal continuous variable concentrator controlled by PLC through sand pump, and the concentrate automatically discharged from concentrate discharge port, scrap material is discharged into the waste area from the scrap material pipe.

Main Parts

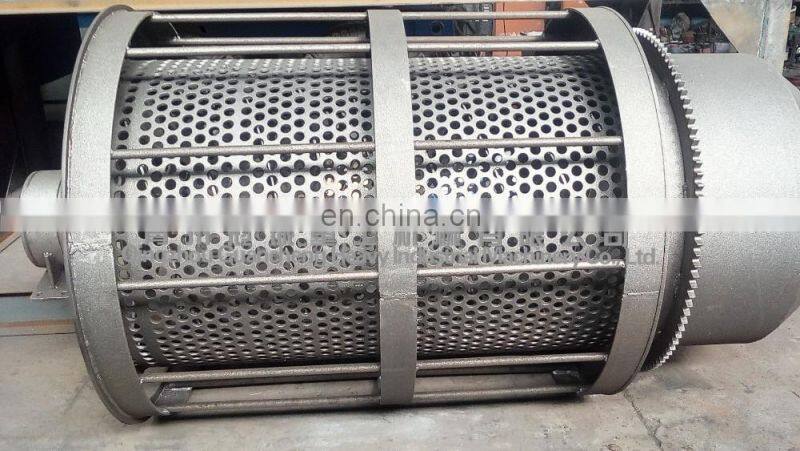

Name:The trommel screen manufacturing
Introduction
It's the picture in workshop.

Main Parts

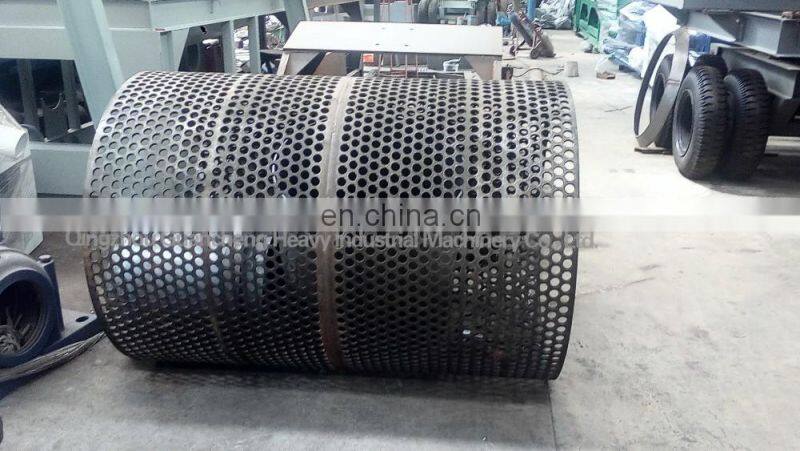

Name: The trommel screen manufacturing

Introduction
It's the picture in workshop.

Main Parts

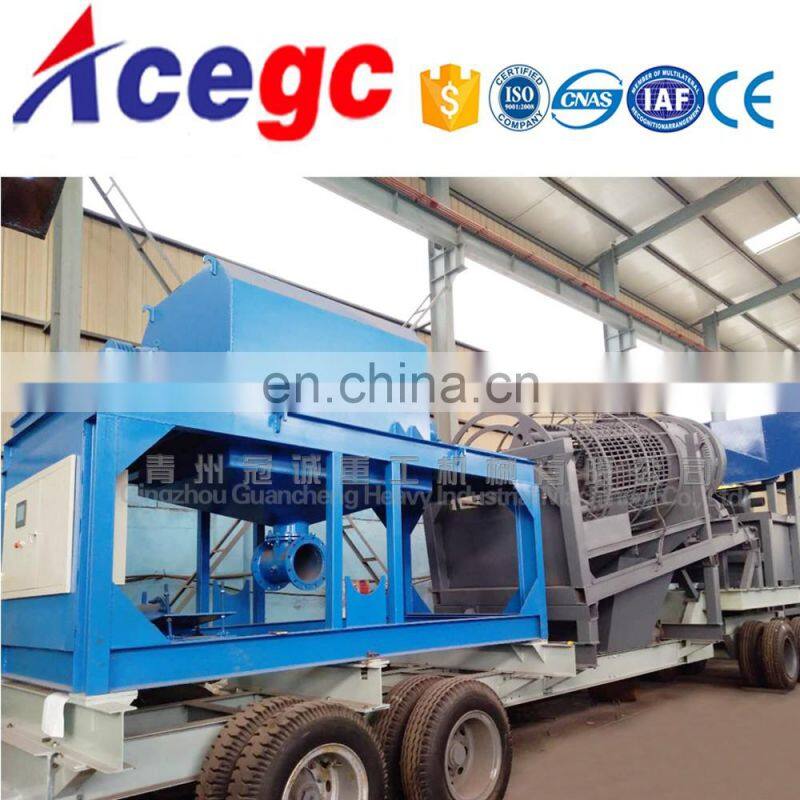

Name: The horizontal continuous variable discharge(CVD)concentrator
Introduction
It's the displaying picture in workshop.

Other Productions

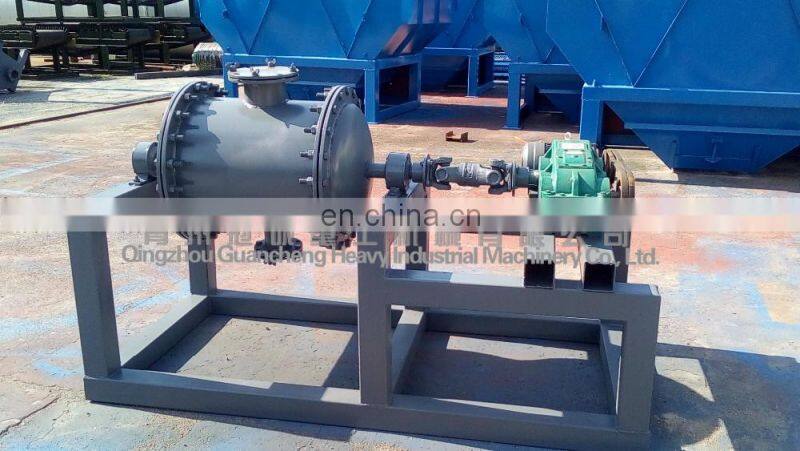

Name: The Amalgamator for pure gold
Introduction
It's the displaying picture in workshop.
