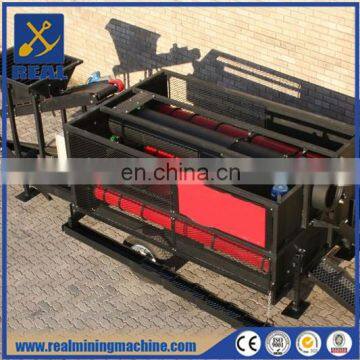

Complete and fully mobile gold recovery system HPC -10

 Mobile High Efficient Compact Gold Wash Plant

1.Features:

 1. Compact,mobile concentrator, easy to move and operate;

 2. This machine is the most advanced and efficient small scale mining equipment ;

 3. great recovery rate down to ultra-fine particles ;

 4. Can do continuous process, advanced spiral system, increase gold recovery rate, reduce      operator;

 5. Portable, simple structure, easy operation, low operating cost.

Integrated Feed Conveyor & Feed Material

•       Hopper capacity is 0.2m3 (7 cubic feet) and is fitted with a detachable, horizontal Grizzly to remove +75mm (+3'') material.

•       Feed Rate is fully controllable by a combination of Variable Speed Drive to adjust conveyor speed and bolt-on choke plate to allow for complete flexibility of material sizing.

•       Hopper can be fed manually or using a mini-excavator.

Drive system

•       Concentrator Belt and Trommel drive system: 1.5kW (2.0 HP) 3-phase Drive Motor with Reduction Gearbox.

•       Integrated Feed Conveyor drive system: 0.4kW (0.5 HP) 3-phase Drive Motor with Reduction Gearbox.

•       Each motor is controlled by a Digital Variable Frequency Controller housed within a waterproof enclosure. Note: Single-phase power supplied to the HPC-15 is supplied directly to the Variable Frequency Controllers which convert the power to 3-phase power required by the Drive Motors. The first Variable Frequency Controllers can be adjusted to set the speed of the Concentrator Belt and Scrubbing / Screening Trommel and the second Controller and be adjusted to set the Feed Rate of the Feed Conveyor.

ElectricalSupplyRequirements:

Electrical Supply must be Single Phase380V and 60Hz / 50Hz.

The motors on the HPC-15 have a combined rating of 1.9kW. When considering startup 1 “inrush” current, we recommend a minimum of 5VA or 6kW Generator (excludes power required for electrical water pump). HPC-15 is supplied with Electrical Supply cable. Note: Electrical Generator is not supplied with the HPC-15.

Water supply requirements:

The HPC-15 requires water supply of approximately 40 gallons/minute (160 liters/minute) at a pressure of approximately 45psi (310 kPa). Any electrical, petrol or diesel powered pump capable of providing this water flow may be used. The Water Supply must be connected via a 2” hose (“lay-flat” or discharge hose) clamped onto the inlet nipple on the Water Manifold. Note: Water Pump and connection hose are not supplied with the HPC-15.

Feed material:

Maximum: 6” (150 mm) minus material. Recommended: 3” (75mm) minus.

Trommel

Scrubbing & Screening Trommel is 2.8m long with 0.4m diameter and 1.65 m 2-stage Scrubber. Screen is 8mm.

Dimensions:

Length 5.63m, Width 1.76m, Height 1.80m, Weight: 1,700 kg

Trailer:

Single-axle trailer with Pintle-hitch (40mm /1.6’’ ID) - Ball Hitch available -  to be specified on order.

Manning:

1 equipment operator required.

Note: for safety reasons, it is always best to have at least 2 people present when operating machinery.

Simple Packaging gold wash plant& Trommel screen .

Packaging the trommel screen spare parts like screen siece by wooden boxes protect damage and loss during transportation ;

Delivery machine by 20-foot & 40-foot container according to trommel gold wash plant total size ;

Be responsible contact with shipping agent arrange machine shipping ,client can also contact shipping agent by himself to delivery our gold wash plant ;

Usually,less than USD30000,T/T100% to reduce bank charge before producing.

More than USD30000,T/T30%as deposit, T/T70% before shipping.

We take pictures of the finished products and send them to the clients before delivery.

 If there have any needs,pls feel free to contact us.
