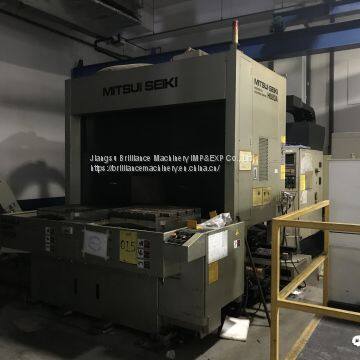

Mitsui Seiki HU80A F31iM horizontal machining center
- Shanghai, Ningbo or Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
Product Details
| Brand Name | Seiki | Place of Origin | China | |
| Model Number | HU80A | Type | Other, Turning Center | |
| After-sales Service Provided | No overseas service provided | Year | 2007 | |
| Condition | Used | Power(W) | 30kw |
Product Description
Specification:
Date 2007 Jan
Standard features
1. Working capacity
Table logitudinal stroke (X) 1200mm
Spindle head vertical stroke (Y) 950mm
Table cross stroke (Z) 900mm
Distance from table surface to spindle axis 150-1100mm
Distance from spindle nose to table center 150-1050mm
2. Table size 800*800mm
B axis table index 0.001 deg.(36000 position)
Table max load 1600kg
3. Spindle taper ISO 7.24 BT50
Spindle diameter 100mm
Spindle speed 20-6000rpm
Spindle motor 18.5/15kw
Spindle torque Max 600Nm / 30 min rating
4. Rapid traverse 24000mm/min
Cutting feed 0.1-10000mm/min
5. Tool storage 60 tools
6. Number of pallet 2 (800*800mm)
