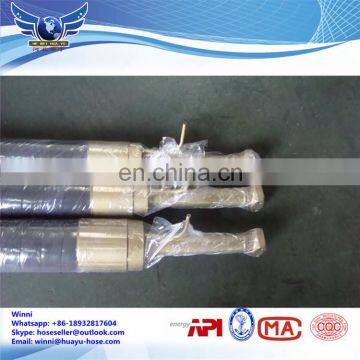

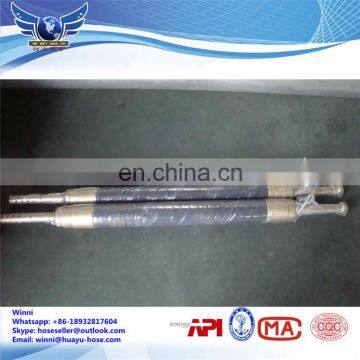

Inflatable Water Injection Borehole Packer for Coal Mine

Use: Coal injection, dust-fall, coal pressure reduction, coal-crack, methane drainage, etc.

Operation Method and Notes

1. It is very simple and convenient to use the device. It only needs to connect the device with the watercourse on the operation field, put the device into the drill hole under certain pressure, the hose will expand to come to purpose of hole sealing and coal breaking.

2. The device can be used for several times repeatedly. To unload pressure after water injection, it can restore to its original state, and then take out the hole device.

3. Forbiding to insert and retrieve the hole device with pressure.

4.Allow no person in front of the working device.

Single packer and double packer are both available. And we could custom as you like.

We also provide the inflatable packer hose.

If you need more details, please contact Winni.

 Please see the specification as following:

Inflatable packers will be well packaged before they are delivered to customers, which can prevent them from being damaged from transportation.

Plastic boxes, wooden package or packaged by clear plastic wraps.

We could design the package according to your special requirement.

Please see the packaging pictures for your reference:

clear plastic wraps

 plastic baskets:

 wooden package:

Shipping:

Our company has service department and we can offer good service for our client.

Our complete sales staff ensures that  you receive a quality packer at the right price.Pressure testing of packer available on request . And we will package well and delivery them to the specified destination place. If you need other products like rubber hose and fittings,we also can provide you. If you have any question in the use process. We will have someone to communicate with you until we deal it well.

Let‘s see one of our customers' feedback:

HebeiHuayu Special Rubber Co.,Ltd. is located in the west of WenChengIndustrial Zone, Jing County, Hengshui City, Hebei, China. The firm possesses the most advantageous geographic location with convenient traffic conditions, which is quite close to the Beijing-Fuzhou Expressway and Beijing-Shanghai Railway. The company is an integrated and innovative enterprise combining R&D, production and sales of various rubber series products. The company covers an area of 26000 square meters and construction area of 6000 square meters, the fixed asset is 50 million Yuan with 85 working staffs,the factory has a fully complete set of advanced analysis and detecting devices, such as winding machine, braiding machine, banburymixer,vulcanizingmachine with totally 60 sets of equipment

Hebei Huayu Special Rubber Co., Ltd. is the professional manufacturer of inflatable packer products in China. We pay special attention to research and development, which can help us manufacture high quality and advanced products. And it also helps us win high reputation among our customers. This is why we have established long-term cooperation relationship with many large companies.

Our inflatable packer products have five kinds: double inflatable packers, consolidation coal hole packer, water injection hole packer, gas drainage hole packer and water use of bottom hole circulation grouting plug. The first three are mainly used in mine construction and production. And the last one is mainly used in water conservancy projects.

A simple introduction of hole packers:

Water use of bottom hole circulation grouting plug is widely used in hydropower station, reservoir engineering curtain, consolidation, backfill, chemical grouting, geological exploration water pressure testing and water shutoff in drilling. And it is also used in the hole plugging and water shutoff of coal bed, gas testing and discharge. It can be used repeatedly for 30 - 50 times.

Water use of bottom hole circulation grouting plug has three holes: the first one is used to inject water or air into it to make the rubber hose inflated, the second one is used to inject cement and the third one is used to discharge the water or gas produced in the cement injection process.

Water injection hole packer is used to inject water to coal, which can reduce the gas content and dust. As a result, it can improve the safety coefficient of mine construction and production greatly. It is composed of high pressure inflation rubber hose, safety value and rapid-acting coupling. And it can be used repeatedly for 30 - 50 times.

Gas drainage hole packer has two holes: one is used to inject water to the coal bed, and another is used to discharge gas. So it has all the functions of water injection hole packer, such as reducing gas content, improving workers operation conditions, preventing coal auto-ignition and lowering cost. Besides, it can be used for gas drainage.

Other main products: drilling hose, concrete pump hose,dredge hose, suction&discharge hose, thread protector and hammer union. More information please visit our website or contact Winni.

Our factory:

Are you a manufacturer?

Yes, we are.

What's the MOQ?

one piece.

How do you regarding your product quality?

All of our products are under strict inspection before delivery. You can rest assured quality guaranteed absolutely. All our products are made from raw materials just because we want to make all our customers feel safe and relieved to use our products. And we hope establish a good and long-term business relationshipwith our customer.

Can you give me your quotation sheet?

Yes, I'll e-mail to you.

How to order?

Please contact Winni.
