WECO Air o Grip Union

                                                         WECO air o grip union

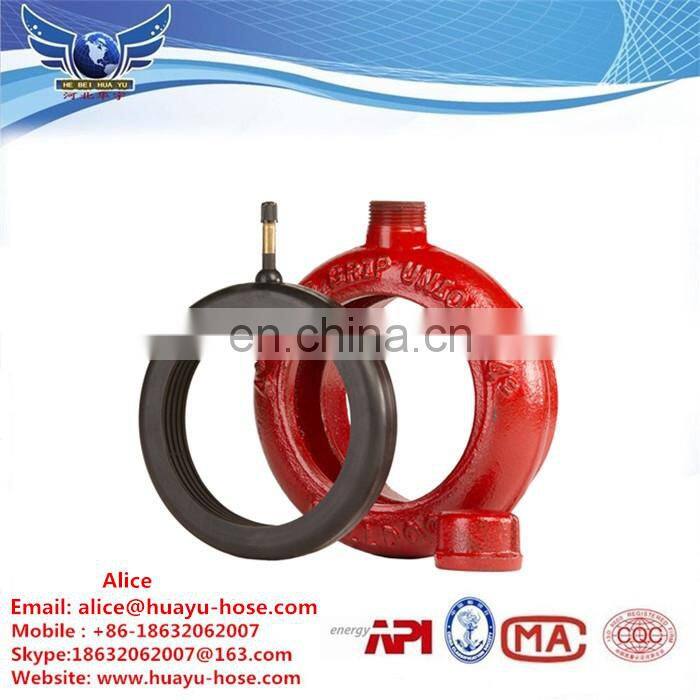

    Air grip union have steel shell and pneumatic tires two parts .Pneumatic tire is made from the mixture of natural rubber and nitrile and the most steel shells are made from high quality carbon steel. It’s widely applied in drilling fluid pipe lines with low pressure ,large pipe size , big pipe misalignment , frequent installation and uninstall .Especially , in connecting mud tanks, mud suction an d return lines in solid control system .This union easy installation and uninstall , big pipe misalignment not influence the pipe line connect and seal, can greatly improve work efficiency.

  Feature :

u Shot of rig air inflates tube to seal around pipe

u Easy make up without close alignment

u No nuts, bolts, or wrenches required

 The details of air grip union :

u Medium available : mud, oil, water

u Size  :  4’’  6’’  8’’  10’’  12’’  14’’  16’’

u Medium temperature  : -45°C ~50°C

u Material : steel shell for high quality carbon steel,

             pneumatic tires for the mixture of natural rubber

u Reconversion time when deflated : 1-3 seconds

u Medium pressure : 0.4Mpa

u Structure :  steel shell and pneumatic tires

 Product Specifications :

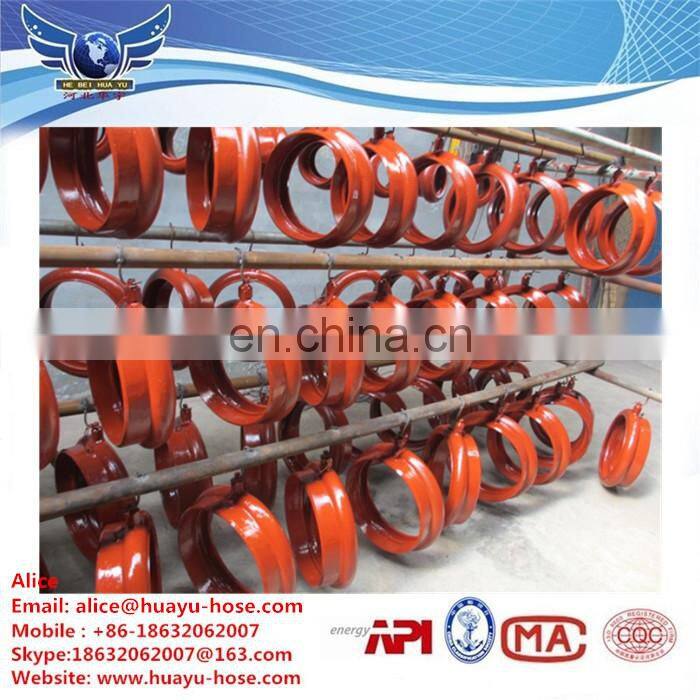

Steel Shell

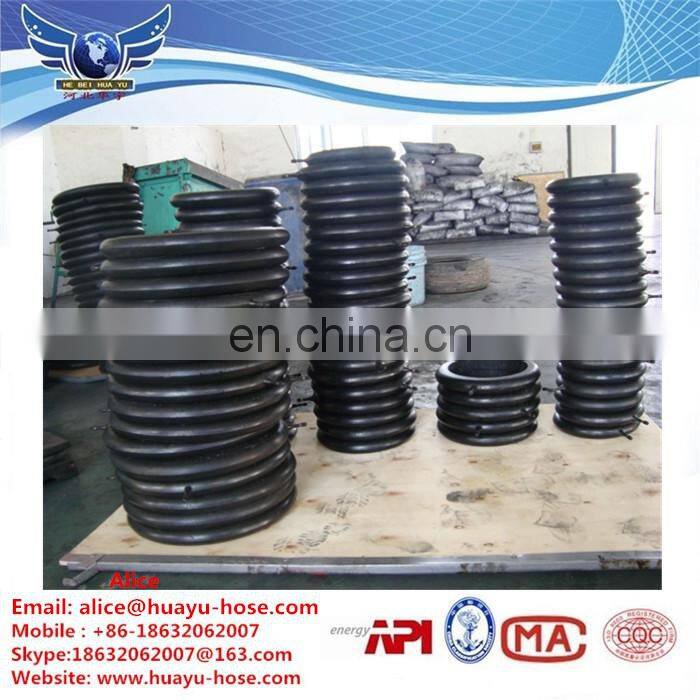

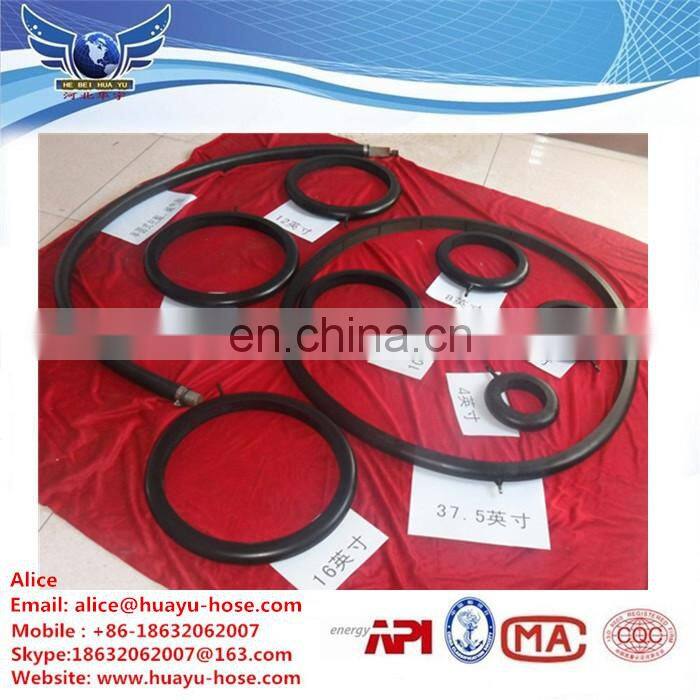

Pneumatic Tires

Hebei Huayu Special Rubber Co., Ltd. We have many years experience to produce the unions also have advanced equipment and skilled workers to control the product quality and we have been focusing on research and development the best products in recent years . With our best service attitude and the good products ,we have established long term cooperation relationship with many large companies and we have exported our union products to many countries.

We are the leading manufacturer of complete union products, such as fig 100 hammer union , fig 200 hammer union ,fig 206 hammer union ,fig 207hammer union , fig 400 hammer union , fig 602 hammer union ,fig 1002 hammer union , fig 1003 hammer union , fig 1502 hammer union . They are used pipe line and high pressure equipment connection ,they have different cold working pressure and structure but our union are easy installation and uninstall .
