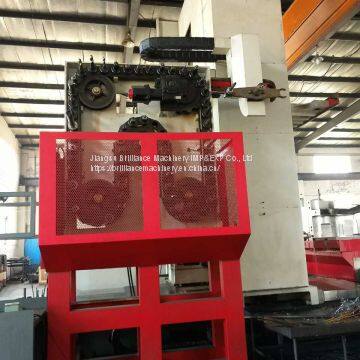

Used Taiwan Microcut HBM-6T boring-mill machin
- Shanghai, Ningbo or Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
Product Details
| Brand Name | Microcut | Place of Origin | China | |
| Model Number | HBM-6T | Type | Other, Turning Center | |
| After-sales Service Provided | No overseas service provided | Weight | 55000kg | |
| Condition | Used |
Product Description
Specification:
Table size 2500*2500mm
Table height 1400
T shaped groove size (w/pitch/no) 28H8*160*15mm
Table load 20t(standard) / 30t(optional)
Table index 0.01 degree
Rotary Table position accurancy sec.15
Rotary Table repeat accurancy sec.4
Rotary Table decoder accurancy sec.±5
Travel distance
X axis (standard) 4500mm
X axis (optional) 5500mm
Y axis 3200mm
Z axis (standard) 2000mm
W1 axis 700mm
Distance between spindle nose and table center 250-2950mm
Spindle Taper ISO50, gear
Spindle speed 35-3000rpm
System Fanuc
Main motor power 37/45(standard);22/30(optional)
Spindle torque (continuous / 30mins) 1942/2362(standarad); 1976/3002(optional)
Variation range of spindle speed: 2
Bore axis (W) 130mm
Spindle bearing inner diameter 170mm
Feeding rate (X/Y/Z/W) 10/10/10/8m/min
Cutting feed rate(X/Y/Z/W) 10/10/10/5m/min
B axis cutting feed rate 1.5rpm
ATC (optional)
Tool capacity 60
Outline dimension
Length 9055mm (Z2000)
Width 8500(X4500) / 9720(X5500)
Height 8115mm
Machine weight 55000kg
