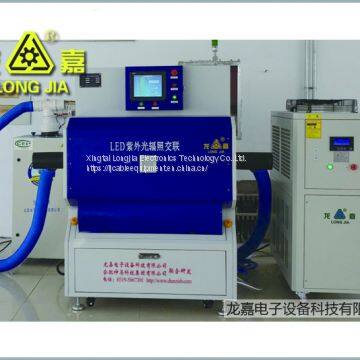

LED-UV2 type UV-light irradiation cross-linked cable equipment

LED-UV2 type UV-light irradiation cross-linked cable equipment

UV LED devices are the most advanced UV radiation sources in the world, characterized by extremely high energy efficiency (about 30%), extremely high selectivity of effective wavelength (half-power wavelength broadband: 5nm), extremely long service life (40,000 hours), low infrared heat and no ozone, making them more suitable for the cross-linking and solidity of cross-linked polyolefin and other materials.

LED-UV type UV LED irradiation polyolefin cross-linked equipment adopts a circular cavity tunnel structure, installs a self-developed UV LED light source and forms a tunnel to the central area, whose radiant power can be infinitely set within the scope of 0~100%.

Structural features of LED-UV irradiation cross-linked equipment:

It pneumatically turns to enable the tunnel structure, which is easy for operation, cleaning and coiling;

It uses the intelligent touch-type human-computer interface to monitor data, and the power of operating buttons is set on the touch screen interface;

One push function co-exists with separate start;

It uses refrigerating fluid for cooling, and uses anti-freezing solution dedicated for automobiles as cycling medium;

It is connected to an external fume removal unit to exhaust fume to the outdoor through the air flue.

Performance indicators of LED-UV2 type irradiation cross-linked equipment
