APW CNC Waterjet Cutting Machine,high Speed

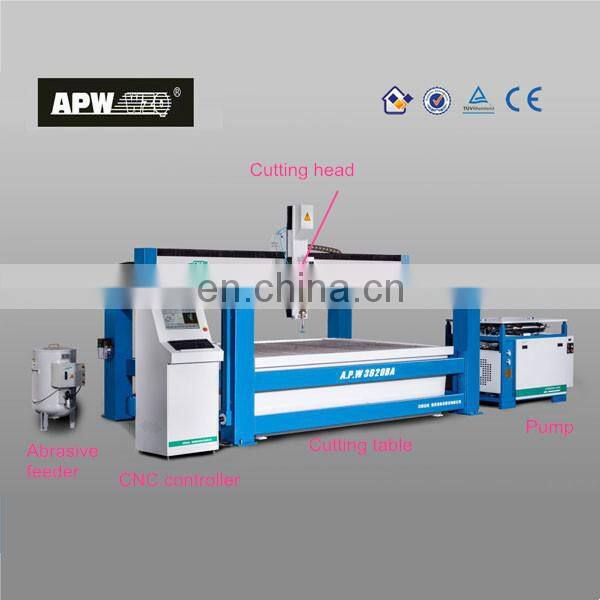

There are four parts in our waterjet cutting machine. They are intensifier pump; cutting table; CNC controller and Auto abrasive feeder.

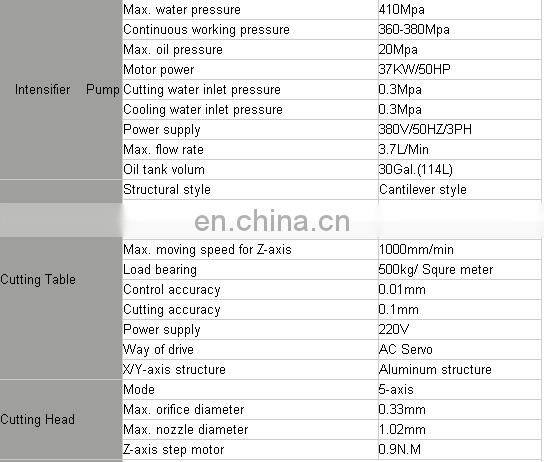

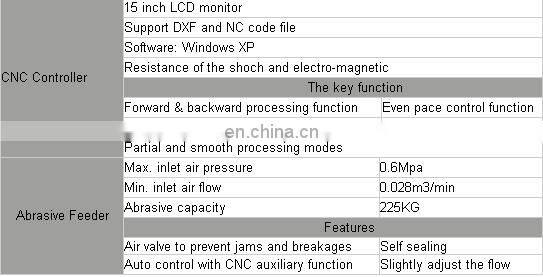

The technical parameters for cnc waterjet cutting machine showing in the following chart:

All-Powerful Science & Technology Stock Co.,Ltd, a Sino-US joint venture, which was established at 2001 and located in the Export Processing Zone of Liaoning Provence. APW is the largest new high-tech enterprise integrated the research and development of ultra-high pressure water jet cutting machine, and an important base for developing high-end ultra-high pressure water jet industry of China.

Our mission is to help our customers solve their manufacturing challenges and achieve their highest level of productivity, precision and accuracy.

Waterjet cutting machine can cut almost any materials. Pure water jets can quickly and accurately cut soft materials such as rubber, foam and other gasket material. Abrasive water jets can cut almost any other material over a very wide range of thickness:

The features of waterjet cutting

1. It does not cause heat effect or deformation or tiny cracks

2. It can cut any complex and flat figures

3. Narrow kerfs

4. Smooth incision

5. Minimize dust and toxic fumes, provide healthier working environment

6. It can be adjusted easily and quickly by the designs and materials

7. Low processing cost in unit time.

8. Components are avoid water permeate the composite materials

9. Drilling holes to avoid water permeate the composite materials

10 Reduce setting time and fixture cost

The cutting speed for CNC water jet cutting machine

The cutting speed of waterjet varies depending on the material, thickness, desired cut quality, water pressure and the machine itself configuration, Generally for APW waterjet, you could find the following speed just for your reference.

CNC waterjet cutting machine have got the consistant high praise from the customer at home and abroad during the 15 years development, there are many successful stories related to APW waterjet cutting machine, we are looking forward to seeing you in our picture wall.

1. What are the benefits of purchasing a waterjet comparing CNC plasma or a laser ?

Versatility
Abrasive waterjet can cut almost anything – from metal to stone to glass to composites to ceramic.
Laser and plasma cut with heat, and so can only cut materials that have the right thermal properties. Metal is almost always the target material in industry for these heat-based processes. And mild steel is almost always the metal that is cut by them. In addition, plasma can only cut things that are electrically conductive. To optimize laser and plasma cutting, change to gasses is required. No change to waterjet parameters, except speed, is usually required for any material.
Thickness
Waterjet can cut very thin and up to 150mm (sometimes more) of any metal, glass, stone, composite, etc.
Laser cuts very thin and up to 20mm.
Plasma cuts from about 25mm up to 30mm.
Edge finish
Nothing cut by a plasma or laser will be as high of quality of an edge as a waterjet. We leave behind a smooth edge. No heat affected zones or mechanical stresses are introduced. The plasma and laser cut with heat (we cut with supersonic erosion). Plasma and laser therefore will leave behind a heat affected zones, mechanical stresses, and especially with plasma, dross 'drips' on the edge.

Please contact us for more information of our water jet cutting machine.

2. What kind of material does your machine can cut?

There are plenty materials our water jet machine can cut , such as metal stone glass foam plastic rubber, ect.
4-axis was professionally designed for mable pattern and medallion.
5-axis was professionally designed for 3D materials.

3. What's your machine's max.cutting thickness?

The max.cutting thickness of our waterjet depends on the materials you cut .
Generally speaking, the thickness of our water jet cutting machine can be up to 150mm, virtually Z constraint is the only limit to thickness.

More information about APW waterjet cutting machine price pls contact us at hotline: +86-024-24699053
