DM-1321 Glass Abnormity Edge Grinding Machine

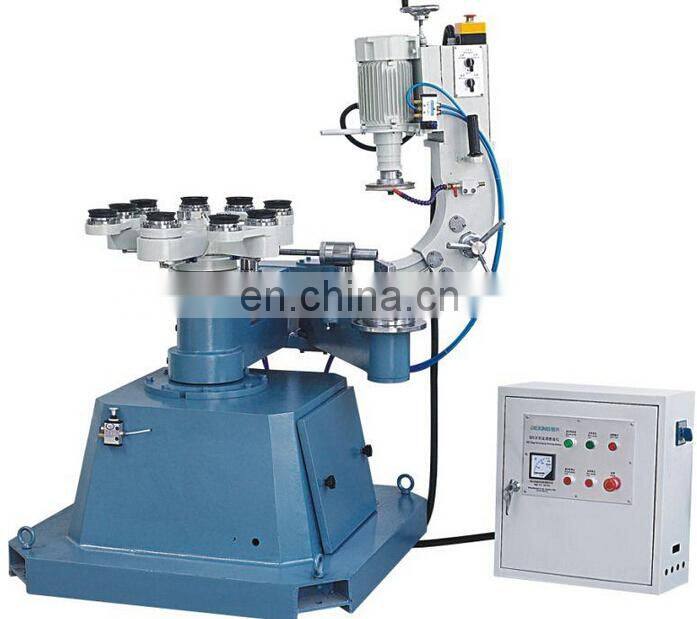

                                                                   DM-1321 Glass abnormity edge grinding machine

Glass Shaped Machine DM-1321 is suitable for processing the peripheral edge (such as Pencil Edge, O.G. Edge, Flat Edge with arise and other kinds of edge) and bevel of different size and thickness glass. Adopt vacuum system to adsorb glass on the working table to be processed. Use a mechanical step-less reducer to drive the working table or the Independent Sucking Disc rotating so as to grind different size range glass. The whole Working Table rotating is for grinding turning diameter 700mm-2100mm shape glass and the Independent Sucking Disc rotating independently is for grinding turning diameter 100mm-700mm shape glass. The rotating speed of the working table or the Independent Sucking Disc is step-less adjustable so as to meet grinding requirement of different processing glass size, thickness or edge state. Adopt air cylinder to grind simple shape glass semi-automatically. Three wheels for peripheral edge rough grinding, finished grinding and polishing can be equipped in the Grinding Unit at the same time. The grinding unit equips cup shape wheel for bevel grinding.

Specification

(1). Power source: 3-Phase, 380V/220V/415V, 50Hz/60Hz as required

(2). Total power: 2.9kw

(3). Glass processing range:

Glass thickness: 3- 30mm

Glass turning diameter for peripheral edge grinding: 100-2100mm

Glass turning diameter for bevel grinding: 400-2100mm

Bevel Angle: 0°- 20°

Maximum bevel width: 30mm

(4). Height of working table: 1000mm

(5). Working Table and Independent Sucking Disc rotating speed range (by changing V-Belt and adjusting Mechanical Step-less Reducer):

Working Table rotating speed range: 0.5rpm to 6. 5rpm

Independent Sucking Disc rotating speed range: 0.9-12rpm

Caution: No turning the hand-wheel of Mechanical Step-less reducer when Working Table or Independent Sucking Disc stop rotation!

(6). Total weight: 1000kg

(7). Wheel specification: Peripheral or cup-shape wheel, inner diameter is 22mm. Peripheral wheels are for peripheral edge (such as pencil edge, O.G. edge and flat edge with arrises etc.) grinding, outer diameter is 100mm or 150mm or 175mm. Cup-shape wheels are for bevel grinding, outer diameter is 150mm.

(8). Grinding Motor Specification: 1.8/1.3kw, 2/4 Pole

(9).Water pump: AC motor 0.25kw

A.Terms: Freight On Board (FOB Qingdao)
B. Delivery Time: During 7 working Days After We Receive Your First Payment.
C. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the
machine.

D. Guarantee period: 1 year from the date of customer receiving the machines.

                                   24hour technical support by email or calling.

                                    User-friendly english manual for machine using and maintaining.

Contact ----- Ms Ceci Liu

Mobile:0086-15098968538

Trade manager: cn1000395095

Skype: missliu106

We can do as your requirement . Welcome to visit .
