Home > Products > Other Glass Processing Machine > IG Rotating Table

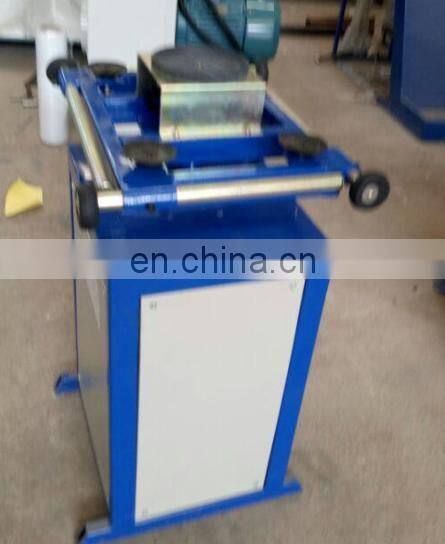

IG Rotating Table
- qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | CNSUNNY | Place of Origin | Shandong, China | |
| Model Number | HZT02 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 24 month | |
| Weight | 100kgs | Dimension(L*W*H) | 870X850X970mm | |
| Condition | New | Voltage | 220v 50hz 1p | |
| Power(W) | 0.12KW | Machine Type | Insulating Glass Production Line |
Product Description
Insulating Glass Rotating coating machine is a working table that is used to spread two-component glue or structure glue over the aluminum groove.
Description
Insulating Glass Rotating Table is a working table that is used to spread two-component glue or structure glue over the aluminum groove type hollow glass or curtain wall glass in the process of production. Our company mainly provides HZT02 and HZT03 rotary sealant coating tables. The operator can control the glass rising, falling and rotating by foot switch without manual support to accomplish the glass edge-sealing work. Our rotary coating machines are easy to operate and efficient to use.
Features
1. The supporting arm can be adjusted based on glass dimension.
2. Caster equipped on the surface of rotary sealant coating table makes glass move easily.
3. Operators are able to operate the foot switch for control the lifting and rotating of glass
about the 0 to 90 degree and 180 to 360 degree rotation so as to complete sealing of glass edge.
4. Parker rotary coating machine adopts PLC control for continuous rotation or sub step rotation.
5. The support device is equipped with vacuum chuck. So our rotary sealant coating tables do not need manual holding on spreading.
Technical Parameters
1. HZT03 Rotary Coating Machine/ Insulating Glass Rotating Table
| Voltage | 220 V 50 Hz |
| Power | 0.1 kW |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 80 L/min |
| Glass Dimension | Max. 2000 × 2000 mm |
| Rotation Speed | 0 to 3.5 r/min |
| Overall Dimension | 970 mm × 870 mm × 850 mm |
| Weight | 200 kg |
HZT02 Rotary Sealant Coating Table/ Insulating Glass Rotating Table
| Voltage | 220V 50 Hz |
| Power | 0.2 kW |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 80 L/min |
| Glass Dimension | Max. 1500 × 1500 mm |
| Rotation Speed | 0 to 4.3 r/min |
| Overall Dimension | 700 mm × 450 mm × 900 mm |
| Weight | 75 kg |
Contact Information:
Ms Awen Yin
+86 15063343341
wechat: awenyin
