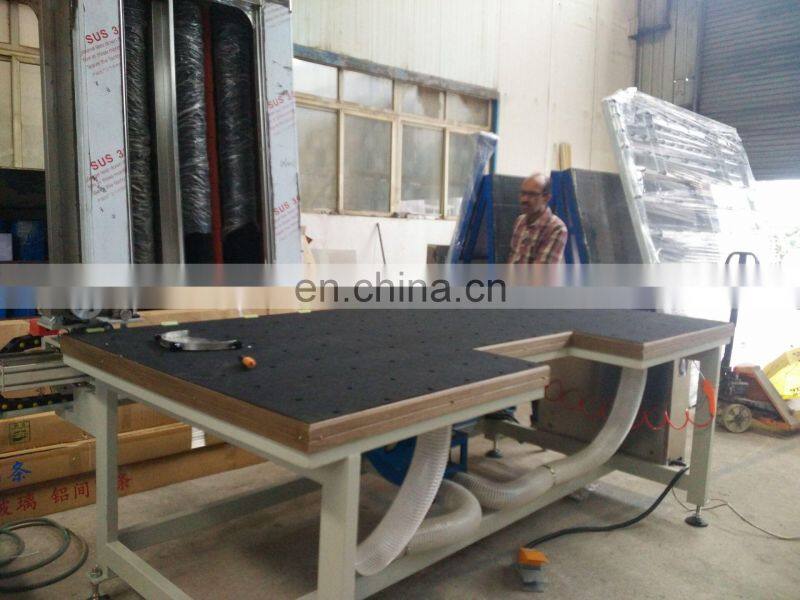

MED-02 Edge Stripper for Low-e Glass/ Insulating Glass Machine

lass edging machine-MED-02 Edge Stripper For Low-E Glass

1. Features

a. Stable performance with DELIXI contactor, push-button switch and pilot light.
b. Two abrasive belts are used to process two glass edges above and below.
c. Changing the abrasive belt by turning the hand wheel in the back so it is easy to operate and saving effort.

2. Technical Parameter:

Glass size(max):      1500x2000mm

Glass size(min):       200x200mm

Glass thickness:       3-19mm

Noise(max):              less than 40DB

Working direction:    L R,R L

Power source:         380V 3PH 50Hz/60Hz

Total Power:           1.21KW

Air Pressure:           5kgf/cm2

Grinding Wheel:      can be adjust thickness and width of wheel

Control system:         Select swith

Head wheel motor:     0.4KW

Belt conveyor:           0.06KW

Blower:                      0.75KW

MED-03 Edge Delete Machine for low-e glass

Double-head Edge Delete Machine

Machine Details:

Competitive price with good quality machine

Telex Transfer(T/T), 30% be paid after confirming the order and the balance is effected while delivering the goods.
